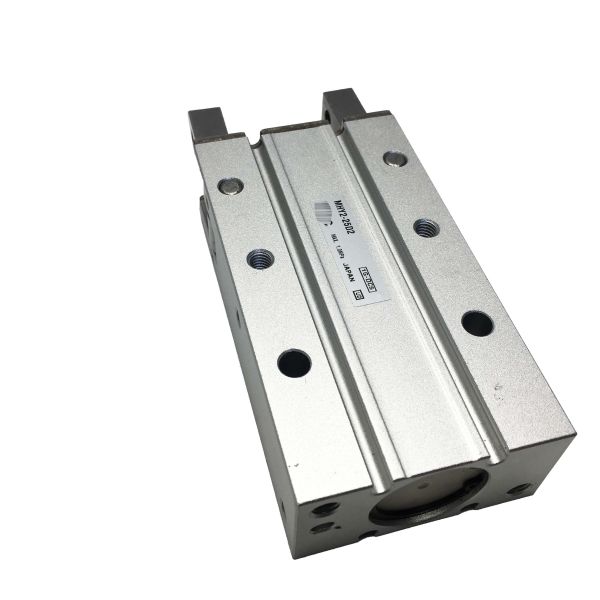

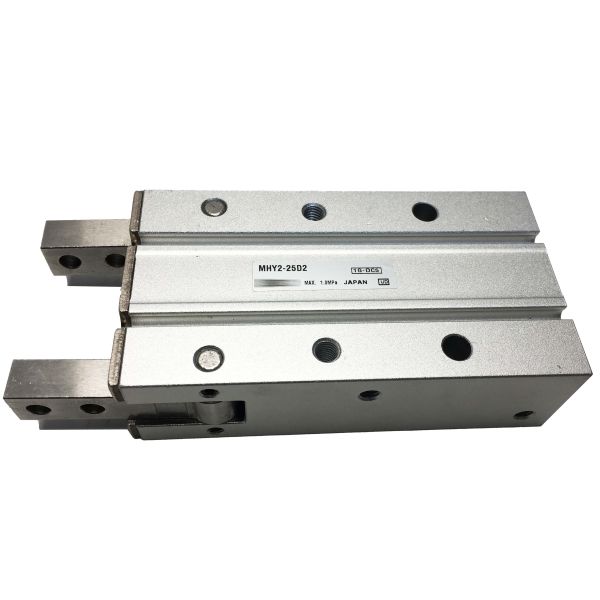

25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV
Specifications
Brand Name :
SMC
Model Number :
MHY2-25D2-M9BAV
Place of Origin :
Japan
MOQ :
1pcs
Price :
USD 60-100 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 pcs per day
Delivery Time :
2 days
Packaging Details :
Original packaging
Model :
MHY2-25D2-M9BAV
Type :
Pneumatic Finger Cylinder
Bore Size :
25 mm
Stroke :
2 mm
Operating Pressure :
0.15–0.7 MPa
Gripping Force :
22–32 N
Finger Opening Angle :
Approx. 8°–15°
Operating Temperature :
0–60°C
Pneumatic Connection :
M5 ports
Warranty :
12 Months
Description

MHY2-25D2-M9BAV SMC Finger Cylinder — High-Precision Pneumatic Gripper

Brand: SMC

The MHY2 is a compact 180-degree angular gripper. Its size and mass allow for small, lightweight tooling, while delivering large gripping forces via piston/cam design. The MHY2 gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper. Precision reference points on body and fingers are standard.

Engineered for durability and accuracy, this finger cylinder ensures consistent performance in high-speed operations while minimizing downtime.

Configured Specifications

Parameter Specification
Type [Main Body] Main body
Gripping Methods Pinch, Swing Type
Number of Fingers 2 pcs.
Main Body Shape Square Shape
Operation Method Double Acting Type
Finger Opening Angle (A1) 180°
Finger Closing Angle (A2) −3°
Gripping Force (at 0.5 MPa, closing) 75 N
Environment / Applications Standard
Additional Functions Not Provided
Stroke Adjustment Mechanism Not Provided
Operating Pressure Range —

25mm Compact SMC Pneumatic Cylinder Finger Gripper MHY2-25D2-M9BAV

Core Product Features

Precision Gripping

Dual fingers ensure secure and consistent object handling, suitable for small parts and delicate components.

Compact and Lightweight

Space-saving design allows easy integration into robotic arms and automated assembly lines.

Adjustable Stroke & Force

Customizable stroke and gripping force for versatile industrial applications.

Durable Construction

Aluminum body with stainless steel fingers provides high wear resistance and long service life.

Easy Installation

Standard mounting holes and M5 pneumatic ports enable quick integration with existing systems.
