TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
TCL-05SV3 Mitsubishi Terminal Cover TCL05SV2 Genuine New
Specifications
Brand Name :
Mitsubishi
Model Number :
TCL-05SV3
Certification :
CE ROHS
Place of Origin :
Japan
MOQ :
1
Price :
USD 5-15 / piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs per day
Delivery Time :
2 days
Packaging Details :
Original packaging
Part Number :
TCL-05SV3
Brand :
Mitsubishi Electric
Product Type :
Large Terminal Cover
Series :
TC-L
Frame Width :
W75
Poles :
3-pole
Warranty :
One year
Condition :
New / Used
Description

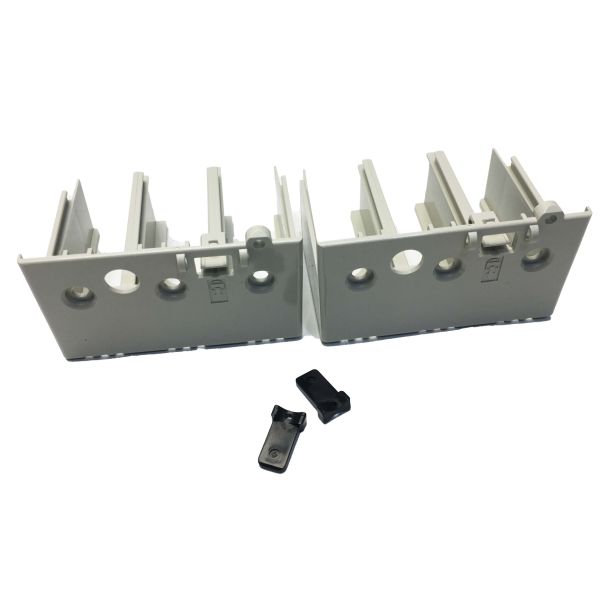

Mitsubishi TCL-05SV3 Large Terminal Cover for WS-V Series MCCB
Product Overview

The Mitsubishi TCL-05SV3 is a large terminal cover designed for WS-V series moulded case circuit breakers, compatible with both 2-pole and 3-pole configurations in the 30A-63A frame range. Each package includes two covers and two sealing plates for complete terminal protection.

Key Features
  • Compatible with WS-V Series MCCBs, 30A-63A frame
  • Works with both 2-pole and 3-pole configurations
  • Tool-free single-action snap-fit installation
  • Provides physical protection for live terminals
  • Includes 2 covers and 2 sealing plates per package
  • White insulating plastic construction
Technical Specifications
Parameter Value
Part Number TCL-05SV3 (TCL05SV3)
Function Large Terminal Cover
Compatible Series Mitsubishi WS-V Series MCCB
Frame Size 30A - 63A
Pole Compatibility 2-Pole and 3-Pole
Contents 2 × Covers, 2 × Sealing Plates
Color White
Weight 0.1 kg
Installation Snap-fit, tool-free
Versatile Compatibility

The TCL-05SV3 offers dual-pole compatibility, making it a versatile choice for electrical panel builders. A single part number serves both 2-pole and 3-pole circuit breaker installations in the 30A-63A frame range, reducing inventory requirements.

Installation Benefits

The single-action snap-fit design allows for quick installation without tools or fasteners. This eliminates the risk of dropping hardware into live sections during fitting and enables immediate refitting if accidentally displaced during maintenance work.

Safety Compliance

Terminal covers like the TCL-05SV3 help meet operator protection and live parts enclosure requirements under standards including IEC 61439 for low-voltage switchgear and controlgear assemblies. They prevent accidental contact with live terminals during panel work and maintenance.

Cover Size Selection

The TCL (large) cover provides greater depth over the terminal area compared to TCS (small) covers, accommodating larger conductor cross-sections (10 mm² to 25 mm²) typical for 30A-63A rated breakers. This ensures proper seating without interference from cable bulk.

Compatible Models

NF Models: NF32-SV, NF63-CV/SV/HV, NF125-CVF, NF63-HDV, NF125-HDV (3-pole)
NV Models: NV32-SV, NV63-CV/SV, NV63-HV, NV125-CVF/SVF

Frequently Asked Questions
What is the difference between TCL-05SV3 and TCL-05SV2?

The TCL-05SV2 is compatible with 2-pole configurations only, while the TCL-05SV3 works with both 2-pole and 3-pole breakers in the 30A-63A frame range.

Can the TCL-05SV3 be used with electrically operated circuit breakers?

No. Mitsubishi specifies that terminal covers cannot be installed on electrically operated (motorised) circuit breakers due to incompatible terminal access geometry.

What safety standards does the TCL-05SV3 meet?

As a certified Mitsubishi accessory, it contributes to meeting operator protection requirements under standards like IEC 61439 and relevant national wiring regulations.
