Specifications
Brand Name :
SMC
Model Number :
VBA20A-03N-X9
Place of Origin :
Japan
MOQ :
1pcs
Price :
USD 200-300 / piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs per day
Delivery Time :
2 days
Packaging Details :
Original packaging
Type :
Pressure Boosting Valve
Size :
Pressure increase ratio 2 times
Thread type :
Rc
Specifications :
Standard product
Option :
Silencer
Operation type :
Handle-operated type
Warranty :
12 Months
Condition :
New Original
Description

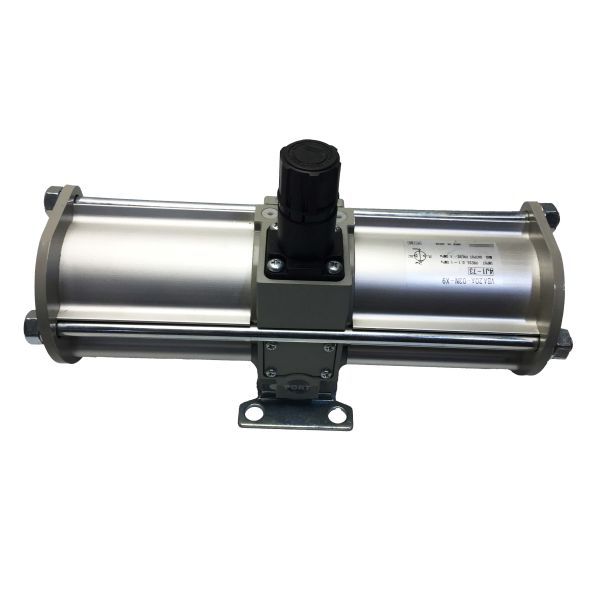

SMC VBA20A-03N Booster Regulator — Pneumatic Air Pressure Booster Valve

The SMC VBA20A-03N Booster Regulator is a high‑performance pneumatic booster valve engineered to efficiently increase compressed air output pressure up to 2× the input pressure — all using only the system’s existing compressed air supply. Perfect for industrial automation, pneumatic tooling, pressurization systems, and energy‑saving applications where stable boosted pressure is required without additional power sources.

The specialty regulator series VBA is a booster regulator that saves money and energy by increasing the main line pressure up to two times. The booster regulator, when connected to air supply line, increases pressure up to two times and the main air supply pressure may be set low. Desired pressure increase can be easily adjusted.

  • Boosts local line pressure without requiring additional power
  • 2 to 4 times increase in pressure
  • Easy adjustment of output pressure
  • Improved performance over previous designs

Technical Specifications


Specification Details
Fluid Media Compressed Air
Pressure Increase Ratio Up to 2× inlet pressure
Set Pressure Range 0.2–1.0 MPa (29–145 psi)
Supply Pressure Range 0.1–1.0 MPa (14.5–145 psi)
Max. Flow Rate 1000 L/min (ANR)
Proof Pressure 1.5 MPa (217.5 psi)
Port Size (IN/OUT/EXH) 3/8″ Rc
Gauge Port Size 1/8″ Rc
Ambient / Fluid Temp. 2°C – 50°C (no freezing)
Installation Orientation Horizontal recommended
Lubrication Grease (Non‑lube)
Weight ~3.9 kg / 8.6 lb (approx.)
Operation Handle‑operated with relief function


The specialty regulator series VBA is a booster regulator that saves money and energy by increasing the main line pressure up to two times. The booster regulator, when connected to air supply line, increases pressure up to two times and the main air supply pressure may be set low. Desired pressure increase can be easily adjusted.

Features


· Floating piston structure.
· Metal noise reduced by the implementation of a damper on the impact part of the switching valve.
· The high noise-reduction silencer reduces exhaust noise.
· Features a built-in mesh filter at the IN port, preventing operation failure due to contamination by foreign matter.
· The air-feeding tube is integrated with the main tube, mitigating condensation caused by cooling during exhaust expansion.
· Standard fittings can be used, enabling remote pressure monitoring, etc.
