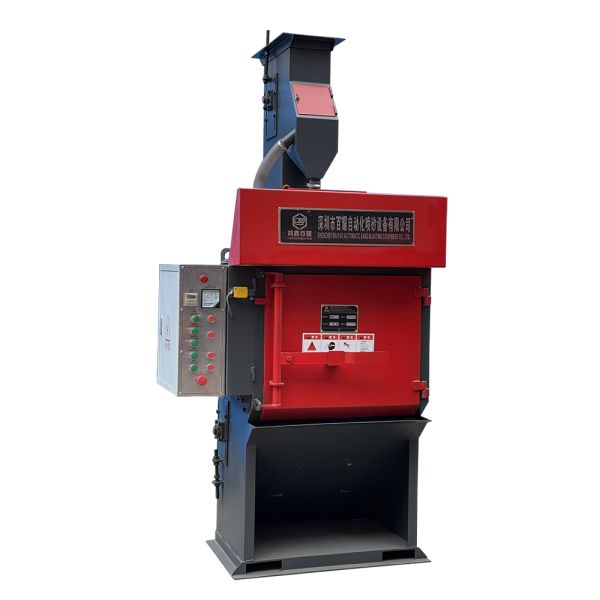

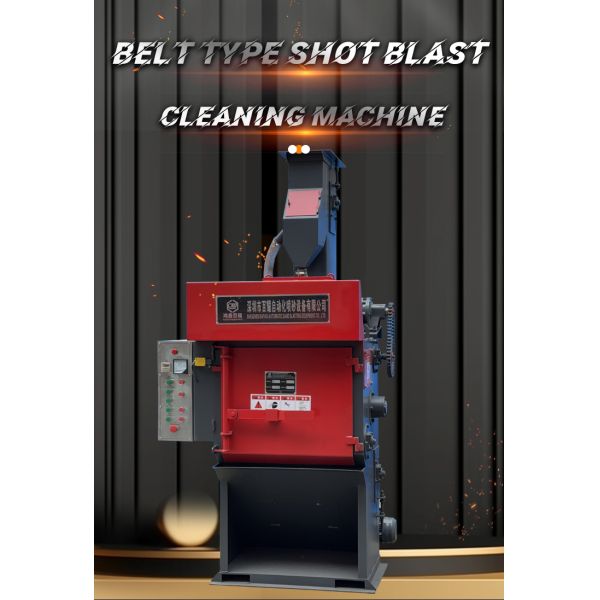

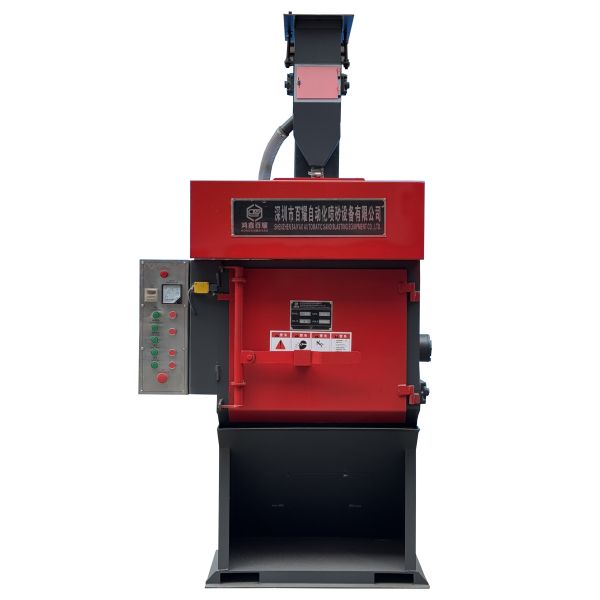

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine
Specifications
Brand Name :
HONGXINBAIYAO
Model Number :
BY-324
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$3500
Payment Terms :
T/T
core components :
Engine, Bearing, Gearbox, Motor, Gear
power(w) :
5kw
Blasting media :
Steel Balls
Advantages :
High Performance
Description
Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

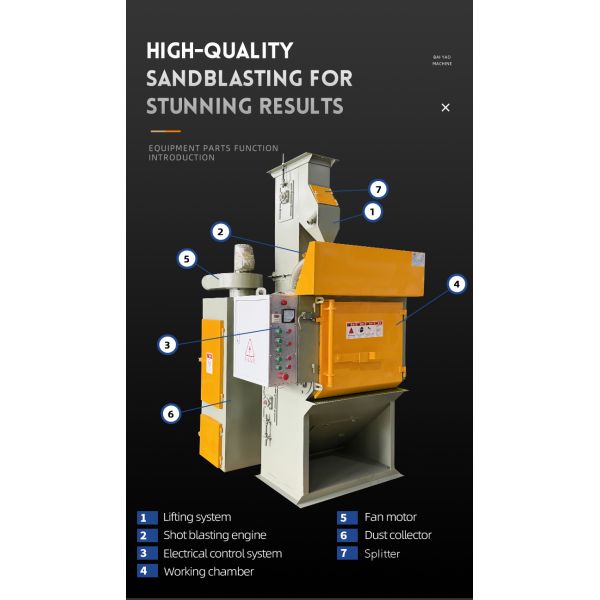

Working Principle

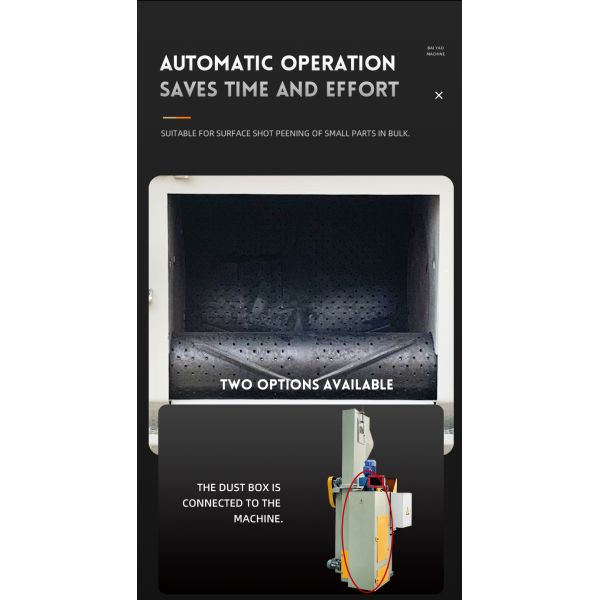

The machine adopts a rubber crawler structure to hold workpieces. During operation, the crawler rotates continuously to turn over

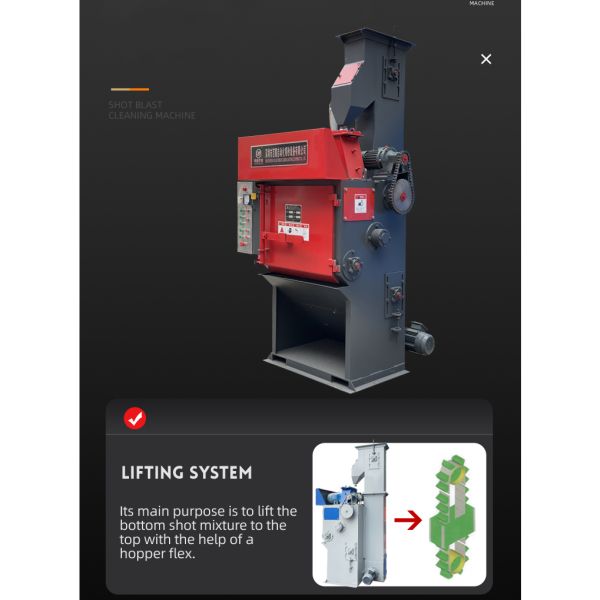

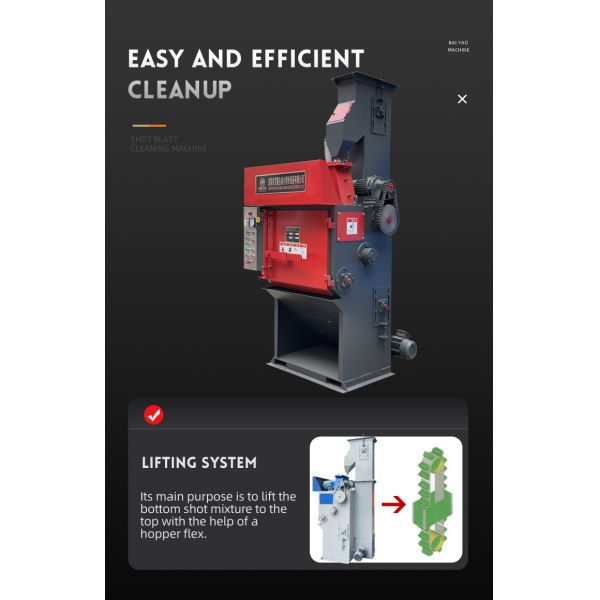

materials, while the blast wheel accelerates steel shots to impact the workpiece surface at high speed. Used shots are recycled

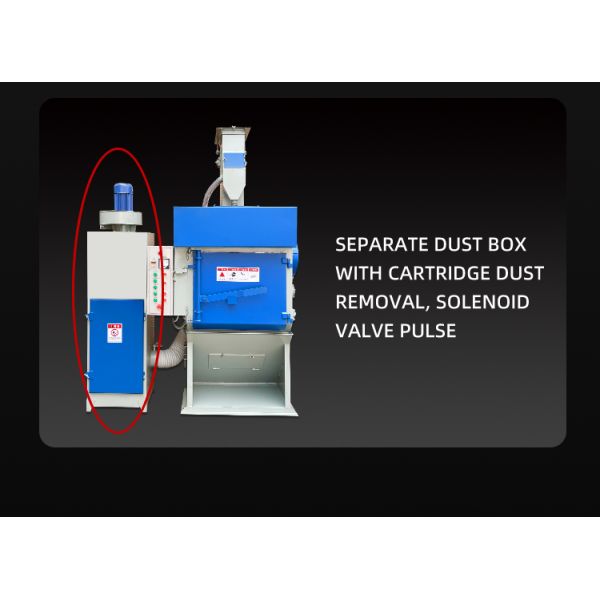

through screw conveyor, elevator and separator for reuse. Dust is collected and filtered by a dedicated dust collector to ensure
clean production. After cleaning, the crawler
Product Images

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Automatic Shot Blasting Cleaning Machine Crawler Type Shot Blasting Machine

Main Specifications


* Crawler diameter: 400mm
* Max loading capacity: 80–100kg
* Max single workpiece weight: ≤5kg
* Cleaning efficiency: 400–800kg/h (castings)
* Blast wheel power: 4kW
* Total power: approx. 5kW
* Shot flow rate: 40kg/min

Features & Advantages


* Rubber crawler design reduces workpiece collision and damage, low noise.
* Automatic loading, cleaning and discharging, labor-saving.
* High-efficiency shot recycling system, low abrasive consumption.
* Compact structure, small footprint, easy maintenance.
* Equipped with dust removal system, eco-friendly and compliant.
