QR-HTS Computer Intelligent High Temperature Sand Strength Testing Machine
QR-HTS Computer Intelligent High Temperature Sand Strength Testing Machine
QR-HTS Computer Intelligent High Temperature Sand Strength Testing Machine
QR-HTS Computer Intelligent High Temperature Sand Strength Testing Machine
Specifications
Brand Name :
MORITA
Model Number :
QR-HTS
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T
Supply Ability :
100 pcs per month
Delivery Time :
35 days
Packaging Details :
wooden case
Measurement Range :
0-20 kN
Warranty :
1 year
Accuracy :
±1% of full scale
Material :
Steel
Power Supply :
AC 220V/50Hz
Display :
Digital
Usage :
Measuring the strength of moulding sand
Loading Speed :
3.0–10mm/min (Automatic Control Available)
Description

Product Overview

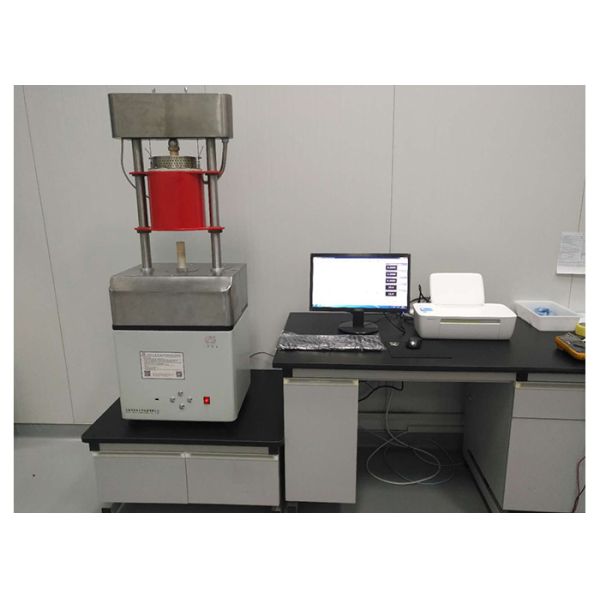

The QR-HTS Computer Intelligent High-Temperature Performance Tester is a high-precision instrument designed for research institutes, engineering universities, and industrial foundries. It measures the high-temperature properties of inorganic non-metallic materials and molding mixtures within a temperature range of room temperature to 1400°C.

Key parameters include:

  • High-temperature compressive strength

  • Thermal expansion and expansion force

  • Heat resistance duration

  • Thermal deformation under fixed load

  • Residual strength and compressive strength at room temperature

By simulating real heating conditions, this device ensures accurate analysis of molding sand performance, directly improving casting quality and reducing defects such as cracks, sand sticking, and inclusions.

Key Advantages

  • Wide Testing Capability – Measures multiple high-temperature mechanical properties in a single instrument.

  • Intelligent Control System – Automated temperature regulation and servo-driven loading ensure precision.

  • Advanced Data Management – Real-time display, unlimited storage, querying, PDF report generation, and multi-curve comparison.

  • High Accuracy & Stability – Equipped with high-precision sensors and micro-displacement technology.

  • User-Friendly Interface – Windows-based intelligent operation system with clear visual display.

Applications

  • Foundry quality control and production testing

  • Research on molding sand (water glass sand, phenolic resin sand, furan resin sand)

  • Study of strength, ductility, and collapsibility of sand mixtures

  • Educational and research laboratories in engineering institutions

Technical Specifications

Parameter Specification
Maximum Test Force 20KN (2T), Accuracy ≤ ±1% FS
Compressive Strength Range 0–28MPa, Accuracy ±1.0%
Deformation Measurement Range 0–±5mm, Resolution 0.01mm
Loading Speed 3.0–10mm/min (Automatic Control)
Sample Size (Diameter × Height) Φ30 × 50mm
Temperature Control Range Room Temperature – 1400°C
Working Temperature 1300°C (Short-term 1400°C)
Temperature Accuracy ±1°C
Furnace Diameter Φ50mm
Power Supply AC 220V ±10%, 50Hz, 3kW
Instrument Dimensions 500 × 320 × 1200mm
Usage Environment Room Temperature, Humidity ≤ 90%

Why Choose QR-HTS?

QR-HTS Computer Intelligent High Temperature Sand Strength Testing Machine

  • Comprehensive testing of molding sand performance under high temperatures

  • Intelligent and automated testing process for precision and efficiency

  • Advanced data handling with unlimited storage and PDF reporting

  • Wide application in research, teaching, and industrial production

  • Enhances casting quality by ensuring accurate high-temperature performance evaluation
