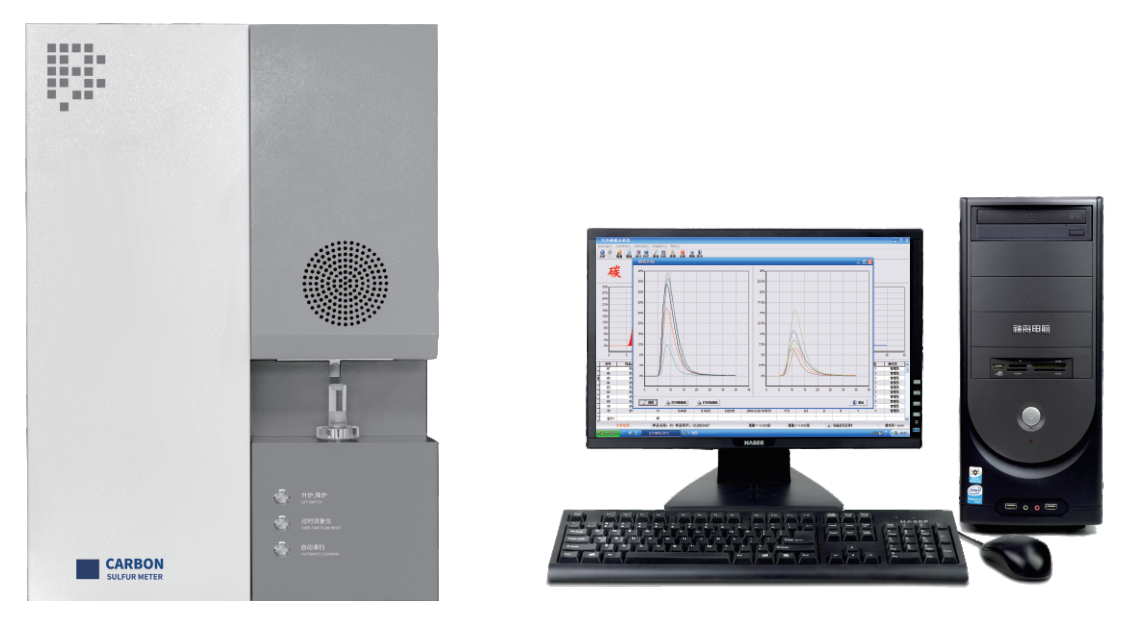

220V Infrared Carbon And Sulphur Analyser For Metallurgical Testing
220V Infrared Carbon And Sulphur Analyser For Metallurgical Testing
Specifications
Brand Name :
MORITA
Model Number :
QR-9000
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T
Supply Ability :
100 pcs per month
Delivery Time :
15 days
Packaging Details :
wooden case
Communication Interface :
RS232
Analysis Time :
Carbon: 20-60 seconds, Sulfur: 20-60 seconds
Measurement Accuracy :
Carbon: +/- 0.0001%, Sulfur: +/- 0.0001%
Operating Temperature :
10-30 degrees Celsius
Measurement Range :
Carbon: 0.0001%-10%, Sulfur: 0.0001%-5%
Detection Method :
Infrared absorption method
Storage Temperature :
-20-50 degrees Celsius
Power Supply :
AC 220V/50Hz
Description
High-Frequency Infrared Carbon-Sulfur Analyzer For Metallurgical Testing QR-9000
The High-Frequency Infrared Carbon-Sulfur Analyzer is a high-precision analytical instrument specifically developed for metallurgical material testing. It combines advanced infrared detection and high-frequency combustion technology to deliver accurate, reliable, and rapid measurements of carbon (C) and sulfur (S) content, making it essential for modern metallurgical laboratories and production facilities.
Key Product Advantages
Wide Measurement Range
Carbon: 0.00001% – 10.00%
Sulfur: 0.00001% – 5.00%
This wide range ensures compatibility with a variety of metals and alloys used in the steel and foundry industries.
Exceptional Sensitivity & Precision
Sensitivity: 0.01PPM
Precision: Carbon ≤ RSD 0.5%; Sulfur ≤ RSD 1.0%
Provides consistent and highly accurate results for both low and high concentration samples.
Rapid Analysis Time
Delivers results in 25–60 seconds (average 35 seconds), allowing for quick decision-making in production and quality control.
Standards Compliance
Meets JJG395-2016, ISO9556 (Carbon) and ISO4935 (Sulfur) standards for analytical accuracy.
Technical Specifications
Parameter Specification
Measurement Elements Carbon (C) and Sulfur (S)
Carbon Range 0.00001% – 10.00%
Sulfur Range 0.00001% – 5.00%
Sensitivity 0.01PPM
Analytical Precision C ≤ RSD 0.5%; S ≤ RSD 1.0%
Analysis Time 25–60 seconds (average 35 seconds)
Operating Temperature 10°C – 30°C
Relative Humidity ≤75%
Power Supply AC220V ±5%, 50Hz ±2%
Applications
The analyzer is widely used in:
Steel and Alloy Testing: Accurate carbon and sulfur analysis for raw materials, molten steel, and finished products.
Foundry Industry: Ensuring precise elemental control during casting processes.
Quality Control Laboratories: Real-time monitoring of metallurgical materials to maintain product consistency.
Research and Development: Supporting innovation in metal processing and alloy design.
Why Choose This Analyzer?
High Accuracy: Detects ultra-low levels of carbon and sulfur with exceptional sensitivity.
Fast Performance: Increases testing efficiency and reduces production downtime.
Reliable Operation: Robust design with infrared detection and high-frequency combustion ensures long-term stability.
Comprehensive Software: User-friendly interface with functions for data statistics, signal tracking, and system diagnostics.
