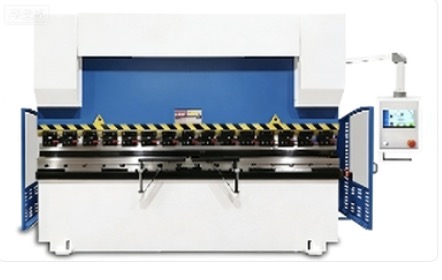

Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user
Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user
Specifications
Brand Name :
JINQIU
Model Number :
80/3200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
LOWE PRICE
Delivery Time :
35 DAYS
Packaging Details :
EXPORTING PACKAGES
Material :
Mild Steel
bending length :
3200mm
Control System :
TP10
Color :
Blue
Type :
Hydraulic Press Brake Machine
Max. Bending Angle :
135°
Description
Item Unit 80T3200
Control Axis Y-X-axis
Bending force Ton 80
Bending length(A) mm 3200
Distance between columns(B) mm 2600
Beam Stroke(C) mm 130
Daylight(D) mm 375
Throat Depth(E) mm 400
Working table height(F) mm 680
WORKING SPEED:
Approaching Speed mm/sec 180
Work Speed mm/sec 12
Return Speed mm/sec 140
BACKGAUGE:
Max Speed X-axis mm/sec 150
Max Travel X- Axis mm 500
Max Travel R- Axis mm /
Finger Block Pcs 3
Support Arms Pcs 2
CAPACITY:
Motor Power KW 7.5
Overall dimensions (LxWxH) mm 3700x1800x2450
Machine weight kg 6200

MODEL CNC Double Servo Press Brake
APPEARANCE Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user
CONTROL SYSTEM TP10 S (China)
CNC AXIS Y+X

MAIN MOTOR

(Three-phase Asynchronous)

 HUYUAN(CHINA)
Y+X AXIS MOTOR POWMAX (China)
GUIDE RAIL Ball Screw and Linear Guide Rail (China)
CYLINDER HUAYI (China)
HYDRAULIC SYSTEM Boch Rexroth (Germany)
HYDRAULIC PUMP HUIXI (China)
SEAL RING (Japan)
MAIN ELECTRIC COMPONENTS Schneider (France)
CLAMP Fast Clamp (side draw)
MOLD

Square Mold(Standard)

CNC Double-V Mold(optional)

VOLTAGE/HZ/PHASE

(can be customized)

 380V/50HZ/Three-phase
