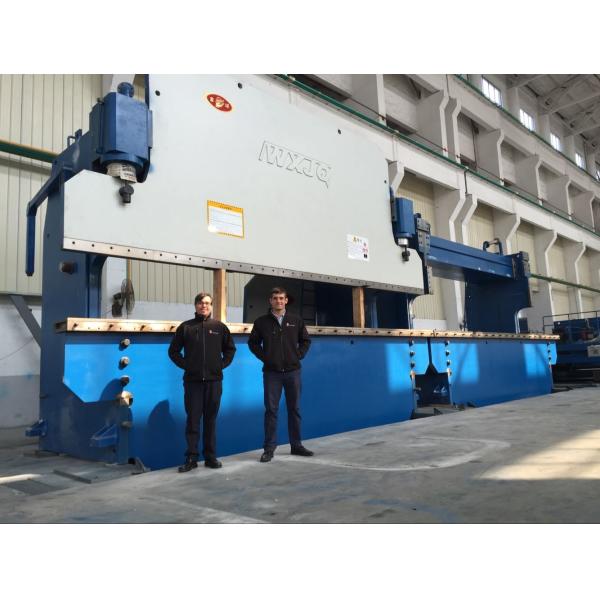

Precision CNC Hydraulic Press Brake with Servo Motor Back Gauge and Ball Screw Linear Guideway for ±0.05mm Accuracy
Precision CNC Hydraulic Press Brake with Servo Motor Back Gauge and Ball Screw Linear Guideway for ±0.05mm Accuracy
Specifications
Throat Depth :
400 mm
Controller System :
Delem DA41 / E21 optional
Nominal Press Force :
100 Ton (1000 KN)
Open Height :
450 mm
Back Gauge Travel :
600 mm
Price :
USD 18,000-32,000 / Set
Delivery Time :
10-25 working days after order confirmation
Main Motor Power :
7.5 KW
Back Gauge Positioning Accuracy :
±0.05 mm
Voltage :
220V / 380V / 440V 3-Phase customizable
Ram Stroke :
200 mm
Length of Table :
3200 mm
Model Number :
WC67K-100/3200 SBG
MOQ :
1 Set
Packaging Details :
Export-grade plywood case with anti-rust coating, foam padding, and forklift access
Place of Origin :
Wuxi, Jiangsu, China
Payment Terms :
T/T, L/C, Western Union
Distance Between Housings :
2600 mm
Oil Tank Volume :
280 L
Machine Weight :
7,500 kg
Brand Name :
WNRLN
Back Gauge System :
Servo motor X-axis, ball screw drive, linear guideway
Certification :
CE, ISO 9001
Supply Ability :
60 Sets per Month
Ram Speed :
90 / 8 / 75 mm/s
Description
Precision Servo Motor Back Gauge CNC Hydraulic Press Brake Bending Machine with Ball Screw Linear Guideway
Precision Servo Motor Back Gauge CNC Hydraulic Press Brake

The WC67K-100/3200 SBG is engineered for batch production excellence with its advanced servo-driven back gauge system featuring precision ball screw and linear guideway. This configuration delivers repeatable positioning accuracy of ±0.05mm, making it the ideal choice for manufacturers who demand consistent part quality across thousands of production cycles.

Servo-Driven Back Gauge Advantages
  • Ball Screw & Linear Guideway: Unlike conventional chain-driven or manual back gauges, the precision ball screw mechanism paired with linear guideway eliminates backlash and ensures smooth, accurate positioning every cycle.
  • ±0.05mm Positioning Accuracy: Servo motor feedback control maintains tight tolerances — critical for parts that must fit precisely into welded assemblies or downstream automated processing lines.
  • Batch Consistency: Program once, run thousands. The servo back gauge repeats the exact position automatically, dramatically reducing scrap rates and rework from manual adjustment errors.
  • 600mm X-Axis Travel: Extended back gauge range accommodates diverse part sizes without mechanical reconfiguration, expanding the machine's application versatility.
Technical Specifications
Parameter Specification
Nominal Press Force 100 Ton (1000 KN)
Length of Table 3200 mm
Distance Between Housings 2600 mm
Throat Depth 400 mm
Ram Stroke 200 mm
Ram Speed 90 / 8 / 75 mm/s
Open Height 450 mm
Main Motor Power 7.5 KW
Machine Weight 7,500 kg
Batch Production Applications

This machine excels in electrical panel fabrication, automotive bracket production, shelving and racking manufacturing, furniture components, lighting fixture production, and any application where large quantities of identical bent parts must be produced with minimal dimensional variation.

Compatible with carbon steel, stainless steel, aluminum, and galvanized sheets up to 6mm thickness (material-dependent). The welded steel frame with vibration stress relief ensures long-term stability for continuous multi-shift operation.

Contact our technical sales team for a detailed accuracy demonstration and competitive pricing.
