Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
Specifications
Voltage :
280V / 380V
Certification :
CE
Weighing range :
10-50kg
Place of Origin :
Hefei, Anhui, China
Model Number :
SXPA50
Material :
Can be made all 304SS
Brand Name :
AGMT
Usage :
Filling /weighing /sealing /conveying
Weighing accuracy :
±0.2-0.5%
Package material :
plastic , paper, film compound etc.
Supply Ability :
50 units/month
Packaging Details :
Fumigation-free export wooden box
Delivery Time :
40-50 working days
Price :
23360
Payment Terms :
L/C,T/T
Packing speed :
6-8 BPM
MOQ :
1 unit
Material feeder :
Screw / gravity filling
Description

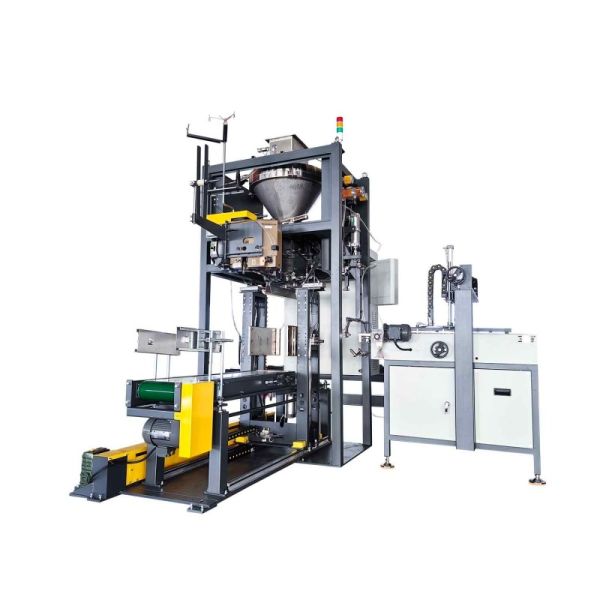

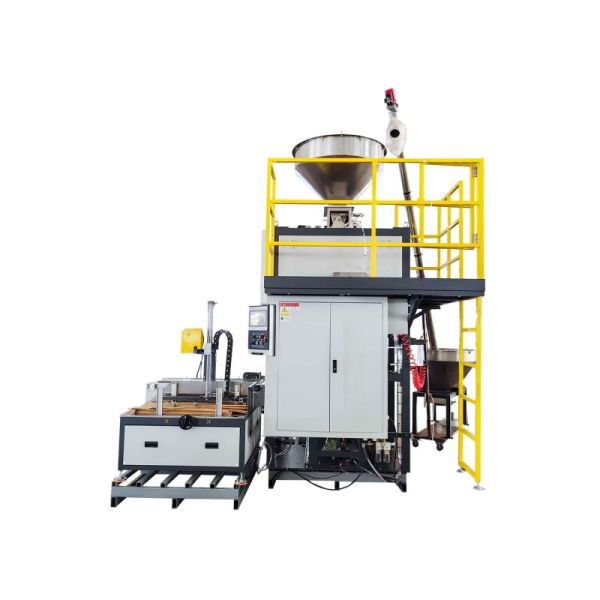

50Kg Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
High-performance automatic packaging solution with capacity of 6-8 bags per minute for granular materials including corn, powders, and flake particles.

The Automatic Heavy Bag Granule Packing Machine is specially designed for accurate weighing and high-speed packaging of granular materials in 10kg to 50kg bags.
The machine is available in both single-scale and double-scale configurations and can be customized according to customer production requirements, bag types, plant layout, and automation level.

This packing system integrates automatic weighing, bag clamping, filling, conveying, sewing/sealing, and optional palletizing functions, providing a complete and efficient packaging solution for industrial production lines.

Technical Specifications
Model Series SXP50G
Packable Products Granules, powders, flake particles
Bag Type PE bags, aluminum foil bags, woven bags, paper bags, paper-plastic composite bags
Roll Film Diameter ≤1500mm, inner tube: 150mm (6 inches)
Empty Bag Size Length: 500-750mm, Width: 320-420mm
Packaging Weight 20-50 kg/bag
Packaging Speed 300-600 bags/hour
Power 3 kW
Air Consumption 200 NL/min
Machine Overview
This automated packaging system performs complete bag handling operations including automatic bag pickup, feeding, delivery, opening, filling, and sealing. Controlled via PLC with human-machine interface for easy operation, making it essential for modern automated production facilities.
Key Features
  • Customized solutions tailored to specific customer requirements and workspace conditions
  • Premium components including Mettler Toledo load cells, Banner vacuum generators, SMC valves, and SIEM PLC with touch screen interface
  • Enhanced safety with protective doors and robot hand safety guards
  • Centralized control cabinet for integrated machine line operation
  • Efficient operation requiring only 1-2 personnel, reducing labor costs and increasing productivity
Operation Guidelines
Use specified supply voltage: single-phase 3-wire (AC380V, 50Hz)
Avoid rolling or pressing power cables; coil manually when not in use
Maintain equipment cleanliness and protect from moisture
Do not modify any machine components
Verify all switch parameters operate normally before startup
Follow specification change procedures strictly when adjusting parameters
Keep equipment surfaces free from moist or dirty items
Packaging & Delivery
Machines are protected with interior plastic films and exterior fumigation wooden cases designed to withstand extended sea shipping. Preservative film coating prevents saltwater corrosion during transit.
Automatic Weighing And Packing Machine for Granular Powders and Flake Particles
Service & Support
Installation Services
  • Comprehensive installation videos and instruction manuals
  • Free installation training at our factory
  • On-site technician deployment for installation and training
After-Sales Support
  • One-year quality warranty with free lifetime technical support
  • Free replacement parts for warranty period failures
  • Cost-based spare parts availability after warranty period
Frequently Asked Questions
How do we test your machinery?
We provide comprehensive testing videos upon manufacturing completion. Customers are welcome to visit our factory for hands-on testing and operational training.
What are your payment terms?
Orders ≤ $1,000 USD: 100% payment in advance. Orders ≥ $1,000 USD: 30% T/T advance payment with balance due before shipment.
