Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Heavy-Duty PLC Controlled Stainless Steel Pallet Conveyor System for Automated Pallet Handling
Specifications
Brand Name :
EAGLE
Model Number :
OEM
MOQ :
1
Price :
USD900-15000
Delivery Time :
35 work days
Packaging Details :
ISPM 15 Certified Fumigated Wooden Box
Load Capacity :
50 kg to 2,000 kg per pallet (Custom up to 3,500 kg)
Conveyor Speed :
12 to 18 metres per minute (VFD controlled)
Frame Material :
Powder-coated carbon steel or Grade 304/316 Stainless Steel
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
Western Union,T/T
Supply Ability :
100 sets per month
Control System :
German or Japanese PLC with HMI & Ethernet/IP
Roller Diameter :
Φ80 mm to Φ108 mm
Safety Features :
Category 4 light curtains, safety e-stops, interlocking fencing
Description
Fully Automatic Pallet Conveyor System: Smart End-of-Line Automation
Technical Specifications
Parameter / Feature Industrial Standard Performance Baseline
Load Capacity 50 kg to 2,000 kg per pallet (Custom heavy-duty up to 3,500 kg)
Conveyor Speed 12 to 18 metres per minute (VFD controlled variable speed)
Frame Construction Powder-coated heavy carbon steel or Grade 304/316 Stainless Steel
Roller Specifications Φ80 mm to Φ108 mm heavy-wall precision steel rollers
Safety Integration Category 4 light curtains, safety e-stops, and interlocking fencing
Frame Material Options

We engineer your conveyor structures based on your precise plant environment and product type:

  • Carbon Steel (Powder Coated): The industry standard for dry goods, manufacturing, and warehouse logistics. It offers exceptional structural rigidity, clean surfaces that do not trap dust, and cost-effective scalability.
  • Stainless Steel (Grade 304/316): Specifically engineered for food processing, pharmaceutical handling, and aggressive washdown environments. Resists chemical cleaning agents and prevents any risk of rust contamination.
Integrated System Components

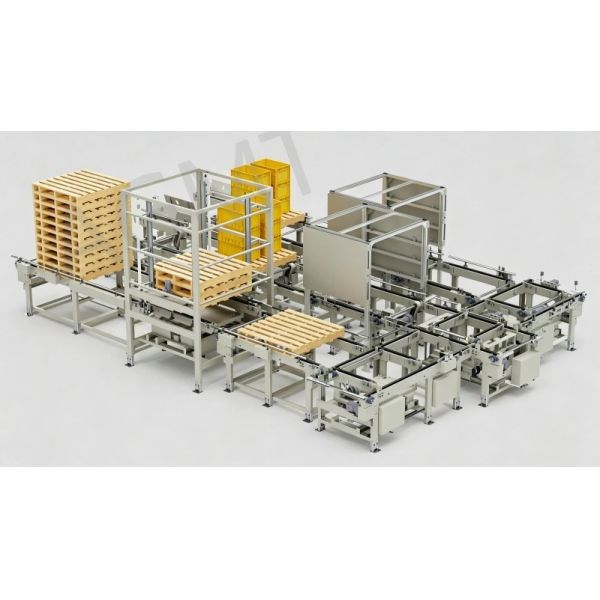

A complete, integrated automated palletising conveyor line typically incorporates the following modular stations to achieve 100% hands-free material flow:

  • Pallet Dispenser / Destacker: Automatically indexes and feeds empty pallets into the robot palletising cell on demand.
  • Heavy-Duty Chain Driven Live Roller (CDLR): Features roll-to-roll chain drives for high-impact zones, ideal for standard hard-bottomed pallets.
  • Multi-Strand Drag Chain Conveyors: Ideal for transporting pallets perpendicular to their bottom boards or handling heavy plastic/slip-sheeted loads.

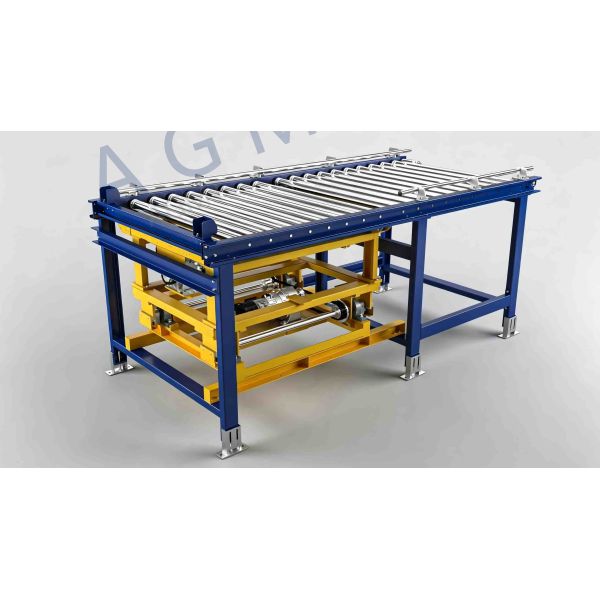

  • 90-degree Pop-Up Transfers: Combines chains and rollers to change pallet direction within a tight footprint without rotating the load.
  • Motorised Turntables: Rotates pallets up to 360° to reorient loads for multi-sided strapping, labeling, or alternative routing.
  • Pallet Check & Inspection Station: Integrated sensors automatically verify pallet weight, footprint, overhang, and bottom-board integrity before warehouse entry.
