Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Specifications
Brand Name :
AGMT
Model Number :
SXP25PW
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
5000
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Package type :
Open mouth bag / woven bag
Voltage :
3 phases-380V / 50-60 Hz
Packing speed :
2-4 bag/minute
Available powder mesh :
not more than 200 mesh, no air
Function :
Weighing, filling, sealing
Weighing sensor :
AirTAC Load Cell
Power :
2-4 KW
Air pressure :
0.4-0.6 MPa
Bag sealing typpe :
Bag sewed / customized
ty :
rtyu
Description
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag
SXPA series automatic packaging machine utilizes advanced electronic weighing technology for precise quantitative packaging. Designed specifically for powder and fine particle materials in the chemical industry, this machine features stainless steel 304 construction and modular design for maximum efficiency and easy maintenance.
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Technical Specifications
Product Type Powder Packaging Machine
Weighing Range 5-50kg
Packaging Speed 2-4 bags per minute
Bag Compatibility Plastic, paper, woven bags
Weighing Accuracy 0.2-0.5% error margin
Air Supply 0.4-0.65Mpa
Power Requirements 380v/220v/50hz
Construction Material Carbon steel / Stainless steel
Warranty 1 year / Lifelong maintenance
Service Support Global engineering service
Key Features
  • Semi-automatic operation with manual bagging assistance
  • Precision instrument control for speed and accuracy
  • Wide application range for special chemical raw materials
  • High-precision sensors and intelligent weighing controller
  • Stainless steel material contact parts for corrosion resistance
  • Imported electrical and pneumatic components for reliability
  • Sealed control cabinet suitable for dusty environments
  • Automatic correction, zero-point tracking, and alarm systems
Operating Procedure
Material enters the gravity feeder through the feeding hopper, then proceeds to the weighing hopper equipped with three weighing sensors. After manual bag placement on the packaging machine holder, bags are automatically clamped. Weighed material discharges into bags, which are then released, transferred to the sewing machine, and sealed.
Main Components
Component Model/Manufacturer Quantity
Control System Canada Germaine 1
Weighing Controller Canada Germaine 1
Weighing Sensor Avionics 1
Approach Switch BN-M18 (Omron) 1
Optoelectronic Switch FQ31-TO8P (Omron) 1
Low-pressure Components Zhengtai 1 batch
Motor Zhengjiang China 1 batch
Cylinder AIRTAC 1 batch
After-Sales Service
  • 24-hour service hotline available
  • Rapid response and solution finding
  • Telephone technical support
  • Free machine installation and commissioning
  • Comprehensive maintenance training
Packaging & Delivery

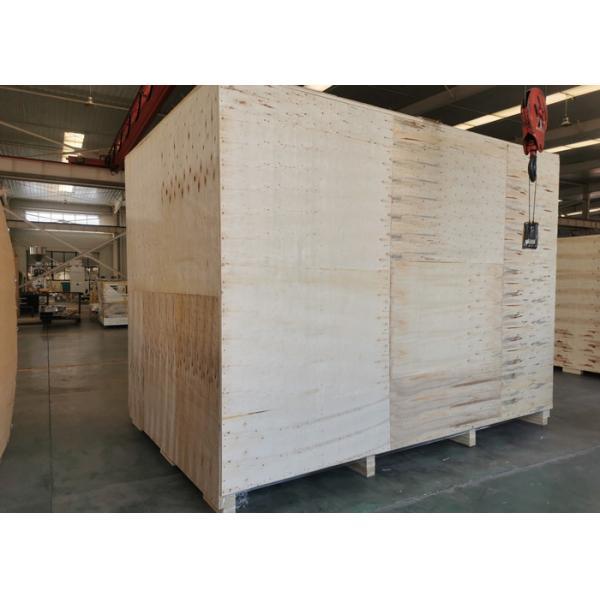

All machines are packaged in fumigated wooden cases that meet international timber inspection standards. Standard shipping from Shanghai port with alternative port options available upon customer request.
Heavy Talcum Powder Filling Machine 10-50kg Open Mouth Bag with Stainless Steel 304 for Chemical Industry
Company Capabilities
We specialize in complete quantitative packaging solutions, providing comprehensive packaging line equipment including batching systems, semi-automatic and fully automatic packing machines, conveyors, elevators, palletizers, air compressors, and sealing machines. Our expertise spans multiple industries including feed, fertilizer, flour, starches, grain, chemical, mining, and construction materials.
