25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
Specifications
Brand Name :
AGMT
Model Number :
SXP50PW
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
5000
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Voltage :
380V
Package type :
Normal open or M type bag
Available powder mesh :
100-200 mesh
Function :
Weighing, filling, sealing
Packing speed :
100-180 bags per hour (calculate by flour 25 kg)
Power :
4 KW
Weighing sensor :
Load Cell
Air pressure :
0.4-0.65 MPa
Bag sealing typpe :
Bag sewed or heat sealed or customized
Description
25kg Open Mouth Bag Paint Powder Packing Machine For Chemical Industry
High-Speed 25kg Open Mouth Bag Paint Powder Packing Machine for Chemical Applications
Product Overview
This quantitative filling and packaging scale system comprises four main components: automatic weighing, conveying equipment, bag sealing equipment, and computer control. Designed with a rational structure and attractive appearance, it offers stable operation, energy efficiency, user-friendly controls, and precise weighing accuracy. The main unit employs dual-frequency spiral propulsion with dual-barrel measurement, incorporating advanced digital frequency conversion control, sample processing, and anti-interference technologies for automatic error compensation and correction.
Application Scope
Automatic weighing and packaging for powder or fine particle materials across multiple industries including pharmaceutical, chemical, fertilizer, pesticide, additives, flour, and food processing.
Technical Specifications
Product Name Powder Packaging Machine
Product Features Automatic filling weighing and conveying, sewing bags
Weighing Range 5-50kg
Packaging Speed 2-4 bags per minute
Bag Type Compatibility Plastic, paper bag, woven bag
Accuracy Weighing error: 0.2-0.5%
Gas Source 0.4-0.65Mpa
Power Supply 380v/220v/50hz
Material Construction Carbon steel / stainless steel
Warranty 1 year / Lifelong maintenance
After Sales Service Engineers serving overseas
Key Features
  • Specifically designed for ultrafine powdery materials with unique structure, accurate weighing, and stable reliability
  • Weighing control system centrally controlled by Canadian controller with IP54 dustproof and waterproof rating
  • Complete system includes fully automatic weighing machine with bag clamp mechanism, conveyor, bag sewing machine, and automatic control cabinet
  • Horizontal double auger feeding system with independent metering and dedusting mechanism for fast metering speed and high accuracy
Operational Procedure

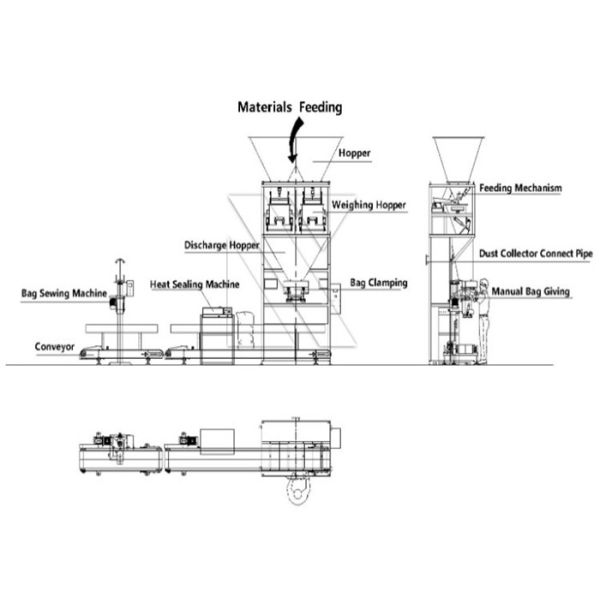

Material enters the gravity feeder through the feeding part (connecting hopper), then proceeds to the weighing hopper. The weighing hopper is equipped with 3 weighing sensors. After manual transport to the packaging machine's bag holder, the bag automatically clamps when contacting the sensor. The weighed material discharges into the bag, which is then released, transferred to the sewing machine, and sealed.
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
Main Components List
No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Avionics 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Other low-pressure component Zhengtai 1 batch
7 Motor Zhengjiang China 1 batch
8 Cylinder AIRTAC 1 batch
9 Magnetic valve AIRTAC 1 batch
10 Other pneumatic element AIRTAC 1 batch
After-Sales Service
  • Comprehensive machine testing before delivery
  • Professional manual included with machine shipment
  • Experienced engineering team available for overseas installation, debugging, and training services
Packaging and Delivery
  • Fumigation-treated wooden cases meeting international timber inspection standards
  • Standard shipping from Shanghai port with flexible port selection based on customer requirements
25kg Open Mouth Bag Chemical Powder Packing Machine for Weighing and Filling
Why Choose Our Powder Packing Machine
  • ISO9001 certified workshop with CE certification
  • Premium spare parts from reputable manufacturers ensuring reliable quality
  • 30 years of specialized experience in packing machine manufacturing
  • Strong production capacity with delivery within one month
  • Stable technical team of over 30 experienced engineers
