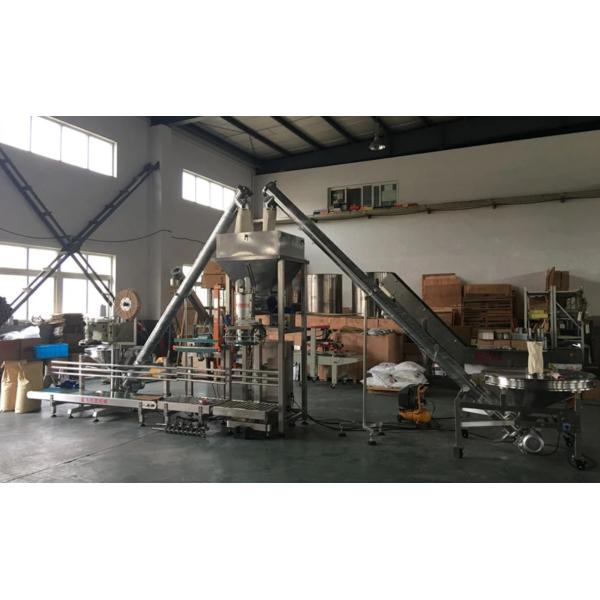

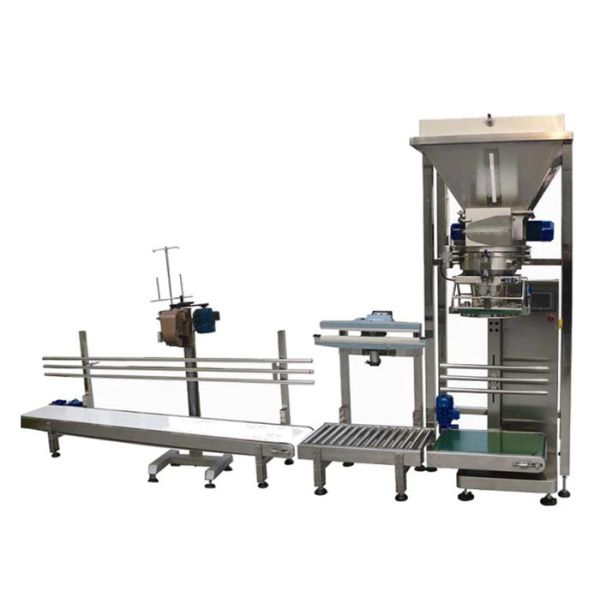

25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
Specifications
Brand Name :
AGMT
Model Number :
SXP25PW
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
5000
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Package type :
Open mouth bag
Voltage :
380V / 50-60 Hz
Packing speed :
2-4 bag/minute (calculate by flour 25 kg)
Available powder mesh :
100-200 mesh
Function :
Weighing, filling, sealing
Power :
2-4 KW
Weighing sensor :
Load Cell
Air pressure :
0.4-0.6 MPa
Bag sealing typpe :
Bag sewed / customized
ty :
rtyu
Description
0.6MPa 25kg Rice Flour Food Chemical Powder Packing Machine
This small-scale 25kg powder packing machine is designed for versatile industrial applications, featuring advanced weighing technology and robust construction for reliable performance in various manufacturing environments.
Product Overview
The quantitative filling and packaging scale machine integrates automatic weighing, conveying equipment, bag sealing, and computer control systems. Engineered with a rational structure and elegant design, it delivers stable operation, energy efficiency, and precise weighing accuracy.
Application Scope
Ideal for automatic weighing and packaging of powder or fine particle materials across multiple industries including pharmaceutical, chemical, fertilizer, pesticide, additive, flour, and food processing.
Technical Specifications
Product Name Powder Packaging Machine
Product Features Automatic filling weighing and conveying, sewing bags
Weighing Range 5-50kg
Packaging Speed 2-4 bags per minute
Bag Type Compatibility Plastic, paper bag, woven bag
Weighing Accuracy 0.2-0.5% error margin
Gas Source Requirement 0.4-0.65Mpa
Power Supply 380v/220v/50hz
Construction Material Carbon steel / stainless steel
Warranty 1 year / Lifelong maintenance
After Sales Service Global engineering support
Key Features
  • Manual bagging assistance with automatic weighing, filling, conveying, and sewing operations
  • Instrument-controlled cutting for optimal speed and precision
  • Specialized design for chemical raw materials with wide application range
  • High-precision sensors and intelligent weighing controller for accurate measurement
  • Stainless steel material contact parts for superior corrosion resistance
  • Imported electrical and pneumatic components for extended service life
  • Sealed control cabinet suitable for demanding dust environments
  • Advanced features including automatic tolerance correction and zero-point tracking
Operational Procedure
Material enters the gravity feeder through the feeding hopper, then proceeds to the weighing hopper equipped with three weighing sensors. After manual bag placement on the packaging machine holder, the bag is automatically clamped. Weighed material discharges into the bag, which is then released, transferred to the sewing machine, and sealed.
Main Components
No Name Model Manufacturer QTY
1 Control system Canada Germaine 1
2 Weighing controller Canada Germaine 1
3 Weighing sensor Avionics 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Other low-pressure component Zhengtai 1 batch
7 Motor Zhengjiang China 1 batch
8 Cylinder AIRTAC 1 batch
After-Sales Service
  • 24-hour service hotline availability
  • Rapid response and solution development
  • Telephone support for problem resolution
  • Complimentary machine installation, commissioning, and maintenance training
Packaging and Delivery
Machines are shipped in fumigation-treated wooden cases that meet international timber inspection standards. Primary shipping port is Shanghai, with alternative ports available per customer requirements.
25kg 0.6MPa Automatic Weighing Powder Packing Machine for Food and Chemical Industry
Our Services & Capabilities
We specialize in quantitative packaging scale systems and provide comprehensive packaging line equipment including batching systems, semi-automatic/fully automatic packing machines, hoppers, conveyors, elevators, automatic bag stacking/palletizer machines, air compressors, and sealing equipment. Our proven packaging solutions serve diverse industries including feed, fertilizer, flour, starches, grain, construction materials, and chemical processing.
