Specifications
Range :
10-50 kg/ bag
Weighing type :
Screw weigher
Product example :
plastic powder
Air pressure :
0.4-0.6 MPa
Power :
4 KW
Package type :
Normal open or M type bag
Condition :
New
Bag sealing typpe :
Bag sewed or heat sealing etc.
Machine material :
Stainless steel / carbon steel
ty :
rtyu
Brand Name :
EAGLE
Model Number :
SXP50PW
Certification :
CE
Place of Origin :
Hefei, Anhui, China
MOQ :
One unit
Price :
5000
Payment Terms :
L/C,T/T
Supply Ability :
100 units/month
Delivery Time :
15-20 working days
Packaging Details :
Film wrapped and packed in exported wooden case
Description
25kg Bag Powder Weighing And Filling Machine
Complete Packaging Solution
This double auger putty powder packaging system includes weighing, filling, sealing and conveying functions, specifically designed for powdery material packaging. The machine integrates a bag sewing machine and belt roller conveyor for complete automated operation.
Premium Quality Components
Control system and pneumatic components utilize world-class quality products. All pneumatic components use AirTAC cylinders (available according to customer requirements). Control instrument uses Canada Germain 8848 with rich software features, simple operation, and reliable performance ensuring continuous operation million times without failure.
Working Principle
This quantitative packaging weighing unit is specially designed for granular materials and small particles with good fluidity and minimal dust. Feeding is controlled by pneumatic arc door or vibration, with sensor feedback signals controlling the feeding mechanism. Material is graded into the weighing bucket or packaging bag, automatically stopping when the set weight is reached. The bag clamper then automatically opens, and the bag is conveyed away for sealing.
Key Features
  • Separate high brightness LED windows for packaging weighing input and display
  • Simple and intuitive menu operation
  • Man-assisting bag-holding (or barrel) with pneumatic bag clapping
  • Independent weighing system with high precision and speed
  • High control precision with screws controlled by asynchronous motor
  • Automatic peeling, data encryption, and time display functions
  • Stable structure with small footprint, easy to clean and maintain
Technical Specifications
ParameterSpecification
Weighing Range10-50kg
Weighing Accuracy±0.5%
Weighing Rate180-240 bags/hour
Power/Current5kW/10A
Air Supply Pressure0.36MPa
Metering ModeSuspension sensor
Frequency/Voltage220V / 50 Hz / 3 phase (customizable)
Power Supply Mode3-phase 5-wire system (customizable)
External Dimensions (L*W*H)4000*2000*3500 mm
Unit Weight1200 kg
Main Components
NoNameModelManufacturerQTY
1Control systemCanada Germaine1
2Weighing controllerCanada Germaine1
3Weighing sensorAvionics1
4Approach switchBN-M18Omron1
5Optoelectronic switchFQ31-TO8POmron1
6Other low-pressure componentZhengtai1 batch
7MotorZhengjiang China1 batch
8CylinderAIRTAC1 batch
9Magnetic valveAIRTAC1 batch
Packaging Process

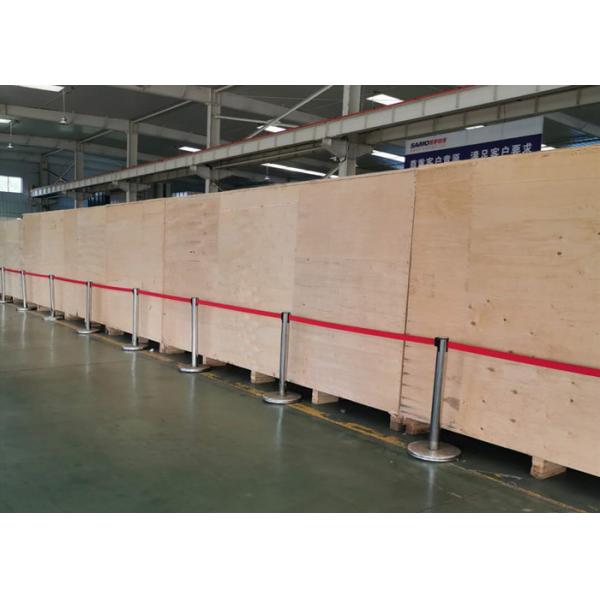

Our comprehensive packaging process ensures safe delivery: machine cleaning and film wrapping, equipment base fixation, accessory verification, wooden case closure, marking and labeling, and final warehouse loading.
25kg Bag Powder Weighing And Filling Machine with Stainless Steel Construction and 10-50 kg/bag Range 25kg Bag Powder Weighing And Filling Machine with Stainless Steel Construction and 10-50 kg/bag Range
Why Choose Our Packaging Solutions
  • Professional design team and sales department
  • Made in China golden supplier
  • Professional, reliable, honest manufacturer
  • Excellent reputation from long-term partners and clients
  • Customized packaging solutions tailored to your specific requirements
  • 24/7 after-sales service including online support and working videos
Frequently Asked Questions
Q: How can I verify machinery quality before ordering?
A: We invite you to visit our factory to inspect machine quality and observe operation. If visiting isn't possible, we provide detailed videos and can supply various test certificates as required.
Q: Can you help design our complete process line layout?
A: Yes, our experienced engineers and technical staff can design and arrange the complete process line layout and installation based on your factory's specific requirements and space constraints.
