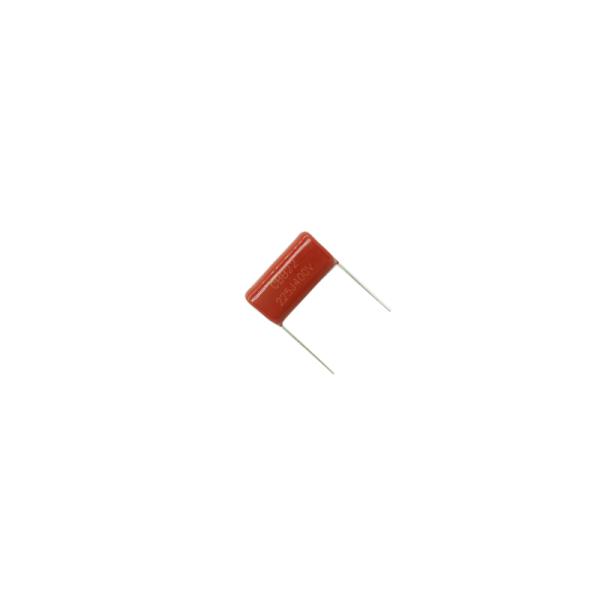

Product Description:

The Metallized Polypropylene Film Capacitor is an advanced electronic component designed to deliver exceptional performance and reliability in various applications. Known for its superior electrical characteristics, this capacitor type is widely used in circuits requiring stable capacitance, low loss, and high insulation resistance. The product is often referred to as a Metallizing Polypropylene Capacitor or Metallizing Film Capacitor, highlighting its construction that involves a thin metallized layer deposited on a polypropylene film, which acts as the dielectric material.

One of the standout features of the Metalized Polypropylene Film Capacitor is its rated voltage range, which spans from 50V up to 1000V. This wide voltage range makes it suitable for diverse applications, including power supplies, audio equipment, pulse circuits, and various industrial electronics. The capacitor’s ability to operate reliably across such voltages ensures that it can meet the demands of both low and high voltage circuits, providing designers with flexibility and confidence in their designs.

This capacitor is designed with a through-hole mounting type, which is ideal for applications where secure mechanical and electrical connections are required. The through-hole leads allow the capacitor to be firmly soldered onto printed circuit boards (PCBs), ensuring durability and long-term stability even in environments subject to vibration or mechanical stress. The lead spacing is customizable between 2.5mm and 10mm, accommodating different PCB layouts and design specifications. This flexibility in lead spacing facilitates easy integration into various electronic assemblies without compromising on performance.

Operating temperature is a critical factor for any capacitor, and the Metallized Polypropylene Film Capacitor performs excellently within a temperature range of -40°C to +85°C. This extensive operating temperature range ensures that the capacitor maintains its electrical properties and mechanical integrity even in harsh environmental conditions. Whether used in cold climates or elevated temperature environments, this capacitor consistently delivers stable performance, making it suitable for automotive, industrial, and consumer electronic devices.

Another important attribute of this capacitor is its capacitance tolerance, which is tightly controlled at +/-5%. Such precision ensures that the capacitance value remains very close to the nominal specification, which is crucial for applications where accurate timing, filtering, or tuning is required. The +/-5% tolerance level reflects the high manufacturing standards and quality control processes employed in producing these capacitors, guaranteeing consistency and reliability in circuit performance.

The Metalized Polypropylene Film Capacitor offers several advantages over other types of film capacitors. Its metallized film construction allows for self-healing properties, meaning if a dielectric breakdown occurs, the metallized layer around the fault vaporizes and isolates the defect, preventing permanent damage and extending the capacitor’s lifespan. Additionally, polypropylene as a dielectric material provides low dielectric absorption, excellent insulation resistance, and minimal dielectric losses, contributing to high efficiency and reduced energy dissipation in electronic circuits.

Due to these properties, Metallizing Polypropylene Capacitors are extensively used in applications such as signal processing, power factor correction, filtering, timing circuits, and energy storage. Their reliability under varying electrical and environmental conditions makes them a preferred choice for engineers and designers seeking durable and high-performance capacitors.

In summary, the Metallized Polypropylene Film Capacitor is a versatile and reliable component featuring a rated voltage range of 50V to 1000V, through-hole mounting with lead spacing options from 2.5mm to 10mm, an operating temperature range of -40°C to +85°C, and a precise capacitance tolerance of +/-5%. Its superior electrical characteristics, self-healing capability, and robust design make it an ideal solution for a wide variety of electronic applications. Whether referred to as a Metallizing Polypropylene Capacitor, Metallizing Film Capacitor, or Metalized Polypropylene Film Capacitor, this product delivers outstanding performance and dependability in demanding environments.

Features:

• Product Name: Metallized Polypropylene Film Capacitor
• Type: Metalized Film Capacitor, Metallized Polypropylene Capacitor, Polypropylene Film Capacitor
• Capacitance Tolerance: +/-5%
• Dissipation Factor: ≤0.1
• Lead Type: Radial, Axial
• Lead Length: 5mm - 50mm
• Capacitance Range: 0.01uF - 2.2uF

Technical Parameters:

Applications:

The Metalized Polypropylene Film Capacitor from the reputable CL brand, originating in China, is widely recognized for its exceptional performance and reliability in various electronic applications. With a capacitance range of 0.01uF to 2.2uF and an impressive insulation resistance of >=10000MΩ, this capacitor ensures stable and efficient operation in circuits requiring precise energy storage and filtering capabilities. Its compact size, featuring diameters from 6.3mm to 18mm and lengths from 6.3mm to 20mm, combined with versatile lead lengths ranging from 5mm to 50mm, makes it adaptable to a wide range of design requirements. Packaged conveniently in Tape and Reel format, it facilitates automated assembly and high-volume production processes.

In terms of application occasions and scenarios, the Metalized Polypropylene Capacitor is ideal for use in consumer electronics, automotive electronics, industrial control systems, and telecommunications equipment. Its high insulation resistance and stable capacitance make it perfect for signal filtering, noise suppression, and energy storage in audio systems, power supplies, and motor drives. Additionally, the Metalized Polypropylene Film Capacitor is extensively used in precision timing circuits and pulse applications where reliable and consistent performance is critical.

The polypropylene dielectric layer in the Metalized Polypropylene Capacitor provides excellent thermal stability and low dielectric loss, which enables the capacitor to perform efficiently in environments with fluctuating temperatures and high-frequency operations. This makes it well-suited for scenarios such as inverter circuits, renewable energy systems, and lighting ballasts where durability and long service life are paramount. Furthermore, the CL Metalized Polypropylene Film Capacitor’s robust construction and high insulation resistance ensure safe operation in safety-critical applications, including medical devices and aerospace electronics.

Thanks to its well-engineered design and premium materials, the CL brand’s Polypropylene Film Capacitor is a preferred choice for engineers and designers seeking a reliable capacitive solution that balances size, performance, and longevity. Whether it is for prototyping or full-scale manufacturing, the Metalized Polypropylene Film Capacitor offers versatility and efficiency across a multitude of application scenarios, reaffirming its role as a fundamental component in modern electronic systems.

Customization:

Our Metallized Polypropylene Film Capacitor customization services by CL offer a wide range of options to meet your specific needs. Manufactured in CHINA, these Metalized Film Capacitors feature a dissipation factor of <=0.1, ensuring high efficiency and reliability in your applications.

We provide various capacitance values ranging from 0.01uF to 2.2uF, allowing you to select the perfect Metallizing Film Capacitor for your circuit requirements. The capacitors come with through-hole mounting type for easy installation and stable performance.

Additionally, you can customize the lead length from 5mm to 50mm to suit your design specifications. Our Metalized Polypropylene Capacitors are available in tape and reel packaging, facilitating automated assembly and minimizing handling damage.

Trust CL for high-quality, customizable Metallized Polypropylene Film Capacitors that combine excellent electrical characteristics with flexible design options tailored to your project.

Support and Services:

Our Metallized Polypropylene Film Capacitors are designed to offer superior performance and reliability in a wide range of applications. To ensure optimal operation and longevity of the product, we provide comprehensive technical support and services.

Technical support includes detailed product datasheets, application notes, and design guidelines to assist in the proper selection and integration of the capacitors into your circuits. Our engineering team is available to provide consultation on the best practices for mounting, handling, and usage to maximize capacitor life and performance.

We also offer failure analysis and troubleshooting support to quickly identify and resolve any issues that may arise during the product lifecycle. Our quality assurance processes ensure that each capacitor meets stringent industry standards and specifications.

Additionally, we provide custom solutions tailored to specific requirements, including specialized capacitor configurations, voltage ratings, and capacitance values. Our dedicated service team works closely with customers to deliver products that meet unique application needs.

For ongoing product updates, technical bulletins, and software tools related to Metallized Polypropylene Film Capacitors, customers can access our online resources and support portals.

Packing and Shipping:

Our Metallized Polypropylene Film Capacitors are carefully packaged to ensure maximum protection during transit. Each capacitor is individually wrapped in anti-static material to prevent any damage from electrostatic discharge. The capacitors are then placed in sturdy, cushioned boxes that provide shock absorption and prevent movement inside the packaging.

For bulk orders, capacitors are organized in trays or reels, securely sealed and labeled for easy identification. The packaging materials used are environmentally friendly and comply with international shipping standards.

We offer multiple shipping options to accommodate your delivery needs, including air freight, sea freight, and express courier services. All shipments are tracked and insured to guarantee safe and timely arrival. Our logistics team ensures that your Metallized Polypropylene Film Capacitors reach you in perfect condition and on schedule.

FAQ:

Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?

A1: The brand name of this capacitor is CL.

Q2: Where is the CL Metallized Polypropylene Film Capacitor manufactured?

A2: This capacitor is manufactured in China.

Q3: What are the typical applications of CL Metallized Polypropylene Film Capacitors?

A3: These capacitors are commonly used in power electronics, filtering, coupling, and decoupling applications, as well as in energy storage and pulse circuits.

Q4: What are the key benefits of using Metallized Polypropylene Film Capacitors from CL?

A4: CL Metallized Polypropylene Film Capacitors offer high insulation resistance, low dissipation factor, excellent stability, and long service life, making them ideal for reliable and efficient circuit performance.

Q5: What voltage ratings are available for CL Metallized Polypropylene Film Capacitors?

A5: CL capacitors are available in a variety of voltage ratings to suit different application needs, typically ranging from a few hundred volts up to several thousand volts. Please refer to the product datasheet for specific voltage options.
