Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm
Specifications
Brand Name :
HOWFINE
Model Number :
CBB21-B 105J400V P15mm
Place of Origin :
China
MOQ :
5000 Pieces
Price :
RMB 0.35-0.38pcs
Payment Terms :
T/T
Supply Ability :
300K Pieces per Month
Delivery Time :
10-15work days
Packaging Details :
250 pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs 8000 pcs/ box
Material :
metallizde polypropylene film
Features :
Flame retardant PBT shell encapsulation
Colour :
gray
Capacitance :
1.0uF
Package Type :
Through Hole
Operating Temperature: :
-40 ℃ ~ 105℃
Tolerance :
±5%(J)
Dissipation Factor :
less than 1%
Capacitance Range :
0.01uF-10uF
Application :
Widely used in high voltage,high frequency and pulse circuit
Pitch :
15mm
Performance :
Strong self-healing
Packing :
in bulk
Size :
18mm*16mm*10mm
Coating way :
Epoxy filled, PBT enclosure enclosed
Description

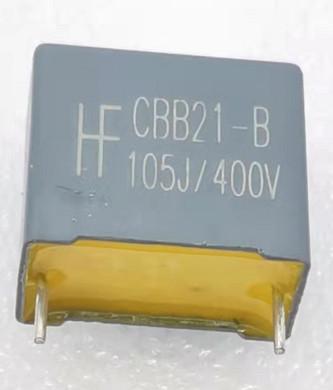

PBT-BOX polypropylene capacitor CBB21-B 105J400V gray P15mm

Features:

1. Excellent self-healing ability

2. Excellent temperature characteristic ability

3. Excellent flame resistance ability

4. Lower DF value and high insulation resistance
5. Low loss at high frequency
6. Small inherent temperature rise
7. Flame retardant epoxy, flame retardant PBT shell (UL94/V-0)

▇ Specifications

Climatic Category 40/105/21
Operating Temperation Range

-40 ℃ ～ 105℃

( +85℃ to +105℃; decreasing factor 1.25% per ℃ for vR (dc))
Ratde Voltage DC 250V,400V,630V 1000v
Capacitance Range 0.01µF～3.9 µF
Capacitance Tolerance ±5% (J), ±10%(k)
Voltage Proot 1.6UR (5s)
Dissipation Factor ≤10x10-4 (1kHz, 20℃)
Insulation Resistance

≥50000MΩ , CR≤0.33 µF

≥15000s, CR>0.33 µF (20℃ 100V 1min)

① W: capacitor body width

② H: Capacitance height

③ T :Capacitance thickness

④ P:he distance between two CP lines

⑤ d: Diameter of CP line
 Gray Waterproof Metalized Film Capacitor Anti Interference Length 1.8cm

▇ Typical Applications

● Widely used in high frequency,DC ,AC and pulse circuits

● Providing optimun performance with small size in S-correction circuits for colour TV

● Lamp capacitor for electronic ballast and compact lamps

● SNUBBER and SCR commutating circuits
