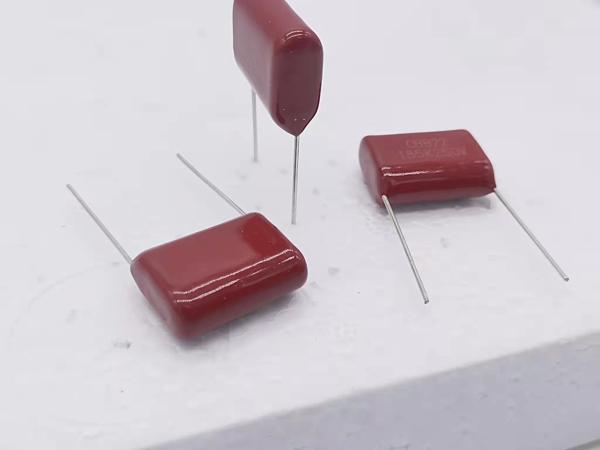

CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type
CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type
CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type
CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type
Specifications
Brand Name :
HOWFINE
Model Number :
CBB22 185K/250V
Place of Origin :
China
MOQ :
10000 Pieces
Price :
RMB 0.32-0.35/pcs
Payment Terms :
T/T
Supply Ability :
300K Pieces per Month
Delivery Time :
7-15work days
Packaging Details :
500 pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs 10000 pcs/ box
Material :
metallizde polypropylene structure
Features :
Flame ratardant epoxy resin powder coating
Colour :
Red
Capacitance :
1.8uF
Package Type :
Through Hole
Operating Temperature: :
-40 ℃ ~ 105℃
Tolerance :
±5%,
Dissipation Factor :
less than 1%
Capacitance Range :
0.01uF-10uF
Application :
Used of electronic transformers.
Pitch :
20mm
Performance :
Strong self-healing
Packing :
in bulk
Size :
22mm*16.5mm*8mm
Coating way :
Epoxy encapsulation (flame retardant
Description

Metallized polypropylene film capacitor CBB22 185K250V P20mm L4mm

Features:

1. Excellent self-healing ability

2. Excellent temperature characteristic ability

3. Excellent flame resistance ability

4. Lower DF value and high insulation resistance
5. Low loss at high frequency
6. Small inherent temperature rise
7. Flame retardant epoxy resin powder coating (UL94/V-0)

▇ Specifications

Climatic Category 40/105/21
Operating Temperation Range

-40 ℃ ～ 105℃

( +85℃ to +105℃; decreasing factor 1.25% per ℃ for vR (dc))
Ratde Voltage DC 100V ,250V,400V,630V
Capacitance Range 0.01µF～10 µF
Capacitance Tolerance ±5% (J), ±10%(k)
Voltage Proot 1.6UR (5s)
Dissipation Factor ≤10x10-4 (1kHz, 20℃)
Insulation Resistance

≥50000MΩ , CR≤0.33 µF

≥15000s, CR>0.33 µF (20℃ 100V 1min)

① W: capacitor body width

② H: Capacitance height

③ T :Capacitance thickness

④ P:he distance between two CP lines

⑤ d: Diameter of CP line
 CBB22 Red Metallised Polypropylene Capacitors , Anti Interference Capacitor Box Type

▇ Typical Applications

● Widely used in high frequency,DC ,AC and pulse circuits

● Providing optimun performance with small size in S-correction circuits for colour TV

● Specially designed for S-correction circuits of large screen monitor and colour TV

● Suitable for the situation where applies high frequency and high current pulse
