Specifications
Supply Ability :
1000
Brand Name :
saferlife
Model Number :
Class Ⅱb
MOQ :
2
Delivery Time :
30days
Payment Terms :
T/T
Price :
$265 50pieces+$255
Certification :
CE, ISO13485
Place of Origin :
China
Description

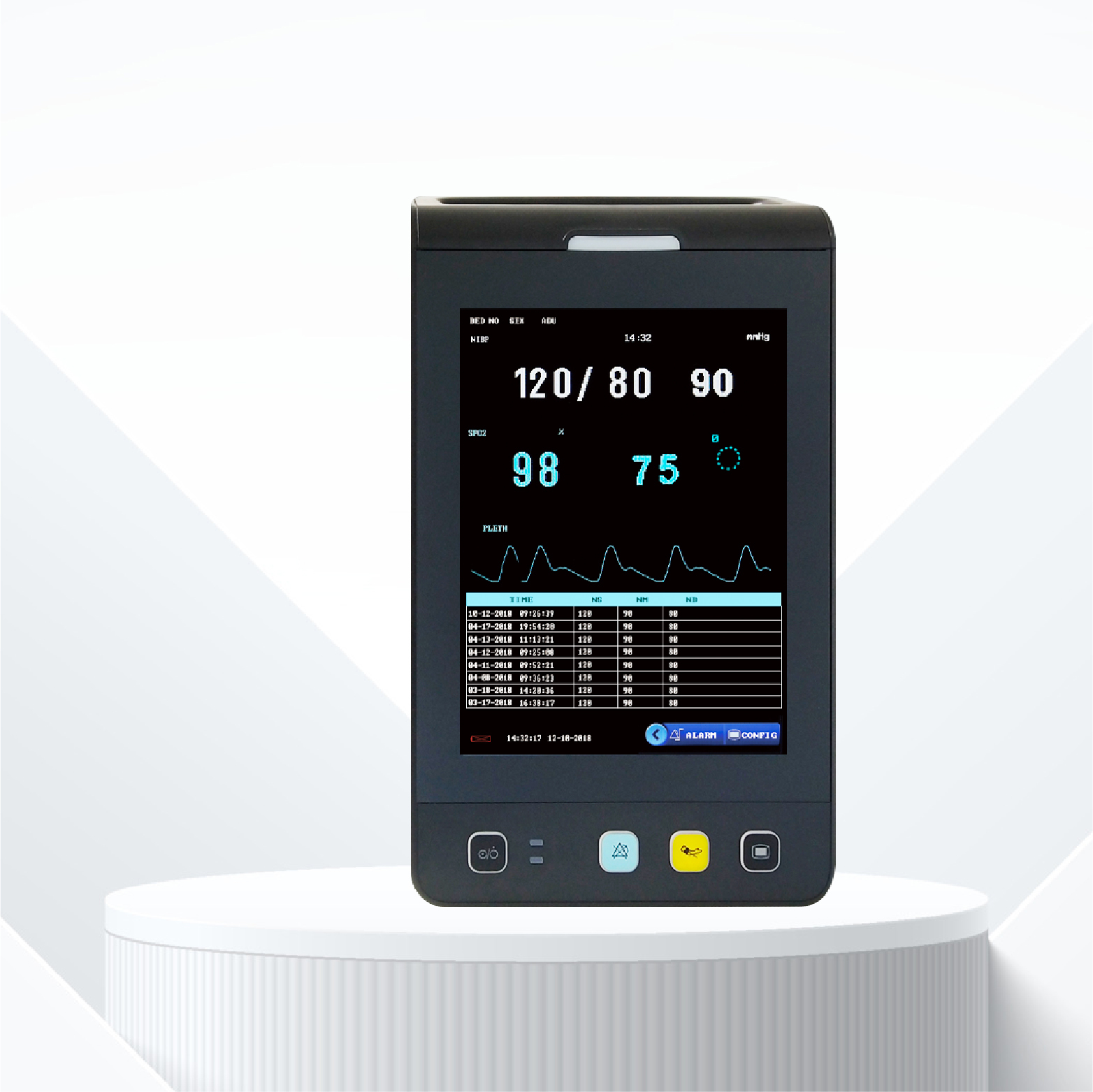

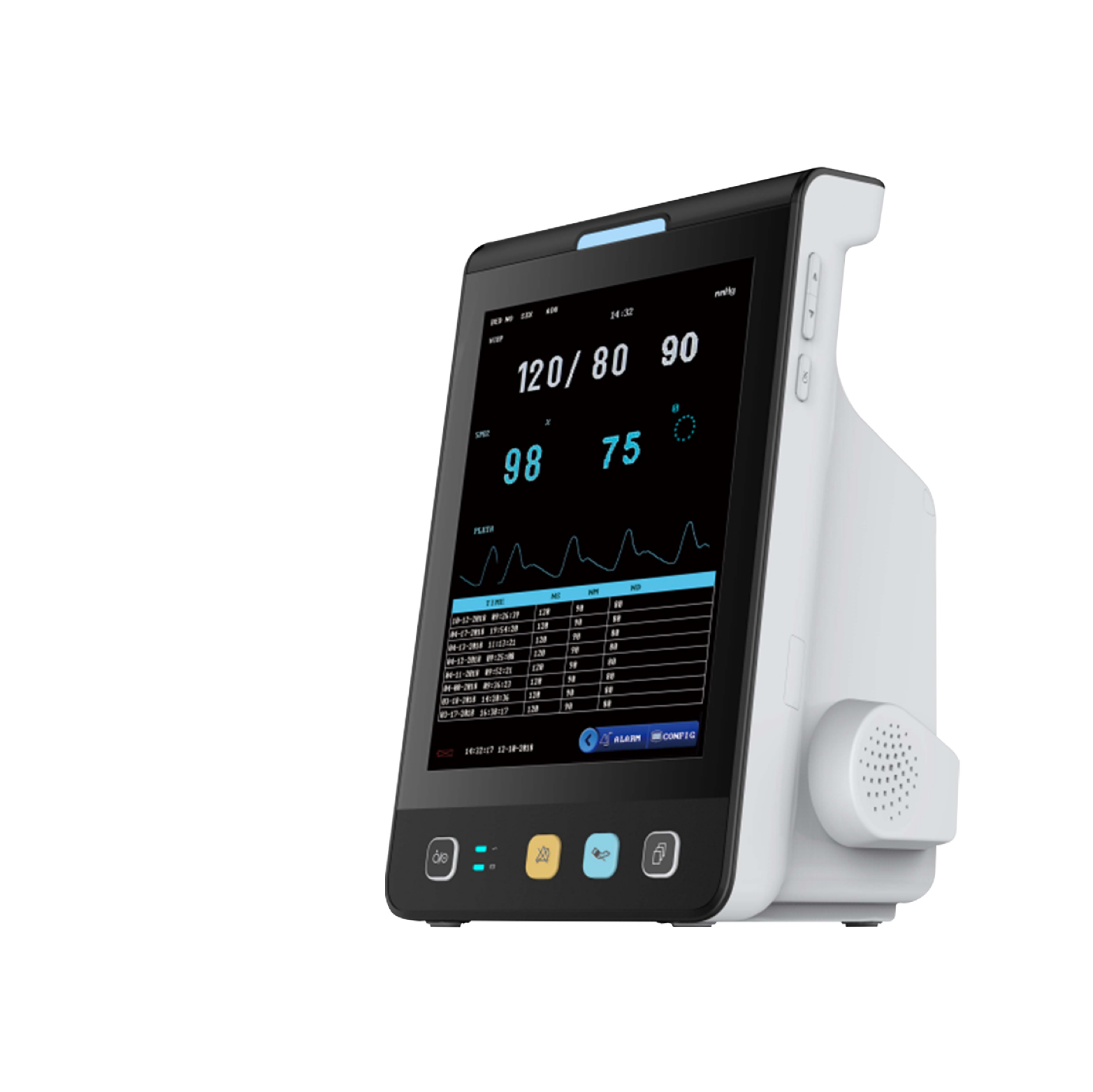

This E8 vital signs monitor is a compact medical monitoring device equipped with built-in rechargeable lithium battery, designed for adult, pediatric and neonatal monitoring in medical wards, surgical departments, clinics and emergency scenarios.

It features an 8-inch true-color TFT display with 800*600 resolution, fitted with three independent indicator lights: alarm indicator, working status indicator and battery charging indicator for real-time status reminder. The machine supports dual monitoring modules of SpO2 and NIBP, adopting oscillometric NIBP detection technology, with three optional measurement modes: Manual, Auto and STAT. In Auto mode, users can freely set measurement intervals from 1 minute to 480 minutes; STAT mode sustains continuous 5-minute rapid measurement for emergency use.
For non-invasive blood pressure, it sets segmented detection standards for three crowds:
  1. Adult: SYS 40–280mmHg, DIA 10–220mmHg, MEAN 20–240mmHg
  2. Pediatric: SYS 40–220mmHg, DIA 10–160mmHg, MEAN 20–170mmHg
  3. Neonatal: SYS 40–135mmHg, DIA 10–100mmHg, MEAN 20–110mmHg

    Static pressure testing range covers 0–300mmHg, with ±3mmHg measurement accuracy and 1mmHg resolution; the maximum mean error is ±5mmHg and maximum standard deviation is 8mmHg. Graded overpressure protection is built in: 300mmHg for adults, 240mmHg for children, 150mmHg for newborns to prevent pressure injury.
The pulse rate detection range is 20–300bpm, the alarm range is 40–240bpm, with 1bpm resolution and ±3bpm test accuracy. The monitor supports 12-hour data storage, which can record up to 200 alarm events for historical review and waveform playback.
Power supply supports dual AC and DC power: AC input 100~240V, 50/60Hz; built-in 11.1V 24Wh lithium-ion rechargeable battery. It can work continuously for 2 hours after full charge, and still maintain 5 minutes of monitoring after low battery alarm to ensure uninterrupted emergency treatment.
Standard accessories include NIBP cuff & connecting tube, SpO2 sensor, lithium-ion battery, power cable and operator manual. Optional upgraded accessories are high-precision clinical SpO2 sensor and Suntech NIBP cuff for higher precision clinical testing.

The main body size is approximately 164.2mm × 270.2mm with net weight of 2.5kg; outer package size is 360250290mm and gross weight is about 4kg.
Working environment: temperature 0°C–40°C, humidity 15%–80%, atmospheric pressure 86.0kPa–106.0kPa. Storage and transportation environment: temperature -20°C–55°C, humidity 10%–90%, atmospheric pressure 86.0kPa–106.0kPa.

Notice: All specifications are subject to change without prior notice.
