Specifications
Brand Name :
SAEF
Model Number :
SFTO430HD-7338A-CT
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 units (Negotiable for sample orders)
Price :
$15 – $17.00 / unit (FOB Shenzhen, based on order quantity)
Payment Terms :
T/T 50% deposit, 50% before shipment
Supply Ability :
3,000,000 units / month
Delivery Time :
1–5 weeks after order confirmation
Packaging Details :
Export-ready carton box
Display Size :
4.3-inch (480 × 272)
Display Brightness :
1000 cd/m² (Sunlight Readable)
Panel Technology :
IPS (In-Plane Switching)
Color Depth :
16.7 Million Colors
Contrast Ratio :
1000:1 (Typical)
Viewing Angle :
85° All Directions (CR≥10)
Touch Technology :
I2C Capacitive (G+G Structure)
Operating Temp. :
-35°C to +85°C (Industrial Range)
Interface :
RGB 24-bit Parallel
Driver IC :
ST7283 (RAM-less Architecture)
Backlight :
16-LED Edge Lit (4×4 Series)
Compliance :
RoHS/REACH, Halogen-Free
ESD Protection :
±8kV Air / ±4kV Contact (IEC 61000-4-2)
Special Features :
Glove/Wet Touch Support, IP65 Optional
Description

Industrial-Grade 4.3" TFT LCD for Harsh Environments

The SFTO430HD-7338A-CT integrates a high-brightness IPS panel with projected capacitive touch (PCT), engineered for German industrial automation and U.S. medical devices. With 1000 cd/m² luminance and 85° viewing angles, it delivers sunlight-readable performance in:

  • Extreme Temperatures: -30°C cold start / +80°C continuous operation (IEC 60068-2-1/2)
  • Wet Conditions: Functional with fog/water droplets on surface (IEC 60529 IP65 option)
  • EMI-Noisy Settings: RGB 24-bit interface with ±8kV ESD protection (IEC 61000-4-2)

Key Technical Specifications

Parameter Min. Typ. Max. Conditions
Power Consumption - 40mA - Full white @ 2.8V
Response Time (GtG) - - 40ms Black↔White transition
Touch Sensitivity 0.5mm - 2mm Glove operation
Vibration Resistance 10Hz - 55Hz 1.5mm amplitude, XYZ axis
LED Lifespan (L70) 25k hrs 40k hrs - Ta=25°C

Competitive Advantages for EU/US Markets

① German Industrial Durability

  • Chemical-Hardened Glass: 6H pencil hardness (DIN 58196)

  • Sealed Bonding: AIR/OCA/OCR lamination options prevent moisture ingress

  • Shock Protection: ISTA 3A-certified packaging (60cm drop tested)

② Precision Touch for Medical Use

  • Medical-Grade CTP: EN 60601-1 compliant, glove-compatible FT5446 controller

  • Zero Interference: 85% light transmission with ≤2% signal loss

③ Energy-Efficient Design

  • Backlight Optimization: 2.8V forward voltage (80mA max)

  • Sleep Mode: <1μA standby current for battery-powered systems

Target Applications

Industry Critical Use Cases
German Machinery CNC control panels, robotic HMIs
U.S. Medical Portable diagnostic monitors
Transportation Railway dashboard displays
Energy Solar inverter status panels

Compliance & Certification

▸ EU: RoHS 2011/65/EU, REACH Annex XVII, EN 62368-1
▸ U.S.: FCC Part 15B
▸ Quality: AQL 0.65 sampling, 0 dead pixel policy

Mechanical Dimensions

SFTO430HD-7338A-CT 4.3

Product Information

Item Specification Unit
LCD Size 4 . 3 ” inch
Panel Type IPS

-
Resolution 480xRGBx272 Pixel
Display Mode Normally Black

-
Number of Colors 16.7M

-
Viewing Direction ALL

-
NTSC 50%

-
Contrast Ratio 1000

-
Luminance 1000 cd/m2
Module Size 67.20(H)x105.5(V)x2.92(D) mm
Panel Active Area 95.04X53.86 mm
Pixel Pitch 0.198x0.198 mm
Pixel Arrangement RGB-stripe
Weight TBD g
Driver IC ST7283

-
Driver IC RAM Size RAM less bit
Light Source 1 6 LED Chips

-
Interface RGB 24BIT

-

Operating Temperature

 -30~+80 ℃
Storage Temperature -35~+85 ℃

CTP Specification

Category Parameter Specification

General

 Structure Cover Glass + ITO Sensor Glass (G+G)
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥85%
Operation Temperature -30℃ ~ +80℃, ≤90% RH
Storage Temperature -35℃ ~ +85℃, ≤90% RH

Electrical

 Interface I2C
Touch IC FT5446
Power Supply Voltage (VDD) 2.8V ~ 3.3V
Host Resistance (SDA/SCL) Configurable on Main-board

Environmental

Operating Conditions

 Functional in fog/ surface water/Glove

Surface

Properties

 Surface Ink Clear type
Surface Treatment Customizable
LCD-TP Lamination AIR, OCA and OCR Bonding Optional
Compliance Material Standards RoHS & Halogen-Free Compliant

Interface Pin Definition

Pin No. Symbol

Function
1 LEDK Backlight cathode
2 LED_A Backlight anode
3 GND Ground
4 VCC Analog Power Supply for LCM( 2.8V )
5-12 R0-R7 Data bus
13-20 G0-G7 Data bus
21-28 B0-B7 Data bus
29 GND Ground
30 CLK Pixel clock signal in RGB I/F
31 DISP Display
32 HSYNC Horizontal sync . Signal in RGB I/F
33 VSYNC Vertical sync . Signal in RGB I/F
34 DEN Data enable signal in RGB I/F DE mode
35 NC
36 GND Ground
37 XR Touch panel pin
38 YD Touch panel pin
39 XL Touch panel pin
40 YU Touch panel pin

Absolute Maximum Ratings

Item Symbol Value Unit Remark
Analog Power Supply Voltage VDD -0.3~+4.6 V

-
Logic Input Voltage Range VIN -0.3 ~VDDI+0.3 V

-
Logic Output Voltage Range VO -0.3 ~VDDI+0.3 V

-

Typical Operation Conditions

Item Symbol Min. Typ. Max. Unit
Supply Voltage VDD 3.0 3.3 3.6 V
NVM Supply Voltage VPP 7.4 7.5 7.6 V
Input High Voltage VIH 0.7*VDD

-

 VDD V
Input Low Voltage VIL

DGND

-

 0.3*VDD V
Output High Voltage VOH VDD-0.4

-

 VDD V
Output Low Voltage VOL DGND

-

 DGND+0.4 V

Optical Characteristics

Item Symbol Condition Min. Typ. Max. Unit

Viewing

Angle Range

 Left θL

CR≧10

 80 85

-

degree
Right θR 80 85

-
Top θT 80 85

-
Bottom θB 80 85

-

Response Time

Ton+Toff

θ=Ф=0˚

-

 40

ms
Contrast Ratio

CR

θ=Ф=0˚

 800 1000

-

-
Luminance L θ=Ф=0˚ 1000

-

 cd/m2

Color

Chromaticity (CIE1931)

White

 Wx

Normal

θ=Ф=0˚

 0.307

-
Wy 0.33

Red

 Rx 0.608
Ry 0323

Green

 Gx 0.317
Gy 0.549

Blue

 Bx 0.145
By 0.138
Uniformity UL θ=Ф=0˚

-

 80

-

 %

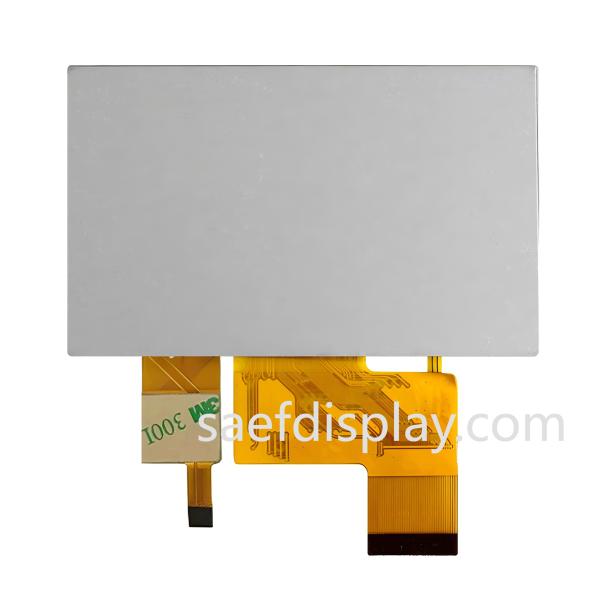

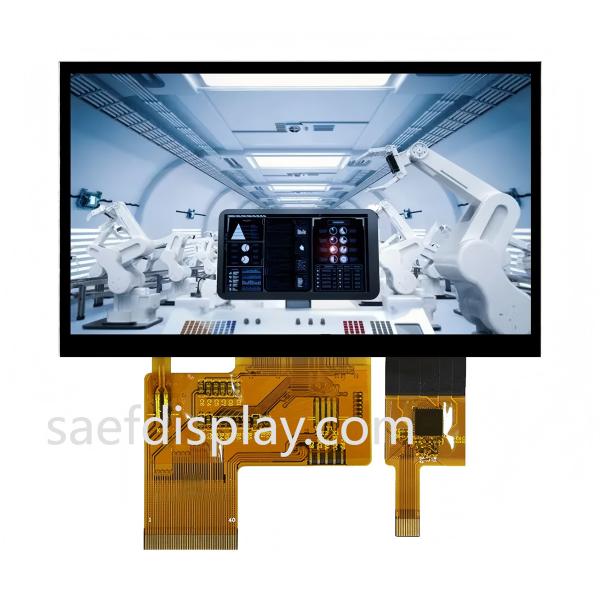

Product Image

SFTO430HD-7338A-CT 4.3

SFTO430HD-7338A-CT 4.3
