Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module
Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module
Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module
Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module
Specifications
Brand Name :
SAEF
Model Number :
SFBM12864JH-7294AN
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
The lowest market price guaranteed
Payment Terms :
PayPal, T/T
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Display Resolution :
128 x 64 Dots
Display Type :
FSTN (Positive/Negative)
View Direction :
6 O'clock
Driver IC :
ST7567
Interfaces :
Parallel/Serial (4-Line SPI)
Backlight :
3x White LEDs (3.0V, 45mA)
Operating Voltage :
1.7–3.3V (VDD)
Operating Temp :
-20°C to +70°C
Storage Temp :
-30°C to +80°C
Outline Size :
58.70 × 38.50 × 4.50 mm
Viewing Area :
53.60 × 29.00 mm
Warranty :
1 Year Functional Defect Coverage
Life Time :
40,000 hours
Compliance :
REACH & RoHS Compliant
Description

Product Description

SFBM12864JH-7294AN is a high-reliability 128x64 monochrome graphic LCD module engineered for demanding industrial and embedded applications. Featuring an ST7567 driver IC, FSTN display technology, and 6 o’clock viewing direction, it delivers crisp visuals with wide-temperature operation (-20°C to +70°C). Ideal for German and US markets seeking ISO-certified quality.

Key Features

  • Robust Interface: Supports 6800/8080 parallel & 4-line serial SPI for flexible MCU integration (Arduino, Raspberry Pi, STM32).

  • Optimized Backlight: 3x energy-efficient white LEDs (3.0V, 45mA) with uniform illumination.

  • Extended Durability: Certified for shock/vibration (MIL-STD-202G), ESD protection (±2kV), and humidity resistance (95% RH, 500 hrs).

  • Easy Integration: 30-pin FPC connector with pin-compatible replacements for common 128x64 modules.

Technical Specifications

  • Power: 1.7–3.3V DC (typ. 150μA @ 3.0V, display ON).

  • Timing: 240ns cycle time (3.3V) for high-speed data transfer.

  • Optics: 75Hz frame rate, 1/65 duty cycle.

  • Certifications: RoHS, REACH, ISO 9001/14001.

Applications

  • Industrial HMIs, medical monitors, automotive dashboards.

  • Smart sensors, IoT devices, laboratory equipment.

Warranty & Support

  • 1-year warranty against functional defects.

  • Critical Usage Note: Avoid static images >30 mins to prevent burn-in. Automatic sleep mode recommended.

Specifications

Item Contents Unit
LCD type FSTN POSITIVE/NEGATIVE -
Viewing direction 6:00 O’Clock
Module size (W×H×T) 58.70×38.50×4.50(excluded FPC length) mm
Viewing area (W×H) 53.60×29.00 mm
Driver IC ST7567 -
Number of dots 128X64 -
Backlight type 3 LEDS White 3.0V 45mA -
Interface type Serial/parallel interface -
Operating temperature -20 ~ 70 oC
Storage temperature -30 ~ 80 oC

Interface Pin Definition

Pin No. Symbol Pin Description
1 NC NC
2 PS Parallel/serial data input select input pin in parallel mode
3 C86 Microprocessor interface select input pin in parallel mode
4~8 NC NC
9 VG VG is the LCD driving voltage for segment circuits at positive frame
10 NC NC
11 NC NC
12 XV0 XV0 is the LCD driving voltage for common circuits at positive frame
13 V0 V0 is the LCD driving voltage for common circuits at negative frame
14 NC NC
15 NC NC
16 VSS Ground
17 VDD Power supply(+3.0)
18~25 D7-D0 Data bus
26 RD/E Read select signal
27 WR Write select signal input
28 A0 Data or command select signal input
29 RES A reset pin.
30 CS Chip select signal input(low active)

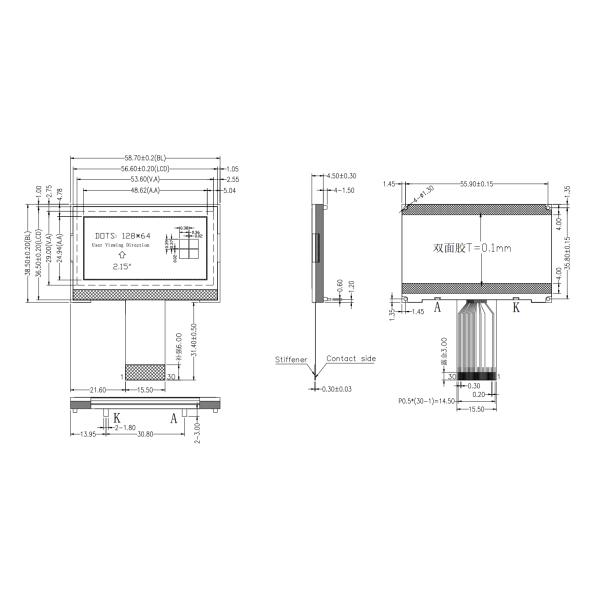

Mechanical Outline Dimensions

Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module

Electronical Characteristics

Characteristic Symbol Standard Value Unit
MIN TYP MAX
Power Supply Voltage(1) VDD 3.1 3.3 3.5 V
Power Supply Voltage(2) LCD 9.6 9.8 10.0 V
Display pattern Current IDD 0.58 1.4 mA
Input leakage Current IIL 1.5 uA
Input logic LOW VIL 0.2VDD
Input logic HIGH VIH 0.8VDD
output logic LOW VOL 0.2VDD
output logic HIGH VOH 0.8VDD
Operating Temperature TOPR -20 － +70 °C
Storage Temperature TSTG -30 － +80 °C

Optical Characteristics

Item Symbol Temp(℃) Rating Unit
Min Typ Max
Response Time Rise Time Tr 25 200 ms
Fall Time Tf 25 200
Frame Frequency FR 25 64 Hz
Viewing angle Cr≧2 θ=90 θ1 25 15 Deg
θ=270 θ2 35
θ=0 θ3 30
θ=180 θ4 30
Viewing Direction 6 O'clock
Contrast Ratio Cr 25 2 --
Current Consumption Is 25 6 uA
Capacitance C 25 5 nF

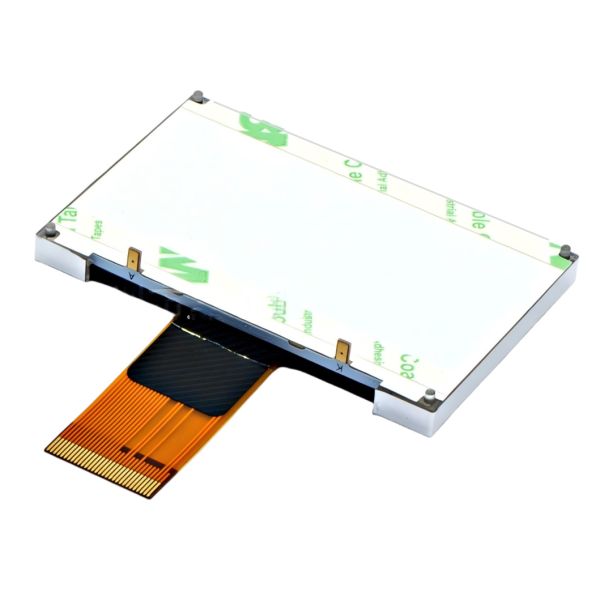

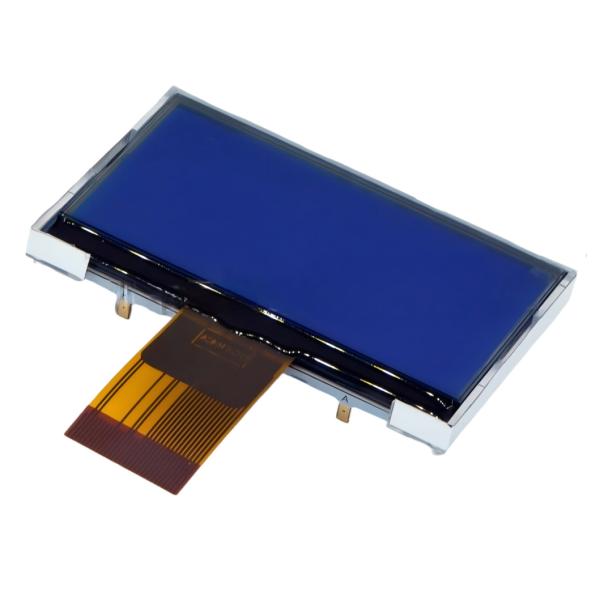

Product Image

Graphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display ModuleGraphic Dot Matrix FSTN COG LCD 128x64 Dot VDD 3.3V Monochrome Display Module
