Industrial 10.1-inch HD Touch Monitor | 10-point Touch, Multi-interface (DC12V/VGA/HDMI/AV/USB/BNC) for Surveillance & Control

Product Introduction

Core Advantages

HD Display, Vivid Colors

• 1920(H)×1200(V) pixel resolution, with a pixel density of up to 224PPI, ensuring sharp and clear image details;
• 8-bit color depth supports 16.7M color display, and 72% NTSC color gamut coverage restores true colors;
• Typical brightness of 320cd/m² (minimum 275cd/m²), ensuring clear visibility even in strong light environments;
• 80°/80°/80°/80° (CR>10) wide viewing angle, with no color shift when viewed from any angle.

Precise Touch, Smooth Operation

• Equipped with the industry-proven ILITEK 2511 touch controller, supporting 10 simultaneous touch points with a response time of ≤10ms;
• 217.36mm×136mm large touch area, precisely matching the display area with no touch offset;
• The surface undergoes HC hardening treatment with a hardness of >6H, which is scratch-resistant and wear-resistant, supporting both finger and stylus operation modes;
• Direct connection via USB Type-C interface, plug-and-play, compatible with mainstream systems such as Windows and Android1.

Stable and Durable, Adaptable to Multiple Scenarios

• Wide temperature design: operating temperature 0~60°C, storage temperature -20~60°C, adapting to complex high and low temperature environments;
• Compatible with 10%~90% operating humidity, fearless of humid or dry environments, ensuring stable operation;
• Full flat design, with a smooth surface that is easy to clean, reducing dust accumulation, suitable for long-term use;
• 2mm ultra-thin touch screen + 2.4mm thin panel, with an overall body thickness of only 37.3mm, saving installation space1.

Rich Interfaces, Flexible Adaptation

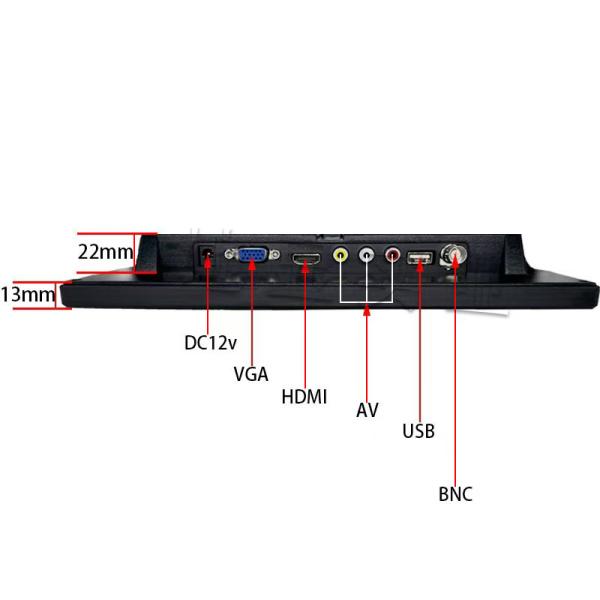

• Comes with a DC12V power port for stable power input, a VGA interface for analog signal connections (ideal for legacy devices), an HDMI port for high - definition digital signal transmission, AV ports to support common audio - visual device connections, a USB port for data transfer or peripheral expansion, and a BNC port (commonly used in surveillance systems). This wide range of interfaces allows seamless integration with various devices like computers, cameras, set - top boxes, and surveillance equipment.

Product Parameters

Mechanical Outline Drawing

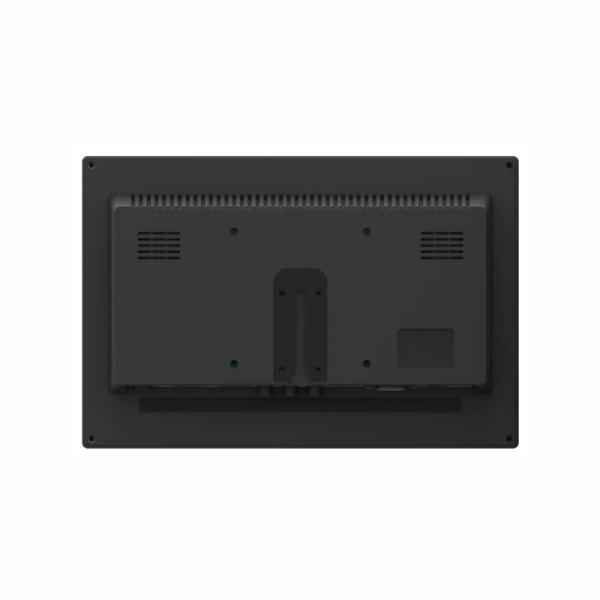

Product Details

Application Scenarios

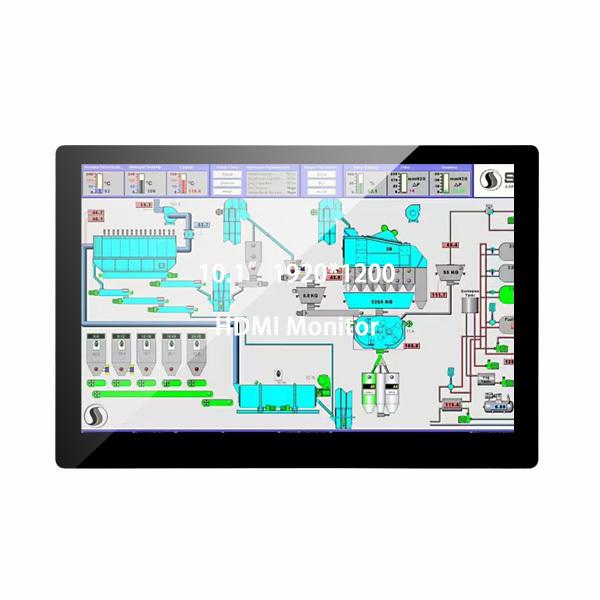

• Industrial Control: Combined with PLC equipment to realize visual touch operation of production line parameters;
• Smart Home: Used as a central control screen to centrally control lighting, air conditioning, security and other equipment;
• Education and Training: Used as an interactive teaching whiteboard, supporting multiple people to annotate and draw at the same time;
• Vehicle-mounted Display: Adapted to RVs and special vehicles, providing touch interaction for navigation and entertainment systems.

Purchase and Support

• In stock, supporting bulk customization (such as interface expansion, surface LOGO printing)
• 1-year warranty and lifetime technical support
• Contact us now for quotations or samples to adapt to your exclusive scenarios!

Note: Product parameters are subject to actual shipment. For technical questions, please feel free to consult customer service.
