Specifications
Brand Name :
SAEF
Model Number :
LS140T-3566
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
2 pcs
Price :
Negotiable based on order quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
14" Portrait Digital Signage Display
Resolution :
1080*1920 dots
Brightness :
300 cdm2
Display area :
175.8×311.6mm (16:9)
CPU :
RK3566
RAM :
4GB
ROM :
32GB
System :
Android 11/13 OS
WIFI :
802.11b/g/n
Multi-Media :
Video/Audio/Picture
Speaker :
2×2W speakers
Camera :
Standard 200W pixel camera
Adapter :
One, 12V/2A
POE :
Option
LED Light :
Option
operation instructions :
Yes
Description

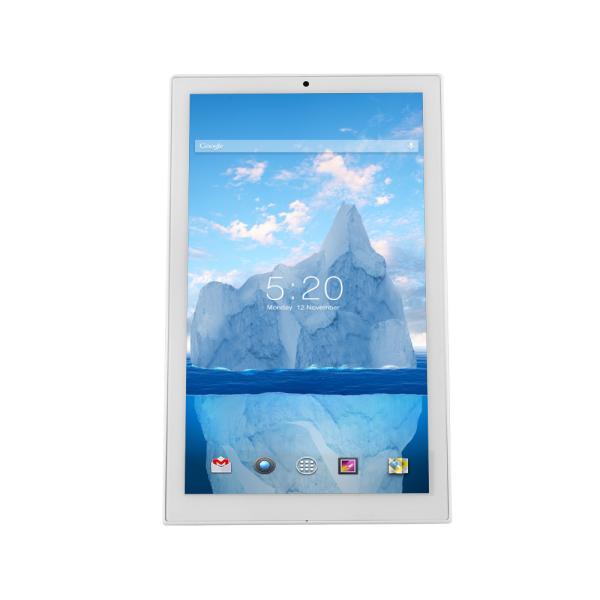

Portrait Digital Signage Display | 1080×1920 Android Kiosk (FCC/CE Certified)
Optimized for vertical orientation, this 14-inch commercial-grade Android tablet features a 1080×1920 IPS display, ideal for digital menus, interactive wayfinding, and information boards. Equipped with POE power supply and a built-in battery (supporting 12+ hours of UPS backup), it ensures reliable operation as a wall-mounted control panel. The RK3566 processor enables seamless multitasking, while dual USB ports and HDMI output support external devices like printers and barcode scanners.
With multi-language OSD (including Arabic) and pre-installed app frameworks, it deploys quickly in fast-food restaurants, museums, and religious sites. The high-brightness display (300nits) shines in POS systems, while rugged construction withstands 0–50°C environments. Certified for FCC/CE, this portrait digital signage combines industrial durability with versatile functionality for mission-critical applications.

Features

Display Screen 14 inch IPS screen
Resolution 1080x1920
Brightness 300 cdm2
Contrast 1000:1
Screen scale/Display area 16:9/ Display area : 175.8×311.6mm
Configuration CPU Rockchip RK3566
RAM 4GB
ROM 32GB
System Android 11/13 system
Network WIFI 802.11b/g/n
Ethernet Supports connection to the RJ45 network interface
Bluetooth BT 4.2
3G/4G Support external 3G/4G USB dongle
Jack TF 1×TF card slots (max support 32GB)
USB 2.0 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
Earphone 1×3.5mm headphone jack
HDMI out 1xHDMI out
Power 1×5.5x2.1mm power DC jack
Multi-Media Video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
Picture JPEG,JPG
Other parameters Wireless mouse keyboard Support
Speaker 2×2W speakers
Camera Standard 2.0MP pixel camera (5.0MP pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Software support Free installation applications (maps, games, e-mail, self developing apps, etc.)
Attachment Adapter One, specifications: 12V/2A
User's Manual One

Package

Body Size Color Box 6pcs/Carton
Length Width Thickness Length Width Height Length Width Height
345 205 116 395 170 255 780 405 275
N.W 1.18KG N.W 1.73KG N.W 10.4KG

Unit: mm



Mechanical Outline Drawing
