3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
Specifications
Brand Name :
SAEF
Model Number :
SFTM320XM-7169AT
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
USD6 for 10K pcs
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
3.2inch SPI Module
Module Structure :
TFT+RTP+SPI PCB
Resolution :
240x320 dots
Interface :
4 wire SPI
Touch screen :
with Resistive Touch Screen
Driver IC :
ILI9341
Outline Dimension :
55.04x89.3 (mm)
Active Area :
48.6x64.8 (mm)
Pin number :
14 pins
Operating Temp. :
-20℃~70℃
Storage Temp. :
-30℃~80℃
Working Voltage :
3.3V / 5V
Power Consumption :
~90mA
Weight :
~25g
Certificate :
ISO9001:2015 / ISO1400:2015
Compliance :
Rohs & Reach Compliant
Description

3.2 inch SPI Serial Interface TFT Module Product Introduction

SFTM320XM-7169AT is a 3.2 inch LCD module adopting a 4-wire SPI communication method, with a driver IC of ILI9341, a resolution of 240x320, and touch function (optional). This module includes an LCD display screen, backlight control circuit, and touch screen control circuit.

  1. 3.2-inch full color TFT screen, supporting 16 bit RGB 65K color display, displaying rich colors
  2. 240X320 high-definition resolution, optional touch function
  3. Using SPI serial bus, only a few IOs are needed to light up the display
  4. Equipped with an SD card slot for easy expansion of experiments
  5. Provide rich example programs
  6. Military grade process standards, long-term stable operation
  7. Provide technical support for underlying drivers

Feature

Product: 3.2inch SPI Module
Module Structure: TFT+RTP+SPI PCB
Resolution: 240x320 Dots
Interface: 4 Wire SPI
Touch Screen: With Resistive Touch Screen
Driver IC: ILI9341
Outline Dimension: 55.04x89.3 (mm)
Active Area: 48.6x64.8 (mm)
Pin Number: 14 Pins
Operating Temp.: -20℃~70℃
Storage Temp.: -30℃~80℃
Working Voltage: 3.3V / 5V
Power Consumption: ~90mA
Weight: ~25g

Hardware Configuration

The hardware circuit of this LCD module consists of three main parts: LCD display control circuit, touch screen control circuit, and backlight control circuit.


1, The LCD display control circuit is used to control the pins of the LCD, including control pins and data transmission pins.
2, The touch screen control circuit can control the touch screen touch response and touch coordinate reading (touch screen optional).
3, The backlight control circuit is used to control the backlight brightness and dimming. Of course, if backlight control is not required, this circuit can be omitted and the backlight control pin can be directly connected to a 3.3V power supply.

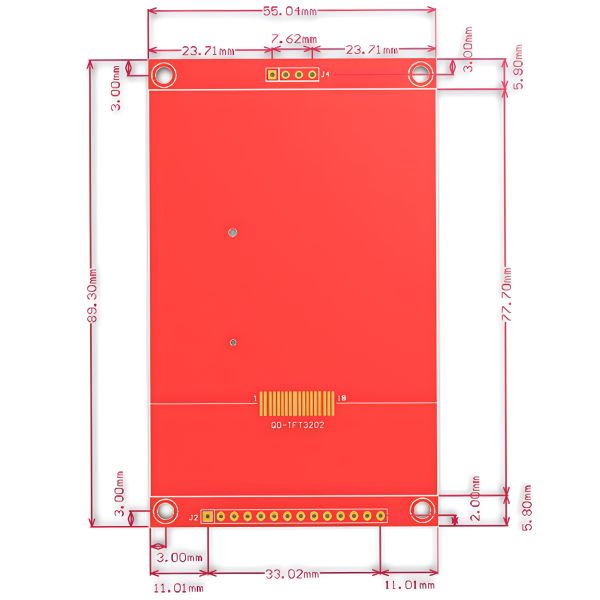

3.2 inch SPI Serial Interface TFT Module Product Drawing

3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots

Pin Definition

No Pin Description
1 VCC LCD Power supply positive (3.3V~5V)
2 GND LCD Ground
3 CS LCD Chip Select
4 RESET LCD RESET
5 DC/RS LCD Register/Data Selection Signal
6 SDI(MOSI) LCD SPI Bus write data signal
7 SCK LCD SPI Bus clock signal
8 LED

Backlight control signal (high-level illumination,

if no control is required, please connect to 3.3V)
9 SDO(MISO) LCD SPI bus read data signal (if not needed, it can be disconnected)

The following are touch screen pins.

If they do not have touch or do not require touch function, they can be disconnected
10 T_CLK Touch screen SPI bus clock signal
11 T_CS Touch screen chip selection signal
12 T_DIN Touch screen SPI bus input signal
13 T_DO Touch screen SPI bus output signal
14 T_IRQ Touch screen touch interrupt signal

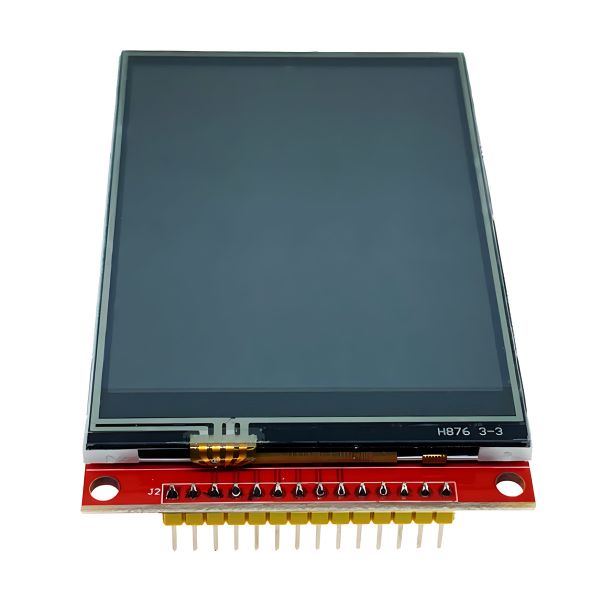

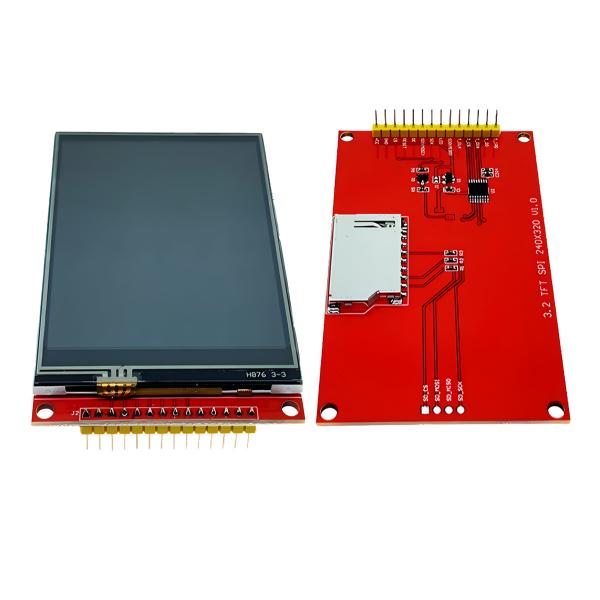

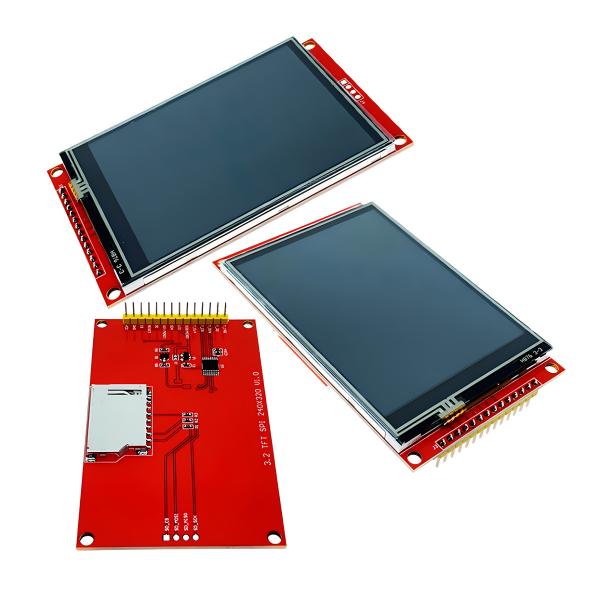

3.2 inch SPI Serial Interface TFT Module Product Image

3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots3.2-Inch SPI Serial Port TFT LCD Screen Display Module ILI9341 Driver LCD Touch Screen 240x320 Dots
