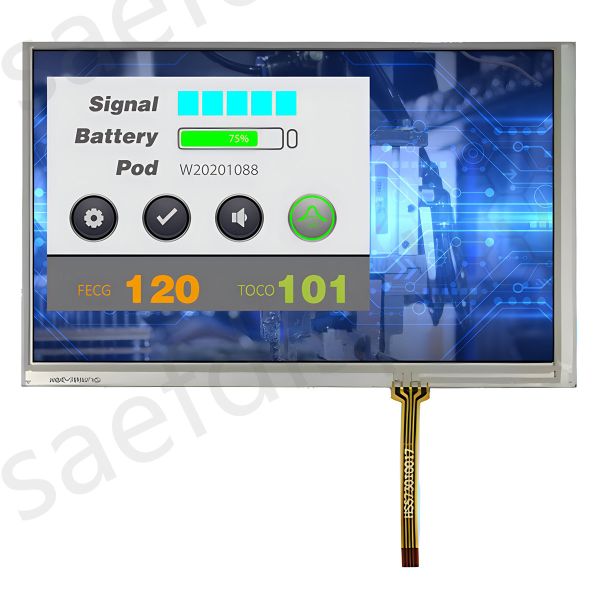

7" TFT 800x480 dots with RTP product introduction

Model No. : SF-TC700I-9239D-T (Fully compatible with Innolux AT070TN83)

SF-TC700I-9239D-T is a 7-inch TN transmissive color active matrix TFT LCD display equipped with a resistive touch panel and a resolution of 800x480 dots. The module size is 165 (width) X104 (height) X6.5 (depth) mm; Effective area 152.4 (W) X91.44 (H) mm. This TFT monitor supports a 24 bit RGB interface. With the help of anti glare display surfaces, the screen does not reflect light and maintains better image quality.

The contrast ratio of this module is 500:1 (typical value), and the brightness is 300 nits (typical value). The power supply voltage range of LCM is 3.0~3.6V, with a typical value of 3.3V. This module operates within a temperature range of -20 to+70 ℃, with storage temperatures ranging from -30 to+80 ℃.

Features

Item Specification
LCD size 7.0 inch(Diagonal)
Driver element a-Si TFT active matrix
Resolution 800X3(RGB)X480
Display mode Normally white, Transmissive
Dot pitch 0.0635(W)X0.1905(H) mm
Active area 152.4 (W)X91.44 (H) mm
Module size 165(W)X104(H)X6.5(D) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface Digital (TTL)
Backlight power consumption 2.500W (Typ.)
Panel power consumption 0.825W (Typ.)

7" TFT 800x480 dots with RTP Product Drawing

7 Inch TFT LCD Display Innolux AT070TN83 800x480 Dots 40 Pins RGB Interface With RTP

7 Inch TFT LCD Display Innolux AT070TN83 800x480 Dots 40 Pins RGB Interface With RTP

Pin Definition

Pin No. Symbol I/O Function
1 VLED P Power supply for LED Driver
2 VLED P Power supply for LED Driver
3 ADJ I Adjust the led brightness with PWM Pulse
4 GLED P Ground for LED circuit
5 GLED P Ground for LED circuit
6 VCC P Power supply for digital circuit
7 VCC P Power supply for digital circuit
8 MODE I DE or HV mode control
9 DE I Data enable
10 VS I Vsync signal input
11 HS I Hsync signal input
12 GND P Power ground
13 B5 I Blue data input (MSB)
14 B4 I Blue data input
15 B3 I Blue data input
16 GND P Power ground
17 B2 I Blue data input
18 B1 I Blue data input
19 B0 I Blue data input(LSB)
20 GND P Power ground
21 G5 I Green data input(MSB)
22 G4 I Green data input
23 G3 I Green data input
24 GND P Power ground
25 G2 I Green data input
26 G1 I Green data input
27 G0 I Green data input(LSB)
28 GND P Power ground
29 R5 I Red data input(MSB)
30 R4 I Red data input
31 R3 I Red data input
32 GND P Power ground
33 R2 I Red data input
34 R1 I Red data input
35 R0 I Red data input(LSB)
36 GND P Power ground
37 DCLK I Sample clock
38 GND P Power ground
39 L/R I Select left or right scanning direction
40 U/D I Select up or down scanning direction

Typical Operation Conditions

Item Symbol Values Unit
Min. Typ. Max.
Power voltage VCC 3.1 3.3 3.5 V
VLED 4.8 5 5.2 V
Icc - 250 300 mA
Current consumption ILED - 500 550 mA
Input logic high voltage VIH 0.7VCC - VCC V
Input logic low voltage VIL 0 - 0.3VCC V
LED life time - 40,000 - - Hr

Optical Specifications

Item Symbol Condition Values Unit
Min. Typ. Max.
Viewing angle (CR≥ 10) θL Φ=180°(9 o’clock) 60 70 - degree
θR Φ=0°(3 o’clock) 60 70 -
θT Φ=90°(12 o’clock) 40 50 -
θB Φ=270°(6 o’clock) 60 70 -
Response time TON Normal θ=Φ=0°​ - 10 20 msec
TOFF - 15 30 msec
Contrast ratio CR 400 500 - -
Color chromaticity WX 0.26 0.31 0.36 -
WY 0.28 0.33 0.38
Luminance L 250 300 - cd/m2
Luminance uniformity YU 70 75 - %

7" TFT 800x480 dots with RTP Product Image

7 Inch TFT LCD Display Innolux AT070TN83 800x480 Dots 40 Pins RGB Interface With RTP

7 Inch TFT LCD Display Innolux AT070TN83 800x480 Dots 40 Pins RGB Interface With RTP
