Engineered for Demanding Applications: The 2.8-Inch Transflective TFT LCD Module

At Saef Technology Limited, we specialize in developing high-performance display solutions for engineers and system designers who require reliability, clarity, and flexibility in challenging environments. Our 2.8-inch Transflective TFT LCD Module (SFTO280PY-7422AN) is built to excel in both bright outdoor settings and low-light indoor conditions—making it the ideal choice for handheld meters, portable instruments, industrial HMIs, and medical devices.

Key Design Advantages for Engineers:

  • Superior Optical Performance in Any Light

With a 300 cd/m² high-brightness backlight and a transflective display technology, this module ensures excellent readability under direct sunlight while maintaining low-power operation in dim environments. The 500:1 contrast ratio and 60° wide viewing angle provide consistent visual quality from all orientations.

  • Dual Interface Flexibility: MCU & SPI

Designed for seamless integration, the module supports both 8080-series MCU parallel (8/16-bit) and SPI (3/4-wire) interfaces. Driven by the robust ST7789T3 controller, it offers fast response times (16ms typical) and stable communication for real-time applications.

  • Wide Operating Temperature Range

Rated for -20°C to +70°C operation and -30°C to +80°C storage, this display is built to withstand extreme conditions—perfect for outdoor, automotive, and industrial systems.

  • High Reliability & Longevity

The 4-LED edge-lit backlight delivers an average lifetime of 40,000 hours, while the module undergoes rigorous environmental testing including vibration, ESD (±8kV air/±4kV contact), and thermal cycling to ensure durability in the field.

  • Fully Customizable & Ready for Integration

We offer free technical support and semi-custom design services—including touch panel integration (RTP/CTP), connector options, firmware tuning, and mechanical adaptations. Whether you need a drop-in module or a tailored display solution, our engineering team is here to help.

Technical Specifications at a Glance:

  • Display Area: 43.2 x 57.6 mm

  • Pixel Pitch: 0.06 (H) x 0.18 (V) mm

  • Color Depth: 262K

  • Power Supply: 2.8V (VCC), 1.8V (IOVCC)

  • Dimensions: 50.0 x 69.2 x 2.3 mm

  • Weight: Optimized for portable designs

  • Compliance: RoHS, REACH, ISO 9001:2015, ISO 14001:2015

Why Choose Saef Technology?

We are more than a supplier—we are your display technology partner. With over a decade of expertise in TFT LCD and touch display solutions, Saef Technology provides:

  • Expert-Level Support: Direct access to our engineering team for design reviews, validation, and troubleshooting.

  • Fast Prototyping: Short lead times for samples and custom variants.

  • Global Logistics: Reliable shipping to the EU, USA, and worldwide.

  • Quality Assurance: Every module is tested to MIL-STD-105E standards with AQL-based inspection.

Target Applications:

  • Handheld test & measurement devices

  • Portable medical monitors

  • Industrial control panels

  • Outdoor navigation & telematics

  • IoT and embedded systems

  • Automotive dashboards & marine displays

Get Your Sample or Custom Quote Today

Ready to integrate a high-visibility, high-reliability display into your next project?
Contact our technical sales team for pricing, datasheets, and custom design consultations. We also offer free sample programs for qualified OEMs and engineers.

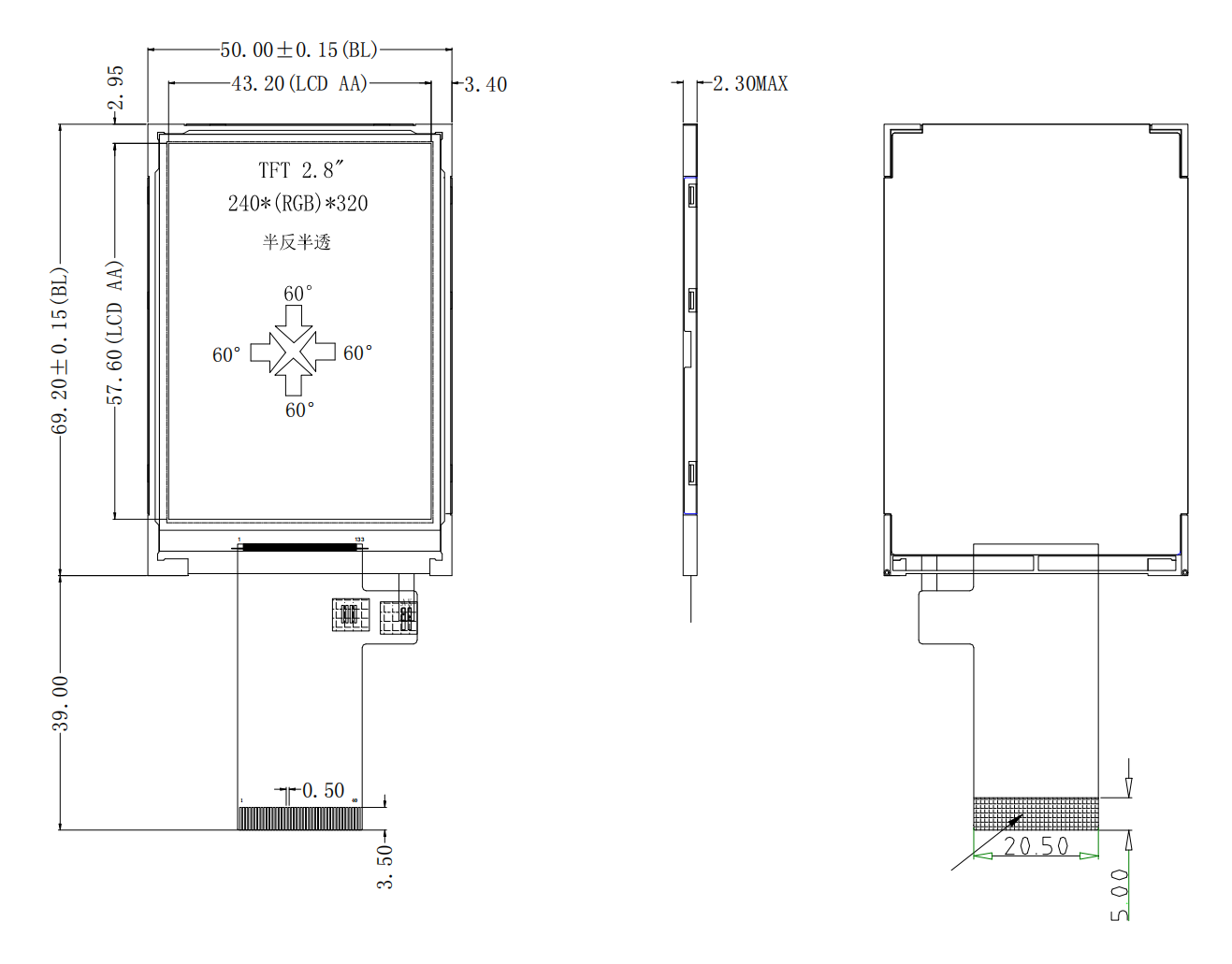

Mechanical Outline Dimensions

2.8-Inch Transflective TFT LCD Display Module | 240x320 Res MCU/SPI | ST7789T3 300 cd/m² | Outdoor & Industrial Use

Interface Pin Definition

Pin No. Symbol Function
1 XL Touch the left line
2 YU Touch the upper circuit
3 XR Touch the right end line
4 YD Touch the lower line
5 GND Ground
6 IOVCC Power Supply. 1.8V
7 VCC Power Supply. 2.8V
8 FMARK Frame synchronization signal
9 CS Chip select input pin (active low)
10 RS/SPI_SCL Display data/command selection pin in parallel SPI serial interface clock
11 WR/SPI_RS

Write enable in 8080 MCU parallel interface.

Display data/command selection pins in SPI interface
12 RD Read enable in 8080 MCU parallel interface.
13 SDA SPI interface input/output pin.
14 SDO SPI interface output pin.
15 RESET External reset input.
16 GND Ground
17-32 DB0-DB15 MCU parallel interface data bus.
33 LEDA LED back light(Anode)
34-36 LEDK LED back light(Cathode)
37 NC NC
38 IM0 Select the MCU interface mode
39 IM1 Select the MCU interface mode
40 IM2 Select the MCU interface mode

Absolute Maximum Rating

Item Symbol Rating Unit
Supply Voltage VDD - 0.3 ~ +4.6 V
Supply Voltage (Logic) VDDI - 0.3 ~ +4.6 V
Driver Supply Voltage VGH-VGL -0.3 ~ +30.0 V
Logic Input Voltage Range VIN -0.3 ~ VDDI + 0.5 V
Logic Output Voltage Range VO -0.3 ~ VDDI + 0.5 V
Operating Temperature Range TOPR -20 ~ +70 ℃
Storage Temperature Range TSTG -30 ~ +80 ℃

DC Electrical Characteristics

Parameter

Symbol

Condition

 Specification

Unit
MIN. TYP. MAX.
Power & Operation Voltage
System Voltage VDD

Operating

voltage

 2.4 2.75 3.3 V
Interface Operation Voltage VDDI

I/O Supply

Voltage

 1.65 1.8 3.3 V
Gate Driver High Voltage VGH 12.2 14.97 V
Gate Driver Low Voltage VGL -12.5 -7.16 V
Gate Driver Supply Voltage | VGH-VGL | 19.36 27.47 V
Input / Output
Logic-High Input Voltage VIH 0.7VDDI VDDI V
Logic-Low Input Voltage VIL VSS 0.3VDDI V
Logic-High Output Voltage VOH IOH = -1.0mA 0.8VDDI VDDI V
Logic-Low Output Voltage VOL IOL = +1.0mA VSS 0.2VDDI V
Logic-High Input Current IIH VIN = VDDI 1 uA
Logic-Low Input Current IIL VIN = VSS -1 uA
Input Leakage Current IIL IOH = -1.0mA -0.1 +0.1 uA
VCOM Voltage
VCOM amplitude VCOM VSS V
Source Driver
Source Output Range Vsout VAN VAP V
Gamma Reference Voltage(Positive) VAP 4.45 6.4 V
Gamma Reference Voltage(Negative) VAN -4.6 -2.65 V
Source Output Settling Time Tr Below with 99% precision 20 us
Output Offset Voltage VOFFSET 35 mV

Optical Specifications

Item Symbol Condition Min Typ Max Unit
White luminance (Center) Lv

Θ=0 Normal

Viewing Angle

IBL=80mA

 -- 300 -- cd/m2
Response time Tr+Tf -- 16 -- ms
Contrast ratio CR -- 500 -- --

Color Chromaticity (CIE1931)

 white Wx -- 0.301 --
Wy -- 0.337 --

Viewing Angle

Hor

 ΘL

CR≥10

 -- 60 --
ΘR -- 60 --

Ver

 ΘU -- 60 --
ΘD -- 60 --
Brightness uniformity Avg Θ=0 80 90 -- %
Color Gamut NTSC Θ=0 -- 55 -- %
Optima View Direction Transflective

Backlight Characteristics

Item Symbol Min Typ Max Unit
LED current IL - 60 80 mA
LED voltage VL - 2.8 3.2 V
Operating LED life time Hr 30000 40000 - Hour
