Engineered for Precision: The 15.6-Inch FHD TFT LCD Module Designed for Industrial Excellence

Saef Technology Limited introduces the SFT01560SM-7411AN, a high-performance 15.6-inch FHD TFT LCD module built to meet the rigorous demands of industrial automation, HMI systems, and embedded applications. With its IPS technology, wide viewing angles, and robust eDP interface, this display delivers exceptional clarity, reliability, and versatility for engineers and system integrators across Europe and the United States.

Key Design Parameters & Technical Superiority

• Crisp Visual Performance:
  1920×1080 resolution with IPS technology ensures consistent color and clarity across 85° viewing angles—ideal for control panels and multi-viewer environments.

• Industrial-Grade Durability:
  Featuring an anti-glare surface (3H hardness) and operating temperature range of 0°C to 50°C, this module excels in factory floors, medical devices, and outdoor kiosks.

• Advanced eDP Integration:
  Supports eDP 1.2 with 2-lane architecture, simplifying integration while reducing cabling and power consumption—perfect for space-constrained designs.

• High Brightness & Longevity:
  500–600 cd/m² luminance and 30,000–40,000-hour LED backlight ensure readability in high-ambient light and continuous operation scenarios.

• Custom-Ready Architecture:
  While standard models come without touch, we offer fully customizable solutions—including resistive or capacitive touchscreens (RTP/CTP), modified bezels, alternative interfaces (LVDS, HDMI), and tailored firmware.

Solve Your Design Challenges

• Need a display that fits tight mechanical specs?
  Our module’s slim profile (6.25mm depth) and precise outline (360.0×212.3mm) allow seamless integration into compact enclosures.

• Concerned about signal integrity in noisy environments?
  The eDP interface with embedded clock reduces EMI, while our optional shielding and robust connector options ensure stable performance.

• Looking for a display that supports 24/7 operation?
  With low power consumption (<0.7W typical) and high reliability ratings, this module is tested for extended use in industrial and commercial settings.

• Require customization without high NRE costs?
  Saef offers free or low-cost semi-custom modifications, including touch integration, logo printing, connector changes, and driver board adaptations.

Why Choose Saef Technology?

• ISO 9001:2015 & ISO 14001:2015 Certified – Commitment to quality and sustainability.

• Direct Factory Support – Technical consultation, sample support, and rapid prototyping.

• RoHS & Halogen-Free – Environmentally compliant for global markets.

• Made for Experts – Datasheets include detailed pinouts, timing diagrams, optical specs, and mechanical drawings to accelerate your design cycle.

Target Applications

• Human-Machine Interfaces (HMI)

• Industrial Control Systems

• Factory Automation & Robotics

• Point-of-Sale (POS) Terminals

• Medical Monitoring Devices

• Transportation & Logistics Displays

• Gaming & Interactive Kiosks

Ordering & Customization

Ready to integrate? Contact our engineering team for free customization quotes, sample requests, or technical datasheets. We support low MOQ and fast turnaround for OEM/ODM projects.

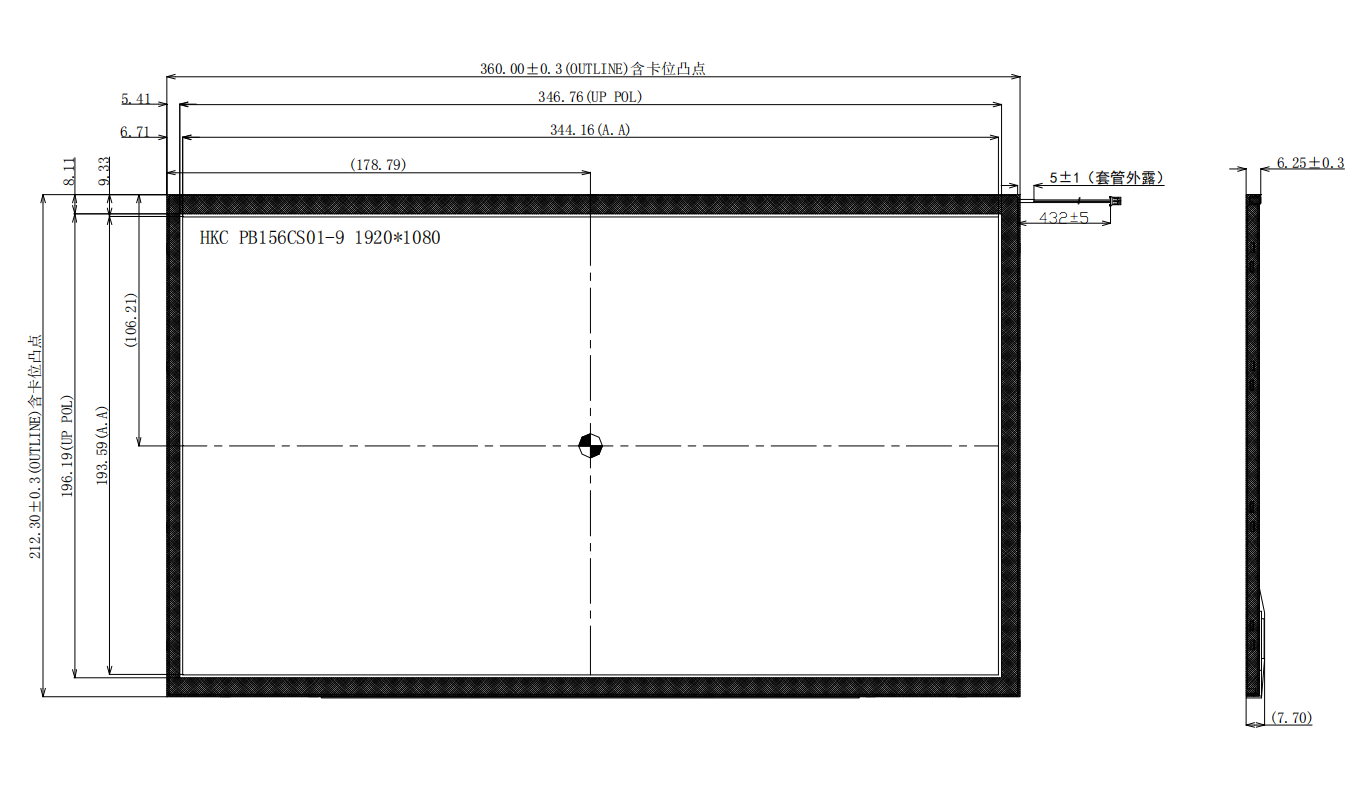

Mechanical Outline Dimensions

Interface Pin Definition

Maximum Absolute Limit

Backlight Electrical-optical Characteristics

Optical Characteristics

Contact Us

We love to hear about your projects, If you have any questions, we can be reached at sales2@saef.com.cn
