1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
Specifications
Brand Name :
SAEF
Model Number :
SFOM154YZ4-12864WB-01
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
Price is negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-4 weeks
Packaging Details :
Standard Exportation Package
Product :
1.54" Inch OLED Screen
Resolution :
128x64 Dots Resolution
Display Mode :
Passive Matrix Display
Interface :
I2C
Optics :
All Viewing Angles
Outline Dim. :
47.0(L) x 43.0(W) x 13.8(T) mm
Active Area :
35.06(L) x 17.52(W) mm
Pixel Pitch :
0.274 x 0.274 mm
Driving method :
1/64 Duty cycle
Operating Temp :
-40°C to +70°C ( Customizable )
Storage Temp. :
-40°C to +85°C
Driver IC :
SSD1309 or Equivalent
Pin number :
4 Header pins, 7 pins optional
Compliance :
REACH & RoHS Compliant
Description

Product Quick Review (SFOM154YZ4-12864WB-01 Specification.pdf)

►Model No.SFOM154YZ4-12864WB-01

►Type : 1.54" Graphic OLED
►Structure : COG+PCB
►128x64 dots
►IC:SSD1309
►5V Power supply
►1/64duty
►Interface: SPI, I2C
►Display Color: White / Blue

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the SAEF display OLED COB graphic item no. SFOM154YZ4-12864WB-01 is a good choose. This 1.54” OLED module is built-in SSD1309 IC which has outline dimension of 47.0(L) X 43.0(W) X 13.8(T) mm and visible portion of the OLED measures 1.54" diagonal and contains 128x64 pixels. It is able to communicate using SPI and I2C interface.

Product Features

Product: 1.54" Inch OLED Screen
Resolution: 128x64 Dots Resolution
Interface: I2C
Display Mode: Passive Matrix Display
Optics: All Viewing Angles
Outline Dim.: 47.0(L) X 43.0(W) X 13.8(T) Mm
Active Area: 35.06(L) X 17.52(W) Mm
Pixel Pitch: 0.274 X 0.274 Mm
Driving Method: 1/64 Duty Cycle
Operating Temp: -40°C To +70°C ( Customizable )
Storage Temp.: -40°C To +85°C
Pin Number: 4 Header Pins,
Driver IC: SSD1309 Or Equivalent
Compliance: REACH & RoHS Compliant

1.54 inch OLED Graphic Display Product Drawing

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

Schematic Diagram

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

Interface Pin Function

No. Symbol Function
1 GND Ground
2 VCC Power supply input.
3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4 SDA

DC Characteristics

Characteristics

 Symbol Conditions Min Typ Max

Unit
Supply Voltage for Logic VDD 1.65 2.8 3.3 V
Supply Voltage for Display VCC 11.5 12 12.5 V
High Level Input VIH 0.8×VDD - - V
Low Level Input VIL - - 0.2×VDD V
High Level Output VOH IOUT = 100μA, 3.3MHz 0.9×VDD - - V
Low Level Output VOL IOUT = 100μA, 3.3MHz - - 0.1×VDD V

VDD Supply Current

VDD =2.8V, VCC = 12,

IREF = 10uA , No

Panel attached,

Display ON, All ON,

IDD

Contrast = FFh

-

90

110

μA

VCC Supply Current

VDD = 2.8V, VCC =12,

IREF =10uA, No Panel

attached,

Display ON, All ON

ICC

-

450

580

μA

Segment Output

Current,

VDD = 2.8V,

VCC =12V,

IREF=10uA,

Display ON.

ISEG

 Contrast=FFh 280 310 340

μA
Contrast=AFh - 215 -
Contrast=7Fh - 155 -
Contrast=3Fh - 78 -
Contrast=0Fh 20 -

Sleep Mode Current for VDD

IDD, SLEEP

VDD = 1.65V~3.3V, VCC = 7V~16V

Display OFF, No

panel attached

-

-

10

μA

Sleep Mode Current for VCC

ICC, SLEEP

VDD = 1.65V~3.3V, VCC = 7V~16V

Display OFF, No

panel attached

-

-

10

μA

Electrical Specifications

Characteristics

 Symbol Conditions Min Typ Max Unit
Normal mode current consumption All pixels on - 17 25 mA
Standby mode current consumption Standby mode 10% pixels on - 0.5 1.5 mA
Normal mode power consumption All pixels on - 71.5 97.5 mW
Standby mode power consumption Standby mode 10% pixels on - 6.5 19.5 mW
Brightness Lbr - 90 110 - cd/m2
C.I.E. (White)

(x)

(y)

 C.I.E. 1931

0.24

0.28

0.28

0.32

0.32

0.36
Dark Room Contrast CR - 2000:1 - -

Viewing Angle

 - 160 - - degree

I2C Interface Timing Characteristics

Symbol

 Description Min Max

Unit
tcycle Clock Cycle Time 2.5 - μs
tHSTART Start Condition Hold Time 0.6 - μs
tHD Data Hold Time (for “SDAOUT” Pin) 0

-

ns
Data Hold Time (for “SDAIN” Pin) 300
tSD Data Setup Time 100 - ns
tSSTART

Start Condition Setup Time

(Only relevant for a repeated Start condition)

 0.6 - μs
tSSTOP Stop Condition Setup Time 0.6 - μs
tR Rise Time for Data and Clock Pin 300 ns
tF Fall Time for Data and Clock Pin 300 ns
tIDLE Idle Time before a New Transmission can Start 1.3 - μs

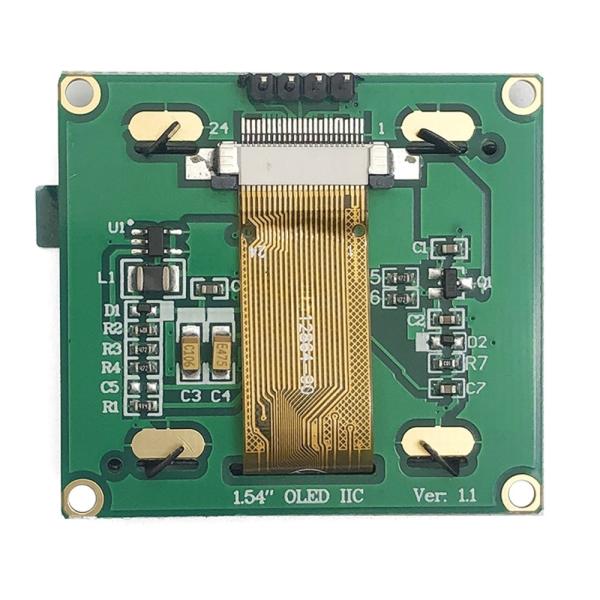

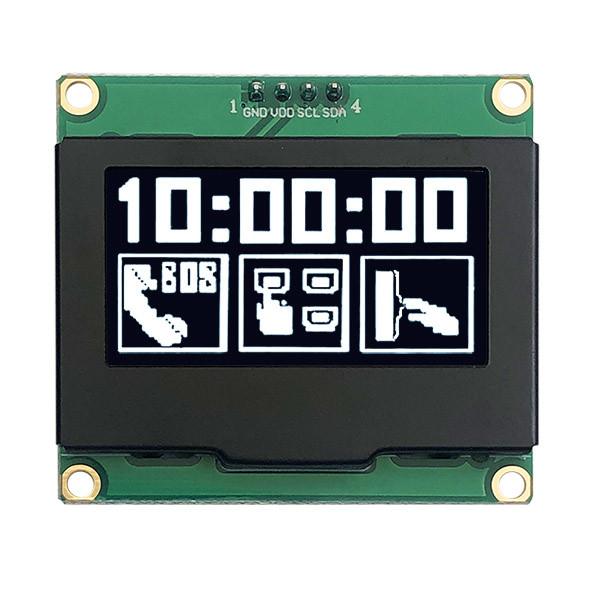

1.54 inch OLED Graphic Display Product Image

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface
