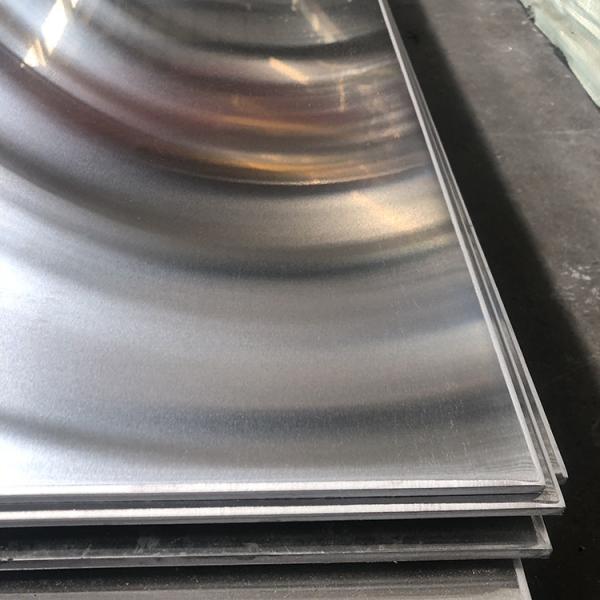

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled
Specifications
Brand Name :
TISCO
Model Number :
2304 duplex stainless steel
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-3000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM A240
Grade :
Super duplex stianless steel 2304
Certificate :
Mill MTC ,Third party Inspection
Process :
Cold rolled
Thickness :
2mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm

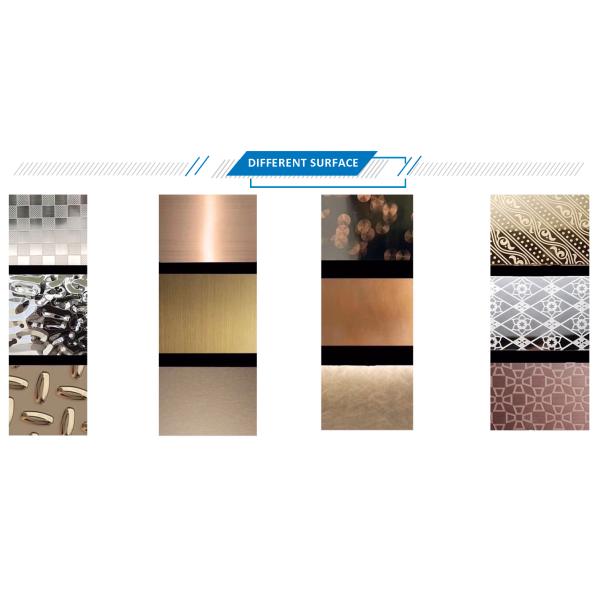

Surface finish :
Brushed ,Mirror , 2B
Description

Duplex Alloy 2304 Super Duplex Stainless Steel Sheets UNS S32304 Astm A240 overview

Duplex 2304, also called Alloy 2304, is a molybdenum-free duplex stainless steel. It has a structure that is a balance of ferritic and austenitic and is often used as a replacement for Alloys 304L and 316L. Some of Duplex 2304 stainless steel’s other properties include:

  • Outstanding corrosion resistance
  • Yield strength (twice that of 304L/316L)
  • Suitable for applications covering -50ºC/+300ºC temperature range
  • Resistance to pitting and crevice corrosion
  • Improved machinability and weldability

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

Some Normal specification at a glance

　
 ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -

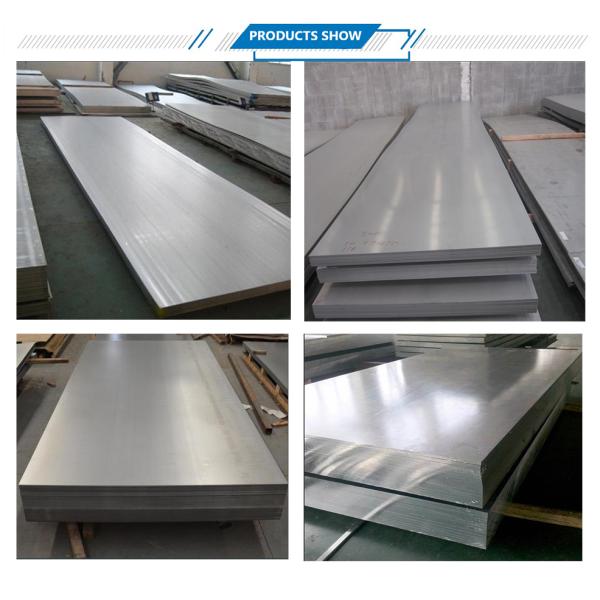

Products Show:

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 2~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Duplex Alloy 2304 Super Duplex Stainless Steel Sheets UNS S32304 Astm A240 ​ Application

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

Because of these positive qualities Duplex 2304 is commonly used in a range of applications for a variety of industries. These include:

  • Pulp and paper industry (pipes, storage tanks)
  • Food industry
  • Pressure vessels
  • Mining
  • Exposure to caustic solutions and organic acids
  • Water treatment
  • Construction and architecture

Duplex Alloy 2304 Super Duplex Stainless Steel Sheets UNS S32304 Astm A240 ​ Equivalent UNS S32304 / DIN 1.4362 / DIN X2CrNiN23-4 / AFNOR Z2CN23-04AZ / SS 2327 / AISI S32304 / SAE S32304 / EN X2CrNiN23-4 / EN 1.4362

Duplex Alloy 2304 Super Duplex Stainless Steel Sheets UNS S32304 Astm A240 Technical datasheet

Chemical Composition

The chemical composition of stainless steel grade Duplex 2304 is outlined in the following table.

Element Content (%)
Iron, Fe 72.679
Chromium, Cr 23
Nickel, Ni 4
Molybdenum, Mo 0.20
Nitrogen, N 0.1
Carbon, C 0.02
Sulfur, S 0.001

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

Duplex Alloy 2304 Super Duplex Stainless Steel Sheets UNS S32304 Astm A240 Products display and Package Details

Alloy 2304 Super Duplex Stainless Steel Brushed Plate 2mm Cold Rolled

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q: What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q:Can I visit your location?
A:Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.

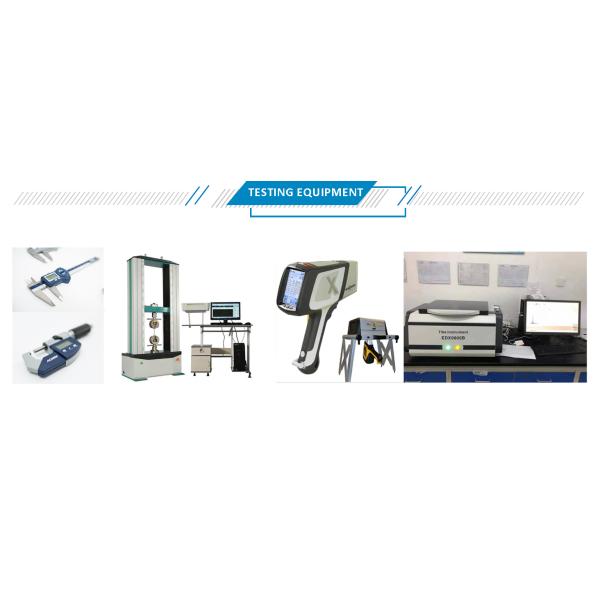

Q: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.We provide All original Mill test certificate and support third party inspection.
Q: How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q: What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
