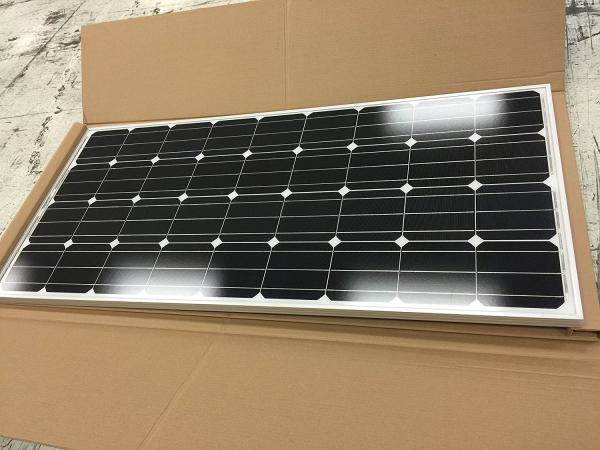

4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
4BB 5BB Cells Flexible PV Solar Panels 150W For Home Solar Energy System
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-M150W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1
Price :
USD0.3~0.4/wp
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
36 pcs 156mm Taiwan mono cells
Voltage :
18V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Description

4BB , 5BB cells China Pv Manufacturer Solar Panel TUV 150W For Home Solar Energy System

90-150Watt Monocrystalline Solar Panel
Characteristics SN-M90 SN-M100 SN-M120 SN-M130 SN-M150
Maximum Power(Pmax) 90Wp 100Wp 120Wp 130Wp 150Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 5.00A 5.56A 6.67A 7.22A 8.33A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 5.2A 5.76A 6.87A 7.42A 8.53A
Module Efficiency 13.92% 14.60% 15.05% 16.31% 15.10%
Weight 9.6Kg 7.2Kg 11.5Kg 11.5Kg 13Kg
Numbers of cells 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9)
Cell dimension(mm) 125*125 156*104 156*125 156*125 156*156
Dimensions(mm) 1195*541*30 1020*670*30 1190*670*30 1480*670*35
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C

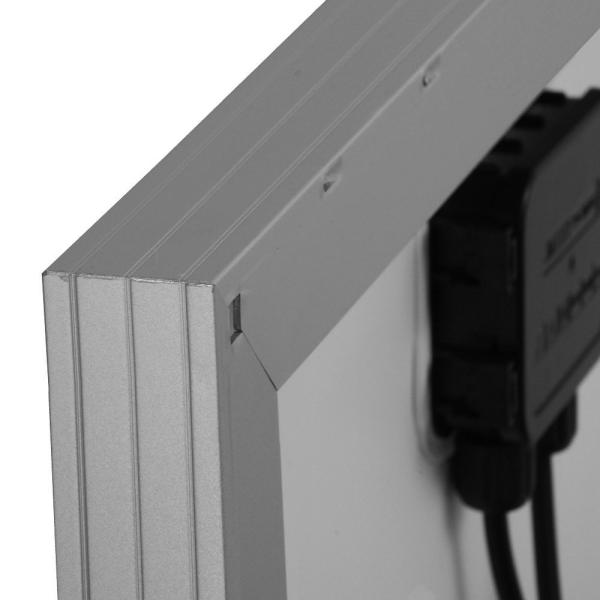

Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
