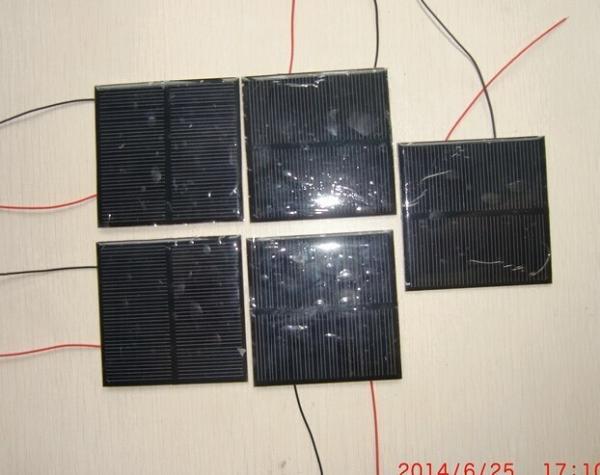

Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag
Specifications
Brand Name :
SHINE, OEM
Model Number :
SN-EP
Certification :
CE， RoHS, IEC
Place of Origin :
China
MOQ :
100
Price :
$1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs
Delivery Time :
15 days
Packaging Details :
carton
Wattage :
0.5W to 30W
Voltage :
2V, 5V, 6V, 9V, 12V, 18V
Color :
Black
Material :
PET or EPOXY
Description

PET Solar Panel Structure

Parameter

Model No.: SN-0.7W
Cell Type: Poly/mono-crystalline silicon
Cell Efficiency: Over than 16.5%
Power Tolerance: +/-3%
Max Output Power (Wmp): 0.7W
Optimum Operating Voltage (Vmp): 5V
Optimum Operating Current (Imp): 140mA
Open Circuit Voltage (Voc): 5.5V
Short Circuit Current (Isc): 170mA
Size: 100*60mm
Process: PET laminated
Testing Conditions (STC): Irradiance1000W/m2, Temperature 25°C, AM 1.5

Note: The shape,size and voltage of solar panels can be customized by customers' requirements.

According to the structure of solar panel, we sequentially make transparent PET + EVA + solar cell + EVA + PCB board together and then put into laminating machine for vacuum encapsulation, after approximate 20 minutes, a full finished solar panel is made.

Epoxy Sealed Mini Solar Panels Monocrystalline / Polycrystalline For Portable Bag

Features

1. High efficiency monocrystalline or polycrystalline solar cells.
2. PET laminated.
3. Suitable for both lithium battery and Ni-MH battery connectivity
4. Ideal for mobile phone, mobile phone chargers, small power consumption electronics and electronic gifts.
