Specifications
warranty :
1 year
customized support :
OEM, ODM
Brand Name :
RV
Model Number :
RV-A-73388-T
Place of Origin :
Shanghai, China
application :
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agricultu
power source :
Pneumatic
structure :
Diaphragm Pump
Material :
Aluminum
Name :
Diaphragm Pump
Color :
black
Ball seat :
304 Stainless Steel
Ball :
VT
Brand :
RV
Packing :
carton
Max pressure :
120psi(0.84Mpa,8.4bar)
Pump body :
Aluminum
Max Flow :
40gpm(150pm)
MOQ :
2 sets
Price :
$340.30 / set
Description

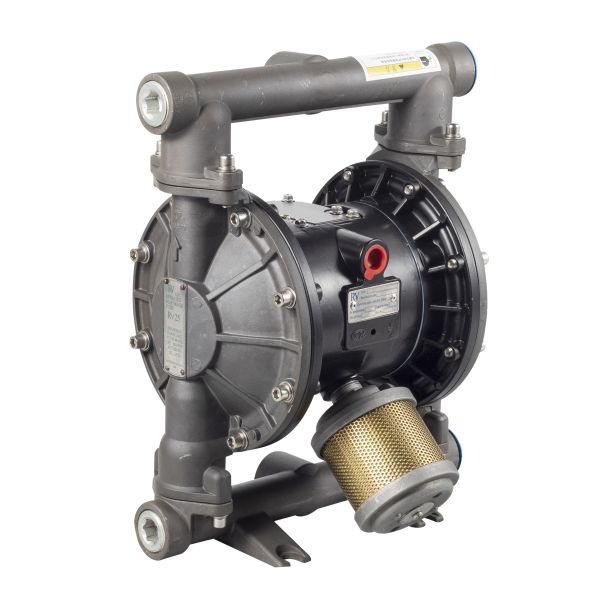

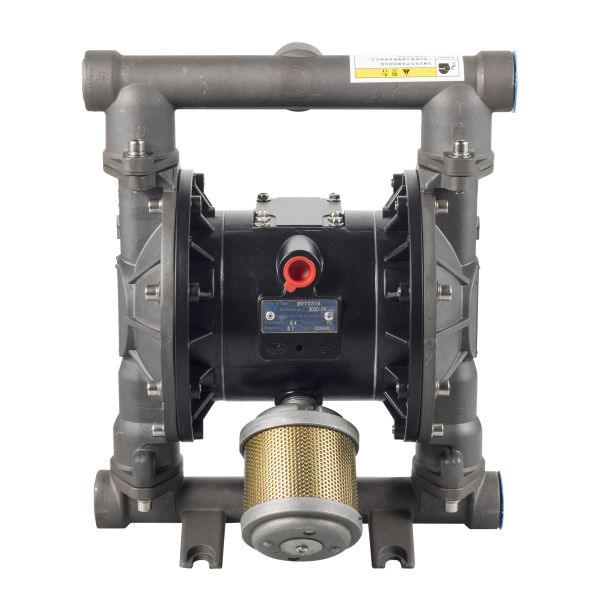

1" Aluminum Air-Powered Diaphragm Pump for Wastewater Treatment
Product Specifications
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 40gpm (150lpm)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16in. (4mm)
Max Air Consumption 45scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1 in
Fluid Outlet Size 1 in
Weight Aluminum pump: 8.2 KGS
1 1
Company Profile
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. The company has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Technical Capabilities
  • Strong design, innovation, and precision production capabilities
  • Cooperation with Shanghai universities for R&D
  • Over 40 patents granted, including 10 invention patents
  • Participated in setting national standards for pneumatic diaphragm pumps (SH/T 3191-2017)
  • Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
Product Range
Main products include: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, and Sequencing Valve.
Material Options
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types: Threaded connection (plastic pumps 1/4" to 1-1/2", all metal pumps) and Flanged connection (plastic pumps 1/2" to 3")
Industry Applications
Services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry, and food and pharmaceutical industry.
Our Service
  • All enquiries replied within 24 working hours
  • Professional pump producer with dedicated design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service and technical support
1 1 1 1 1 1 1
Frequently Asked Questions
What is MOQ?
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
What's the payment method?
D/P, T/T, Western Union - please confirm with us with exact order.
What is the delivery time?
Depends on quantity. Generally 1-7 working days.
What about packaging?
Cartons with foam inside, wooden case, and pallet.
How are the products delivered to us?
By International express or Sea.
How long is the warranty?
15 years warranty for air motor, 5 years for pump body.
Can products be made to different standards?
Yes, we can produce products according to custom needs.
