Specifications
application :
Other
pressure :
Other
warranty :
1 year
Model Number :
RV-A-B3366-T
Brand Name :
RV
Place of Origin :
Shanghai, China
customized support :
OEM, ODM
power source :
Pneumatic
structure :
Diaphragm Pump
voltage :
LOW
Warranty :
one year (except for wearing parts)
Color :
Black
Flow rate :
340L/M
Weight :
18KGS
Model :
RV-A-B3366-T
Keywords :
PUMP
Product name :
diaphragm pump
Motor :
Pneumatic
MOQ :
1pc
Size :
48*29*53
MOQ :
2 sets
Price :
$361 / set
Description
Air Operated Diaphragm Pump Mud Slurry Pump with CE Certification
Technical Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 90gpm (340L/M)
Max Reciprocating Speed 200cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2in (5mm)
Max Air Consumption 80scfm (40L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1 1/2 in
Fluid Outlet Size 1 1/2 in
Weight Aluminum Pump: 16KGS, Stainless Steel Pump: 30.7KGS, Ductile Iron Pump: 31.6KGS

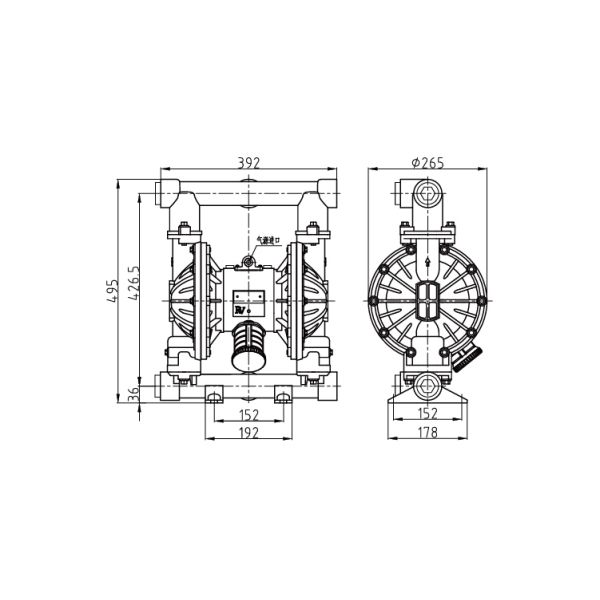

Product Images
CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source
Our Advantages
CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source
Packing & Delivery
CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source
Company Profile
CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.
Our pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.
We mainly provide services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and pharmaceutical industry. We have established long term business relationships with famous enterprises such as BASF, Bayer, SAMSUNG and others. Our RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
Available Materials and Configurations
  • Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
  • Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
  • Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
  • Connection types: Threaded connection (Plastic pumps from 1/4" to 1-1/2", and all metal pumps) and Flanged connection (Plastic pumps from 1/2" to 3")
Our Service
CE Certificated Air Operated Diaphragm Pump with 340L/M Flow Rate and Pneumatic Power Source
  • All enquiries will be replied within 24 working hours
  • Professional pump producer with dedicated design team
  • All goods packed with standard export wooden case (non-fumigation)
  • Fast after-sales service and technical support
Frequently Asked Questions
What is MOQ?
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
What's the payment method?
D/P, T/T, Western Union - please confirm with us with exact order.
What is the delivery time?
Depends on the quantity. Generally 1-7 working days.
What about package?
Cartons with foam inside & wooden case & Pallet.
How are the products delivered to us?
By International express or Sea.
How long is the warranty?
15 years warranty for air motor, 5 years for pump body.
Whether the products can be made of different standard?
Of course yes. We can produce products according to custom needs.
