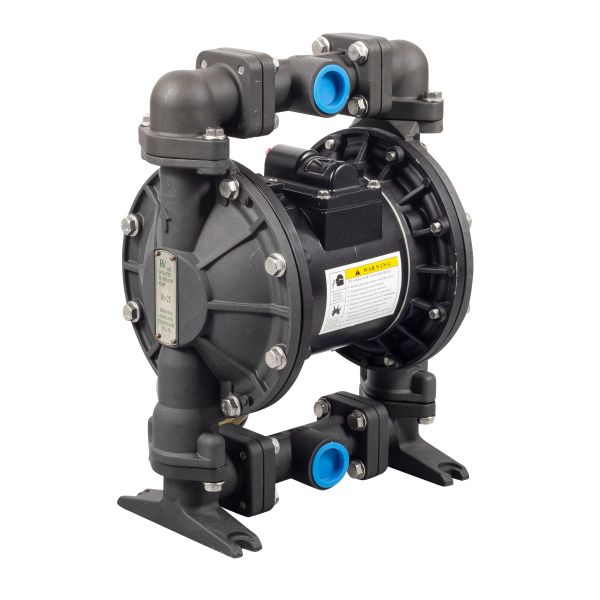

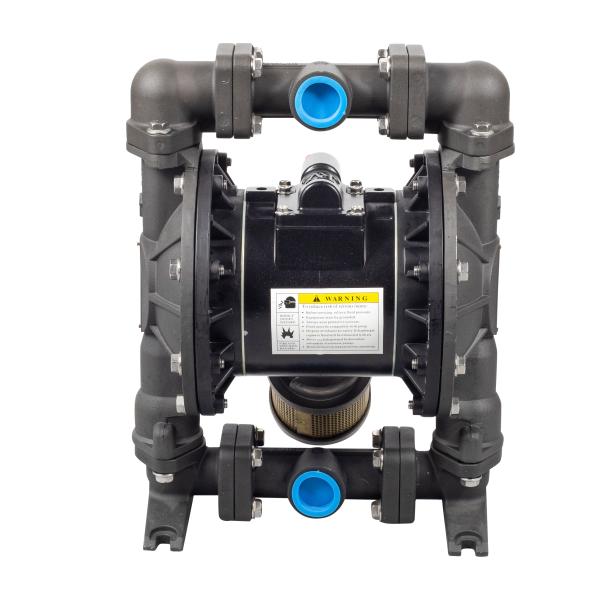

Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Specifications
warranty :
1 year
customized support :
OEM, ODM
Brand Name :
RV
Place of Origin :
Shanghai, China
application :
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agricultu
power source :
Pneumatic
pressure :
Other
structure :
Diaphragm Pump
Material :
Aluminum
Name :
Diaphragm Pump
Color :
black
Weight :
9.5kgs
Brand :
RV
Packing :
carton
Max pressure :
120psi(0.84Mpa,8.4bar)
Pump body :
Aluminum
Max Flow :
48gpm(192lpm)
MOQ :
2 sets
Price :
$196 / set
Description
AP-25 Pneumatic Power Source Aluminium Linear Diaphragm Air Pump
High-performance pneumatic diaphragm pump designed for wastewater treatment and agricultural irrigation applications.
Product Specifications
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
ParameterSpecification
Max Working Pressure120 psi (0.84Mpa, 8.4bar)
Max Flow Rate48gpm (192L/M)
Max Reciprocating Speed276cpm
Max Suction Height (Dry Sucking)4.5m
Max Permitted Grain3/32in. (2.5mm)
Max Air Consumption20scfm (10L/S)
Air Inlet Size1/2 inch
Air Outlet Size3/4 inch
Fluid Inlet Size1 inch
Fluid Outlet Size1 inch
WeightAluminum pump: 8.2KGS | Stainless steel pump: 15KGS
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Key Features
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
  • Robust aluminum construction for durability
  • High flow rate capability for efficient operations
  • Dry suction capability up to 4.5 meters
  • Handles solids up to 2.5mm grain size
  • Compact design with efficient air consumption
Packaging & Delivery
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
All products are packed with standard export wooden cases (non-fumigation) for secure international shipping.
Manufacturer Profile
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China.
Company Highlights:
  • Certified High-Tech Enterprise and Credit Company
  • Strong design, innovation, and precision production capabilities
  • Over 40 patents including 10 invention patents
  • Participated in setting national technical standards for pneumatic diaphragm pumps
  • Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
  • Serves chemical, painting, water treatment, petroleum, environmental protection, and food/pharmaceutical industries
  • Long-term partnerships with major enterprises including BASF, Bayer, SAMSUNG
  • Products exported to more than 70 countries and regions
Material Options
  • Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
  • Connection types: Threaded connection (plastic pumps 1/4" to 1-1/2", all metal pumps) and Flanged connection (plastic pumps 1/2" to 3")
Customer Service
Aluminum Pneumatic Diaphragm Pump with 120psi Max Pressure for Wastewater Treatment and Irrigation
  • All inquiries replied within 24 working hours
  • Professional pump production with dedicated design team
  • Standard export wooden case packaging
  • Fast after-sales service and technical support
Frequently Asked Questions
Q: What is MOQ?
A: 1 piece for regular products. Samples available with cost deduction from future orders.
Q: What payment methods are accepted?
A: D/P, T/T, Western Union - confirmed with exact order details.
Q: What is the delivery time?
A: Depends on quantity, typically 1-7 working days.
Q: How are products packaged?
A: Cartons with foam inside, wooden cases, and pallets for secure shipping.
Q: How are products delivered?
A: International express or sea freight options available.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be customized?
A: Yes, we can produce according to custom requirements and specifications.
