RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference
RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference
Specifications
Brand Name :
RUYA
Model Number :
RYS7-720
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 4-6 weeks
Delivery Time :
20-30 working days
Packaging Details :
Wooden box
Accuracy :
±2″
Repeatability :
0.72″
Electrical Allowed Rotary Speed :
maximum 400rpm
Physical Rotary Speed :
maximum 10000rpm
Description
RYS7-720 Split Series Circular Induction Synchronizer Rotary Inductosyn
Product Overview
The RYS7-720 Split Series Circular Induction Synchronizer features an innovative modular architecture that separates the stator/rotor design, breaking through traditional installation limitations and enabling quick disassembly and maintenance in just 3 minutes.
Key Features
  • Anti-electromagnetic interference enhanced design
  • Maintains absolute accuracy of ±1 arc second in strong magnetic field environments (no software compensation)
  • Verified in high-grade environments including extreme temperature, vacuum compatibility, and three-proof enhanced versions
  • Optional dual-channel redundant output for highly reliable applications
  • Quick 3-minute disassembly and maintenance capability
Environmental Specifications
  • Extreme temperature version: Continuous operation at -55℃ to +125℃
  • Vacuum compatible version: 10⁻⁶Pa level vacuum
  • Three-proof enhanced version: Passed 96h salt spray test
Applications
Ideal for key areas requiring high reliability including aerospace actuators and satellite attitude control systems.
Technical Parameters
Parameter Specification
Model RYS7-720
Accuracy ±2″
Angular Resolution 0.36″
Repeatability 0.72″
Electrical Allowed Rotary Speed Maximum 400rpm
Physical Rotary Speed Maximum 10000rpm
Output Mode Analog quantity, equipped with circuit board to output angle data
Interface Form Connector/wire
Interface Protocol BISS_C / ENDAT / SPI / Customized
Diameter 50-350mm
Thickness 10-25mm; can be customized
Power Supply 9~36VDC
Working Temperature -50℃～+120℃

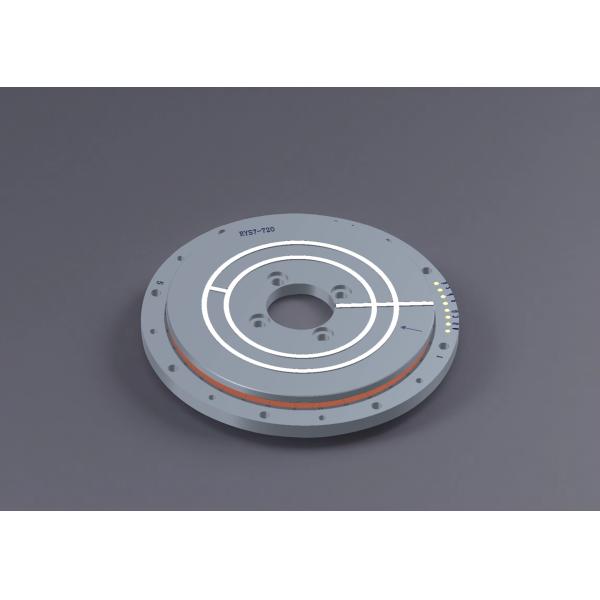

Product Images
RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference RYS7-720 Split Series Circular Induction Synchronizer Anti-Electromagnetic Interference
