Specifications
Brand Name :
RUYA
Model Number :
5000U-3050, 5000UH-3050
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 4-6 weeks
Delivery Time :
20-30 working days
Packaging Details :
Wooden box
Objective Focal Length :
300mm
Lens Diameter :
50mm(NA.=90%)
Measuring Frequency :
25Hz TYP.
Weight :
4.6KG
Description

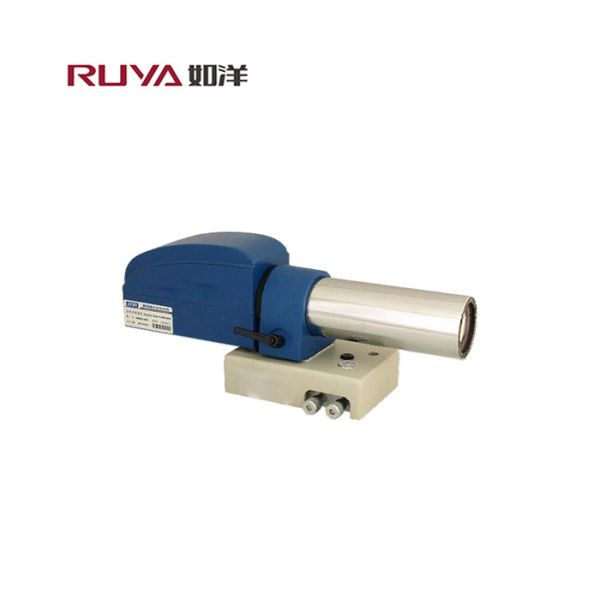

AutoMAT 5000 High Precision Dual Axis Autocollimator
Product Overview

The AutoMAT 5000 autocollimator combines high-precision performance, exceptional stability, and user-friendly operation to meet diverse customer requirements across a wide range of mechanical and optical applications.

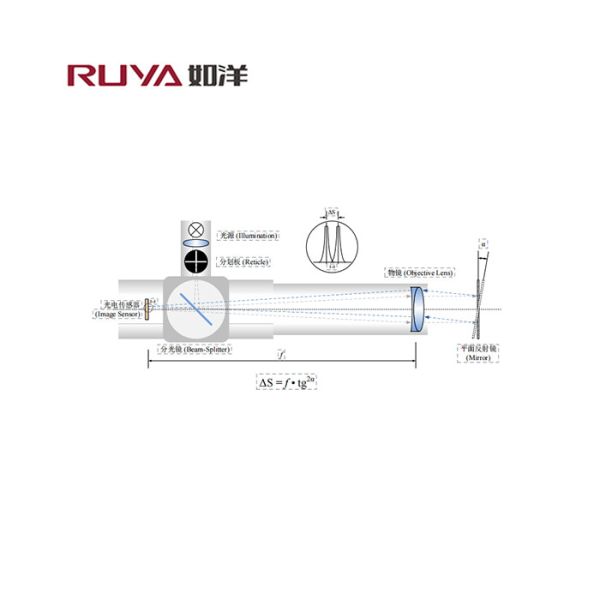

Through the integration of a specially designed high-resolution, low-distortion lens, internal optical components, optimal mechanical construction, and fully digital design technology, this system achieves ultra-high accuracy of up to 0.1 arcsec for angle measurement. The precise and highly reliable measurement system excels in ease of use, while the new ergonomically adapted measurement software ensures maximum usability with complete functionality.

Technical Specifications
Specification 5000U-3050 5000UH-3050
Objective Focal Length 300mm 300mm
Lens Diameter 50mm (NA.=90%) 50mm (NA.=90%)
Light Source High-power semiconductor light source (center wavelength λ=630nm)
Sensor High-resolution sensor
Viewfinder Electronic viewfinder displayed by the software
Measuring Frequency 25Hz TYP. 25Hz TYP.
Interface USB2.0 High Speed Interface USB2.0 High Speed Interface
Measuring Distances 25m (25 meter MAX.) 10m (10 meter MAX.)
Maximum Measuring Range 4000″ (arc sec.) 2400″ (arc sec.)
Resolution 0.1″ (arc sec.) 0.01″ (arc sec.)
Accuracy ±100″ (arc sec.) ±0.2″ (arc sec.) ±0.1″ (arc sec.)
Accuracy ±1000″ (arc sec.) ±0.5″ (arc sec.) ±0.25″ (arc sec.)
Repeatability 0.05″ (arc sec.) 0.05″ (arc sec.)
Dimension 405mm (L) × 84mm (W) × 110mm (H)
Weight 4.6KG
