Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
Specifications
Brand Name :
RUYA
Model Number :
/
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 pcs, 4-6 weeks
Delivery Time :
20-30 working days
Packaging Details :
wooden box
Repeatability :
0.06″/0.12″
Load Capacity :
10-30kg
Description
Multi Tooth Indexing Table 10-30kg Load Capacity 0.06'' 0.12'' Repeatability
Product Overview

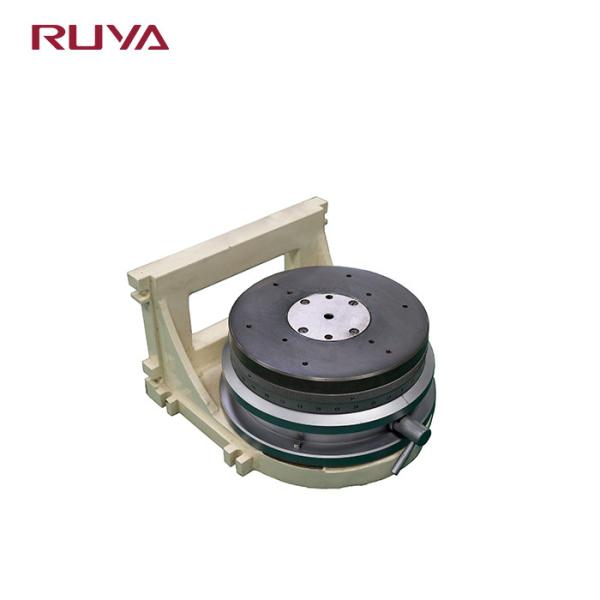

The multi-tooth indexing table is a precision instrument for angle measurement, serving as both an angle reference for measurement and an indexing device for precision machining. When used with a photoelectric autocollimator, it enables detection of high-precision angle devices including multi-faceted prisms, angle block gauges, and optical prisms.

As an indexing device, it facilitates the machining of precision parts with demanding angle requirements—such as hole positions, vertical planes, and parallel planes—on standard milling, boring, grinding, and other machine tools. The subdivision and combined differential capabilities of the multi-tooth indexing table also support high-precision arbitrary angle measurements.

Technical Specifications
Product Model Table Diameter (mm) External Dimension (mm) Accuracy Angle Measurement Repeatability Load Capacity (kg) Weight (kg)
360-tooth vertical multi-tooth indexing table DFT-360A Φ205 Φ235*83 0.2″ 0.5″ 0.06″0.12″ 30 20
small size 360-tooth vertical multi-tooth indexing table DFT-360X Φ108 Φ140*60 0.3″ 0.5″ 0.12″ 10 4
small size 360-tooth vertical and horizontal multi-tooth indexing table WDFT-360X Φ108 Φ140*80 0.3″vertical 0.5″horizontal 0.12″ 10 5
middle size 360-tooth vertical multi-tooth indexing table DFT-360D Φ140 Φ180*83 0.2″ 0.5″ 0.06″0.12″ 20 8
middle size 360-tooth vertical and horizontal multi-tooth indexing table WDFT-360E Φ160 Φ180*100 0.3″vertical 0.5″horizontal 0.12″ 20 10
391-tooth multi-tooth indexing table DFT-391A Φ205 Φ235*83 0.2″ 0.5″ 0.06″0.12″ 30 20
small size 391-tooth multi-tooth indexing table DFT-391X Φ108 Φ140*60 0.3″ 0.5″ 0.12″ 10 4
small size 391-tooth vertical and horizontal multi-tooth indexing table WDFT-391X Φ100 Φ140*80 0.3″vertical 0.5″horizontal 0.12″ 10 5
middle size 391-tooth vertical and horizontal multi-tooth indexing table WDFT-391E Φ160 Φ180*100 0.3″vertical 0.5″horizontal 0.12″ 20 10
middle size 391-tooth vertical multi-tooth indexing table DFT-391G Φ140 Φ180*83 0.2″ 0.5″ 0.06″0.12″ 20 8
8mm-hole 552-tooth vertical multi-tooth indexing table DFT-552A Φ200 Φ235*88 0.2″ 0.5″ 0.06″0.12″ 30 20
middle size 552-tooth vertical and horizontal multi-tooth indexing table WDFT-552E Φ160 Φ180*100 0.3″vertical 0.5″horizontal 0.12″ 20 10
552-tooth vertical multi-tooth indexing table with taper shaft DFT-552F Φ207 Φ235*100 0.2″ 0.06″ 30 20
720-tooth vertical multi-tooth indexing table DFT-720A Φ205 Φ235*100 0.2″ 0.5″ 0.06″0.12″ 30 20
Product Images
Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining Multi Tooth Indexing Table with 10-30kg Load Capacity for Precision Machining
