3DT565-B Three Axis Electric Inertial Navigation Test Turntable
3DT565-B Three Axis Electric Inertial Navigation Test Turntable
3DT565-B Three Axis Electric Inertial Navigation Test Turntable
3DT565-B Three Axis Electric Inertial Navigation Test Turntable
Specifications
Brand Name :
RUYA
Model Number :
3DT565-B
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Maximum size of test piece :
400mm×400mm×400mm
Rotary Accuracy Of Three-Axis :
±3″
Perpendicularity Of Three-Axis :
±3″
Positioning Error :
±5″
Positioning Repeatability :
±2″
Intersection Of Three-Axis :
Ф0.5mm diameter ball
User Slip Ring :
Customizable
Description

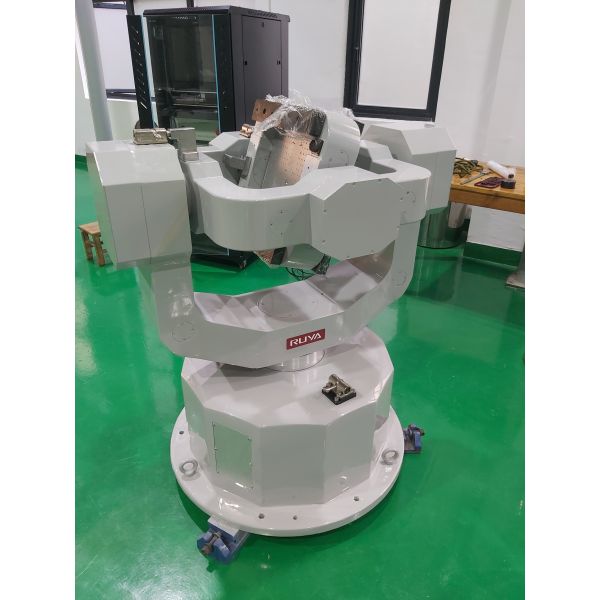

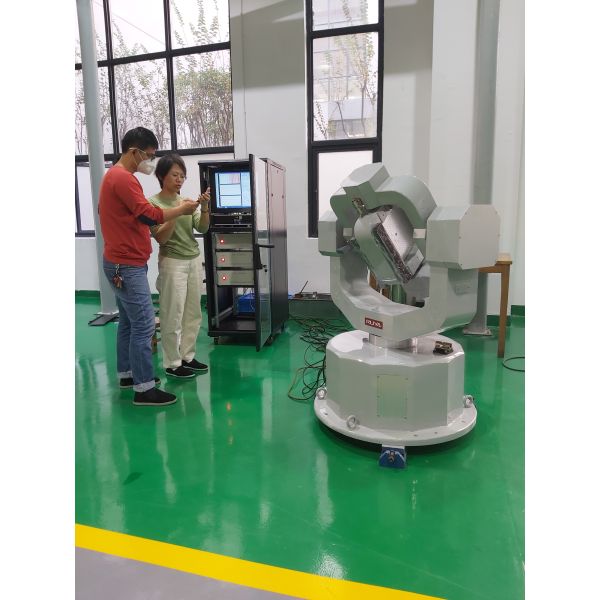

3DT565-B Three-axis Electric Inertial Navigation Test Turntable

Product Description

The three-axis electric turntable is a device that can rotate on three independent axes (usually pitch, roll and yaw). It is widely used in aerospace, military, scientific research, industrial automation and other fields.

Product Parameters

Specification

1

Load Weight

30Kg

2

Maximum size of test piece

400mm×400mm×400mm

3

Rotary Accuracy Of Three-Axis

±3″

4

Perpendicularity Of Three-Axis

±3″

5

Intersection Of Three-Axis

Ф0.5mm diameter ball

6

Positioning Error Of Angular Position

±5″

7

Positioning Repeatability Of Angular Position

±2″

8

Rate Range

inner frame:0.01°/s~200°/s；

middle frame:0.01°/s~200°/s；

outer frame:0.01°/s~200°/s；

9

Rate Accuracy

ω≤1°/s , 2×10-3 (1° average)

1°/s≤ω<10°/s , 2×10-4 (10° average)

ω≥10°/s , 2×10-5 (360° average)

10

Maximum Angular Acceleration

inner frame:≥100°/s²

middle frame:≥100°/s²

outer frame:≥50°/s²

11

User Slip Ring

Customizable

3DT565-B Three Axis Electric Inertial Navigation Test Turntable

3DT565-B Three Axis Electric Inertial Navigation Test Turntable
