Dynamic 3 Axis Simulation Turntable High Performance HWIL Testing And Evaluation Flight Motion Simulator

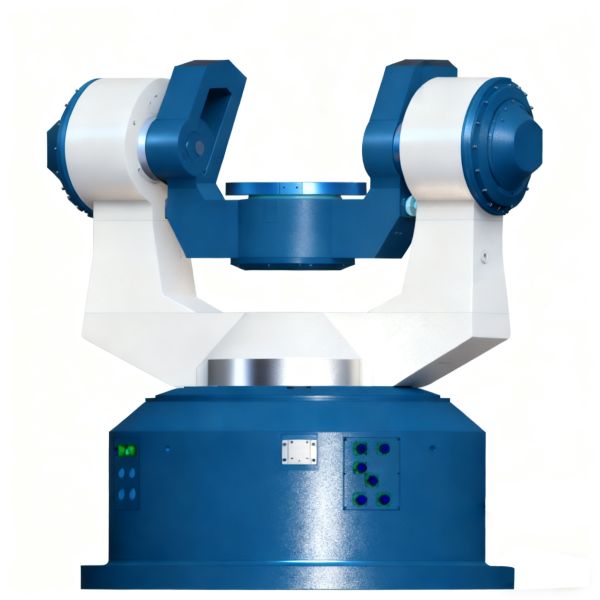

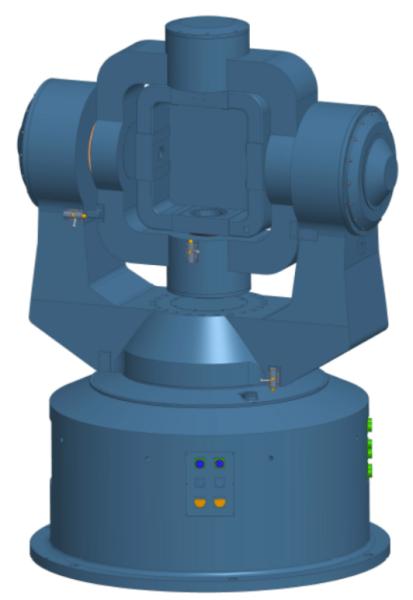

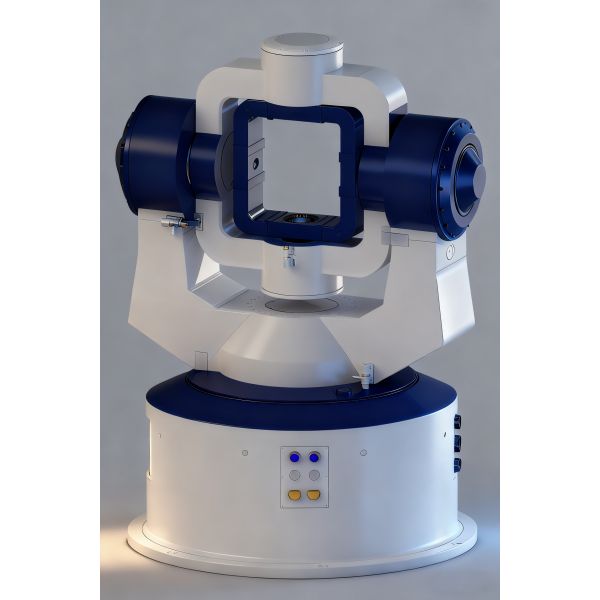

The three-axis simulation turntable consists of two main parts: the mechanical turntable body and the measurement and control system. The turntable adopts a U-O-O or U-U-T structure, a precision mechanical axis system, and a high-rigidity platform structure. It has simulation, position, rate, and swing functions, and can simulate the three-dimensional motion of a load. It is used in ground-based semi-physical simulation systems to provide a near-realistic motion environment for loads such as inertial navigation systems. It can also provide single-axis, dual-axis, or three-axis positioning and rate references for the load under test, and is used for testing and experimentation of inertial components, assemblies, and inertial navigation systems.

Technical Specifications
  • Maximum load: 35 kg (including mounting fixture)
  • Load dimensions: 400mm × 400mm × 450mm
  • Three-axis intersection: ±0.3mm
  • Three-axis perpendicularity: ±18″
  • Mounting surface accuracy: ≤±2″; Positioning surface accuracy: ≤±2″
  • Magnetic leakage at mounting surface: ≤0.1mT (10mm to the mounting surface)
  • Conductive slip rings: The user channel should have no less than 80 rings
  • Approximate dimensions of the machine platform: length 1600 × width 1450 × height 2200 mm
  • Weight: Approximately 3000 kg
Main Performance Indicators
Three-axis Simulation Turntable Performance Specifications

Three-axis simulation turntable

Roll ( inner axis)

Pitch ( middle axis)

Yaw (outer axis)

Rotary angle range

360° continuous

360° continuous

360° continuous

Maximum angular rate

400 º/s

400 º/s

300 º/s

Maximum angular acceleration

4000º/s 2

2500º/s 2

3000 º/s 2

Minimum stable rate

0.003 º/s

0.003 º/s

0.003 º/s

Angular position accuracy

±10.8″

±10.8″

±10.8″

Frequency response index

Double ten, 0.5°

12Hz

10Hz

10Hz

Time-domain response of a step signal (amplitude 1°): overshoot ≤ 25%, oscillation times ≤ 1
