Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
Specifications
Color Temperature(CCT) :
5000K (Daylight)
Lamp Luminous Efficiency(lm/w) :
125
Color Rendering Index(Ra) :
80
Support Dimmer :
Yes
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours) :
50000
Working Time (hours) :
50000
Product Weight（kg） :
5
Input Voltage(V) :
120-277AC or 120-347V
Lamp Luminous Flux(lm) :
125
CRI (Ra>) :
80
Working Temperature(℃) :
25 - 45
Working Lifetime(Hour) :
50000
Lamp Body Material :
-
IP Rating :
IP65
Place of Origin :
Shanghai, China
Brand Name :
Runlux
Model Number :
R4-2LHB90WD-xxK
Application :
Industrial Areas
Light Source :
LED
Warranty(Year) :
5-Year
Control Mode :
Switch Control, Remote Control, Sensor control, APP Control, Other
Product Name :
led linear high bay light for duty damp locations 130W
CRI :
≥80
Color Temp. :
4000K, 5000K
Power factor :
0.99
Input Voltage :
120-277AC or 120-347V
Mounting :
Chain Standard (other options: pendant and Surface Mount Kit)
Operating temperature :
-25℃ to 45℃
Humidity :
10-85% , non-condensing
Material Usage :
ETL DLC
Environment :
Indoor/Damp
MOQ :
2 pieces
Price :
$24.00/pieces 2-49 pieces
Description
Product Description

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

LED Linear High Bay

Product Description
ILEDING LED linear highbay Series offers leading-edge efficacy and scalability for high ceiling application such as warehouses, distribution centers, manufacturing facilities and big box retailers.
Choose from cable, pendant and surface mounting options to create a custom solution that meets any lighting requirement.
Features
• Operating temperature -25°C to 40°C
• Suitable for damp locations
• L70 lifetimes projected to be 100,000 hours
• 0-10V Dimming as standard
• 120-277V or 120-347V driver available
• 135lm/w Meet DLC V5.0/V5.1 Premium
• No Screw Design,Easy to Installation
• 12V built-in Sensor
• Anti Glare Lens Design
• 5 years limited warranty

Model Selection

Rated Power Model No. Lumen DLC stauts Length Comparable Light source
90W R4-2LHB90WD-xxK 12150 DLC V5.0/V5.1 premium 2FT 175W MH, 4-lamp T8, 2-lamp T5HO
105W R4-2LHB105WD-xxK 14175 2FT 250W MH, 6-lamp T8, 4-lamp T5HO
131W R4-2LHB131WD-xxK 17685 2FT 250W MH, 6-lamp T8, 4-lamp T5HO
162W R4-2LHB162WD-xxK 21870 2FT 250W MH, 6-lamp T8, 4-lamp T5HO
178W R4-2LHB178WD-xxK 24030 2FT 250W MH, 6-lamp T8, 4-lamp T5HO
4FT
223W R4-4LHB223WD-XXK 30105 DLC V5.0/V5.1 premium 4FT 400W MH, 6-lamp T5HO
321W R4-4LHB321WD-XXK 43335 4FT 1000W MH, 10-lamp T5HO
420W R4-4LHB420WD-XXK 56700 4FT 1200W MH, 12-lamp T5HO

Specifications (Hot sales)

Item Specification Model No.
R4-2LHB90WD-xxK R4-2LHB162WD-xxK R4-4LHB223WD-XXK R4-4LHB420WD-XXK
General Performance Power Consumption(W) 90W 162W 223W 420W
Lumens Delivered(lm) 12150 21870 30105 56700
Efficacy(lm/w) ≥135
CRI ≥80
Color Temp(CCT) 4000K, 5000K
Electrical Power factor 0.99
Input Voltage 120-277AC or 120-347V
Physical Mounting Chain Standard (other options: pendant and Surface Mount Kit)
Operating -25℃ to 45℃
temperature
Humidity 10-85% RH, non-condensing
Certification Certification ETL, FCC, LM79, DLC V5.0/V5.1 Premium
Material Usage RoHS compliant, no mercury
Environment Indoor/Damp
Warranty 5 Years Limited Warranty

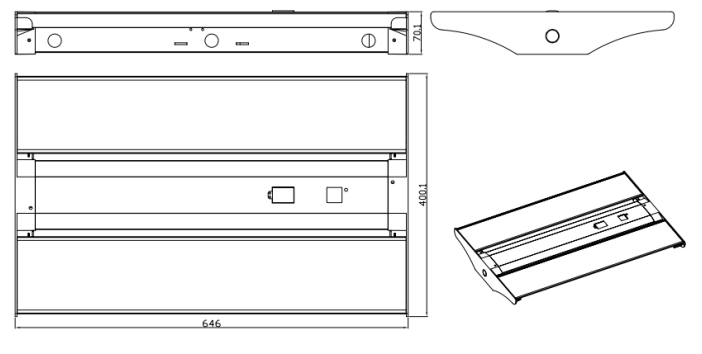

Dimensions

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Size Item No. Length Width Height
2FT R4-2LHB90WD-XXK 25.44inch 646mm 15.75inch 400.1mm 2.76inch 70.1mm
R4-2LHB105WD-XXK
R4-2LHB131WD-XXK
R4-2LHB162WD-XXK
R4-2LHB178WD-XXK
4FT R4-4LHB223WD-XXK 50.63inch 1286mm 15.75inch 400.1mm 2.76inch 400.1mm
R4-4LHB321WD-XXK
R4-4LHB420WD-XXK

Package and Shipping Information

Rated Power Model No. Carton Size Gross Weight(PC) pcs/Pallet 20GP(pcs) 40GP(pcs) 40HQ(pcs)
90W R4-2LHB90WD-XXK L26.2’’*W16.54’’*H3.54’’ 6.0kgs 114 990 2200 2850
105W R4-2LHB105WD-XXK 66.6cm*42cm*9cm
131W R4-2LHB131WD-XXK
162W R4-2LHB162WD-XXK
178W R4-2LHB178WD-XXK
223W R4-4LHB223WD-XXK L51.4’’*W16.54’’*H3.54’’ 9kgs 54 510 1140 1320
321W R4-4LHB321WD-XXK 130.6cm*42cm*9cm
420W R4-4LHB420WD-XXK

Sensor Options

Eexternal Internal (recommended) Mounting bracket and hardware:
Extenal Sensor (Microwave) Input Voltage:120-277V or 120-347V Build-inSensor (Microwave) Input Voltage:120-277V Build-inSensor (Microwave) Input Voltage:12V 2 hooks and 2 chains(1m=39.4ft length)

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time

Indoor/Damp Environment 130W LED Linear High Bay Light with 50000 Hours Working Time
