Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ILEDING
Model Number :
R10-22TR25WD3P5C
Certification :
DLC/ETL
MOQ :
2 pieces
Price :
$14.00/pieces >=2 pieces
Color Temperature(CCT) :
3500K (Warm White), warm White
Warranty(Year) :
5-Year
Color Rendering Index(Ra) :
85
Support Dimmer :
Yes
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours) :
50000
Working Time (hours) :
50000
Product Weight（kg） :
1
Warranty(Years) :
5
Input Voltage(V) :
120-277V
Lamp Luminous Efficiency(lm/w) :
130
CRI (Ra>) :
85
Working Temperature(℃) :
-40 - 40
Working Lifetime(Hour) :
50000
Lamp Body Material :
PC
IP Rating :
IP65
Application :
school/replace, Commercial
Light Source :
LED, LED
Tube Length(ft) :
2
LED Light Source :
SMD2835
CRI(Ra) :
85
Driver :
120-277V / 120-347V
Warranty :
5years
product name :
Adjust Power Tunable CCT LED Troffer Retrofit Kit Magnetic Strip Light
Function :
Hopsital
Description
Product Description
Adjust Power Tunable CCT LED Troffer Retrofit Kit Magnetic Strip Light
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit

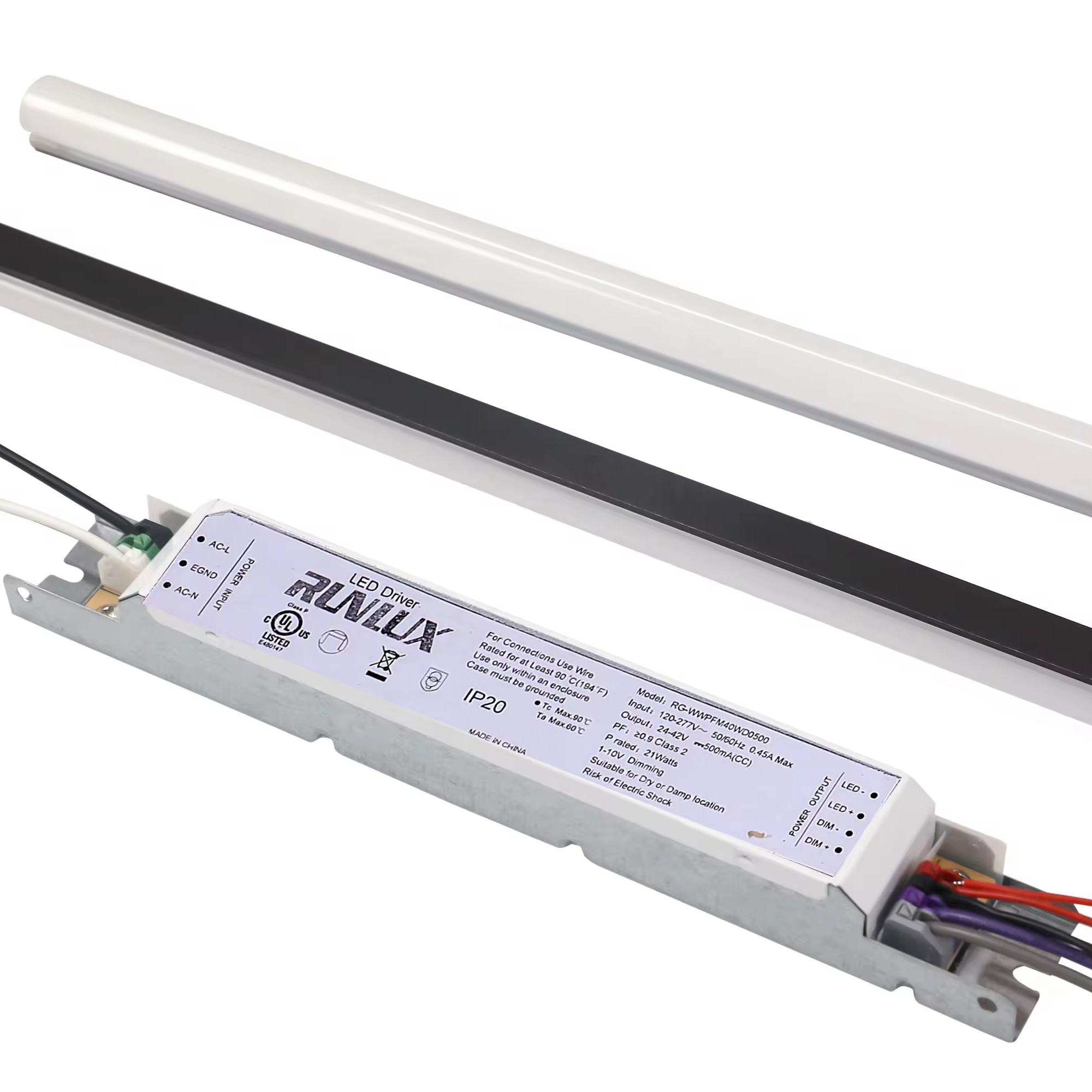

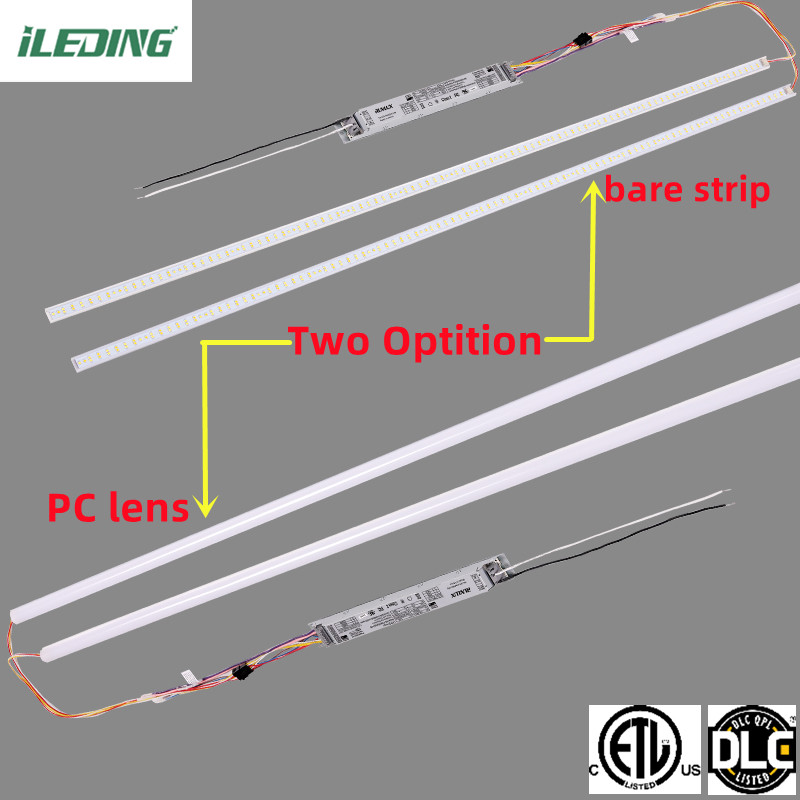

Detailed Images
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Features:
* Voltage:120-277V/60Hz, or 120-347V/60Hz
* Lumen Efficiency:140-160Lm/W LED,110-130Lm/w in Luminaire
* CCT:3000, 3500, 4000, 5000K

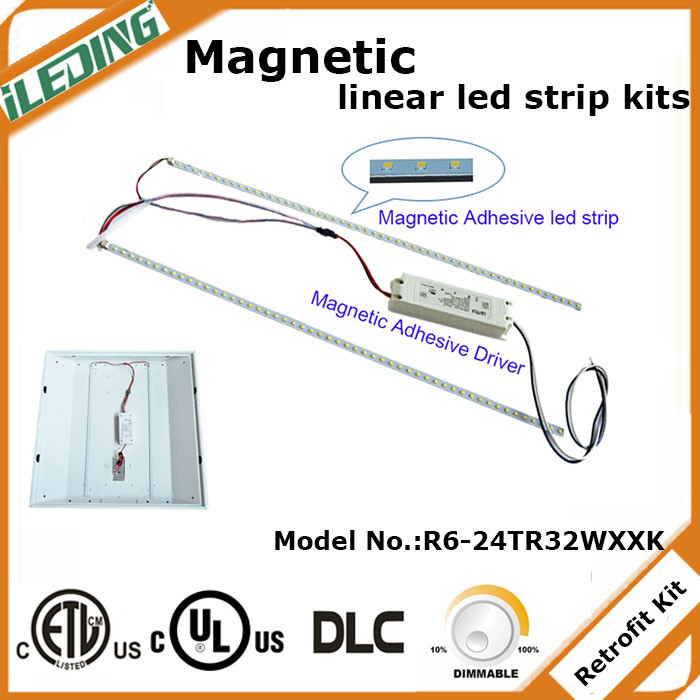

* Mounting method:Magnetic led strips and driver, quick-connect

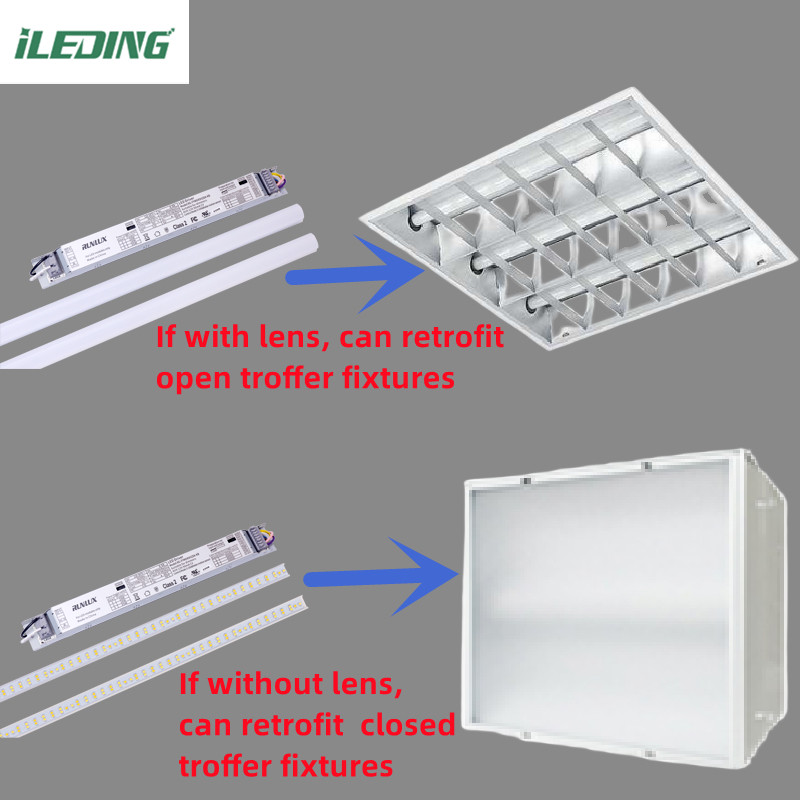

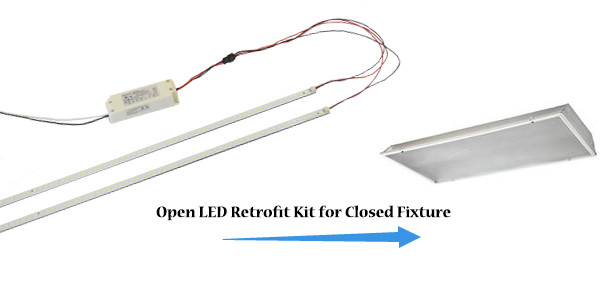

* Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” fixtures
* Dimmable is also available,4 Wattage Selectable
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Product Presentation
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Model
R10-22TR25WD3P3C
Material
PC
Power
25W/20W/15W
Voltage
120-277V
120-347V
CCT
3500K/4000K/5000K
Size
2pcs x 1100mm
Dim
0-10V
Application

The LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Related Products
Company Introduction
Shanghai ileding has a very professional quality control system. QC are strictly under control during the process of incoming inspection, production, storage and delivery, so as to guarantee a good quality.
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
Packing&Shipping
Energy Saving Dimming LED Magnetic 5CCT 3P Selectable Quick installation Linear retrofit Kit
FAQ
Q1: Are you are a factory or a trading company?
We are the factory and we have our own die-casting workshop.

Q2: All products have a warranty?
Yes, all products have 5 years warranty at least.

Q3: Can you put our brand name or logo on our products?
Yes, we support ODM and OEM service.

Q4: Can i have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mix samples are acceptable.

Q5: How to deal with the faulty?
Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.
Secondly, if there are some problems, please contact with us. We can discuss how to deal with them
until you are satisfied.
