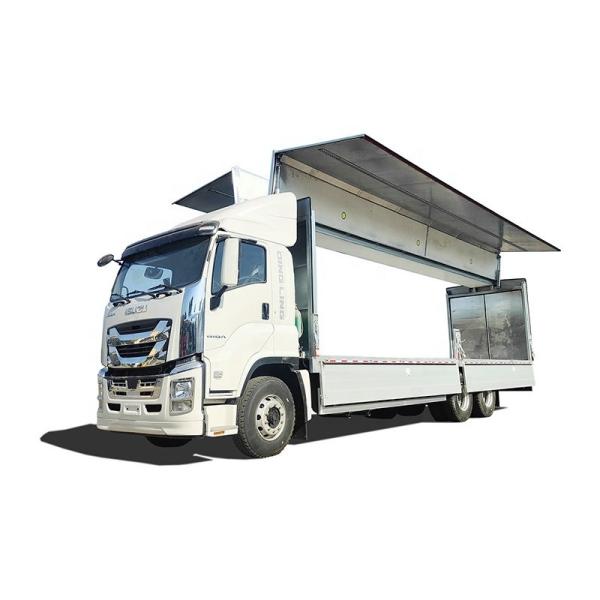

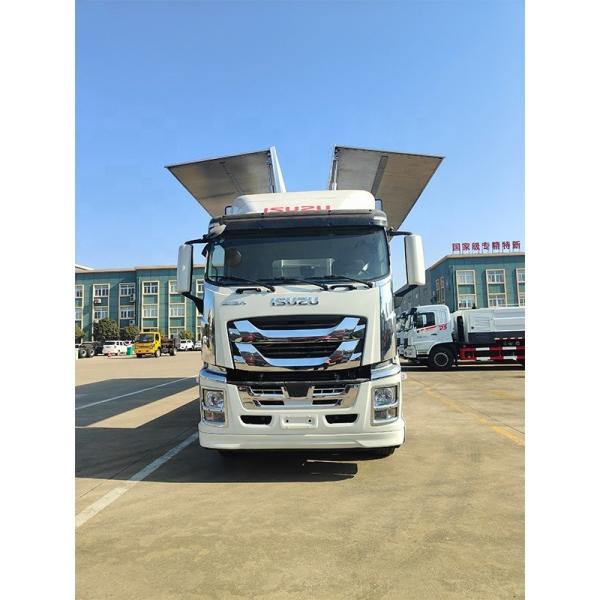

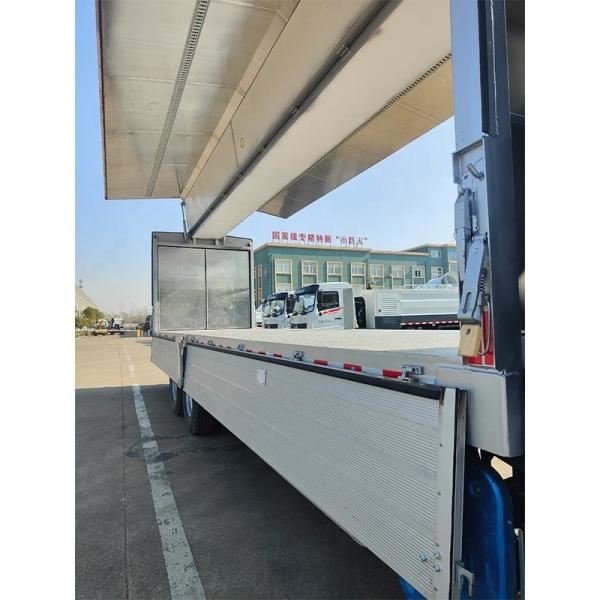

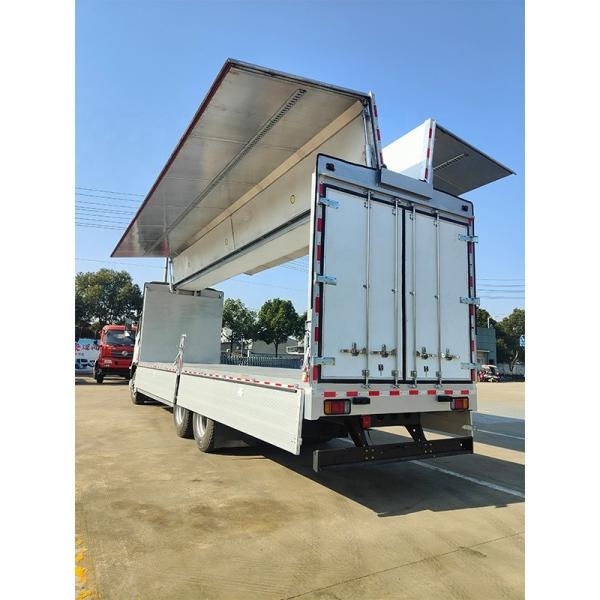

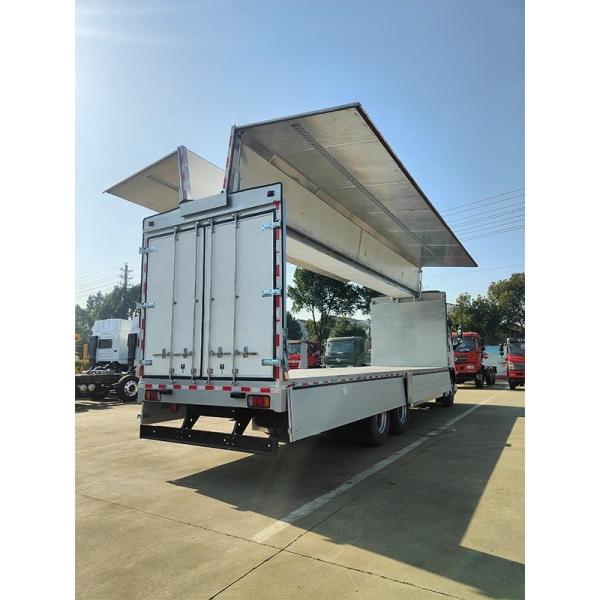

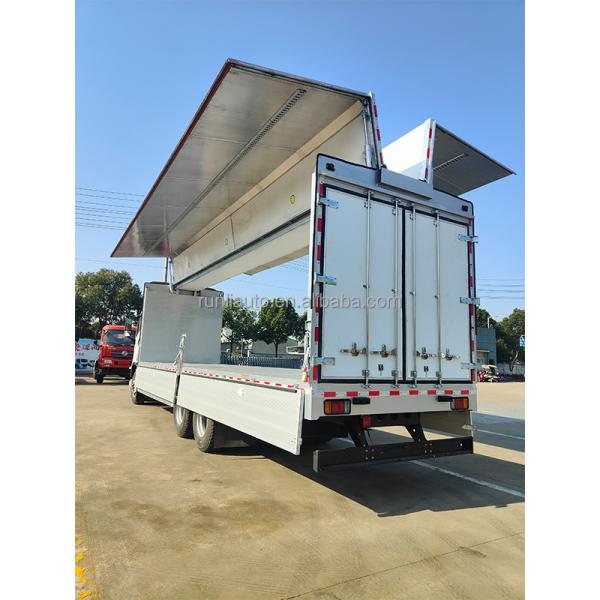

ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
Specifications
Condition :
New
Transmission Type :
Manual
Emission Standard :
EURO 5
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
11990X2550X3990
Gross Vehicle Weight :
10725
Place of Origin :
Hubei, China
Brand Name :
SCS
After-sales Service Provided :
Video technical support, Return and Replacement, Online support
color :
optional
Brand :
Accepted
Application :
Transport
Driving type :
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
Certificate :
ISO9001 CCC
Price :
CN¥248,736.08/sets >=1 sets
Description
Product Description
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
Vehicle Parameters
Overall Dimension(L x W x H)
11990×2550×3990
Curb Weight:
10725Kg
GVW:
25000Kg
Wheelbase:
3985+1370mm
Drive Type:
6x4
Brake System:
Air Brake
Cylinder
6 In-line
Engine Model:
6UZ1-TCG51
Max output:
257Kw
Displacement:
9839cc
Horsepower:
350HP
Rated Speed:
2100rpm
Max torque:
1422N.m
Transmission type:
12 Speed Manual
Cabin
Cabin Type:
Plat roof single sleeper
Front Seat:
2


Chassis
Front Wheel Distance:
2060mm
Rear Wheel Distance:
1855/1855mm
Axle Loads:
Three Axles
Rear Axle Ratio:
5.571
Tires:
11(Including spare tire)
Tire Model:
12R22.5
Standard Configuration:
1
Power Steering
2
AC
3
Retro-reflective Marking
4
Tubeless Tire
5
ABS
6
Free Maintenance Battery
7
Central Lock
8
Power Window
9
Data Recorder
10
Air suspension cabin
11
Air suspension seat
12
Front Chrome Kit
13
Aluminum Gas Storage Tank
Van body
Dimension(L x W x H)
9600x2400x2400mm (front tipper)
Thickness
Side 2mm, bottom 2mm
Packing & Delivery
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
ISUZU 6x4 Wingspan Wing Van Truck Flatbed Truck
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
