Specifications
Condition :
New
Steering :
Left
Emission Standard :
Euro 2
Brand Name :
JMC
Place of Origin :
Hubei, China
Segement :
Light truck
Market Segement :
Logistics transportation
Engine Brand :
JMC
Fuel Type :
Diesel
Engine Capacity :
< 4L
Cylinders :
4
Horsepower :
< 150hp
Gear Box Brand :
WLY
Transmission Type :
Manual
Forward Shift Number :
5
Reverse Shift Number :
1
Maximum Torque(Nm) :
500-1000Nm
Size :
5995x2300x2300
Cargo Tank Dimension :
4x2x2x04
Cargo Tank length :
≤4.2m
Cargo Tank Type :
Column plate
Gross Vehicle Weight :
<=5000 kg
Capacity (Load) :
1 - 10t
Fuel Tank Capacity :
100-200L
Drive Wheel :
4X2
Passengers :
2
Driver's Seat :
Normal
Seat Rows :
Single row
Rear Camera :
None
Cruise Control :
Normal
ABS(Antilock Braking System) :
None
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
None
Window :
Manual
Air Conditioner :
Automatic
Tire Number :
6
After-sales Service Provided :
Onsite Installation, Video technical support, Online support
Price :
CN¥79,537.70/units 1-4 units
Description

JMC Single Row Cargo Truck JMC Double Row Cargo Truck JMC 3Ton Lorry Truck

Basic Information
Truck Dimension 5800*2200*2350 Box Dimension 3850,4150*1850*380
Drive Type 4X2 Wheelbase(mm) 2850,3360
Box length Level (M 3.8 Engine JX493
Transmission 5-speed gearbox Truck length(mm) 5800
Truck width (mm) 2200 Truck height(mm) 2350
Front tread (on wheel )(mm) 1460 Rear tread (on wheel )(mm) 1475
Curb weight (kg) 2355 Rated loading weight(kg) 2005
Gross weight 4490 Max. Speed(km/h) 110
Origin China Tonnage class Light duty
Approach angle (º) 17 Departure angle (º) 16
Front/rear suspension (mm) 1115/1525
Engine Parameters
Engine model JX493 Cylinder number 4
Fuel type Diesel Cylinder arrangement inline
Displacement (L) 2.771 Emission standard Euro 2
Max. output power(kw) 68 Max.Horsepower(hp) 92
Max. Torque(N.m) 220 Max. torque speed(RPM) 2200
Rated speed(RPM) 1800 Engine type /
Cargo box parameters
Cargo box form Panel type Length (mm) 3850
Width (mm) 1850 Height (mm) 380
Cab parameters
Occupancy 2person Seat rows Single
Cabin width 1890mm Air conditioner Yes
Transmission parameters
Transmission Model 5-speed gearbox(5MT) Shift mode Manual
forward gear 5 reverse gear 1
Chassis parameters
Allowable front axle load(kg) 1670 Allowable rear axle load(kg) 2820
Number of spring plates 3/3+3 Fuel Tank(L) 66
Tires
Tire Specification 7.0R16 14PR Number of tires 4

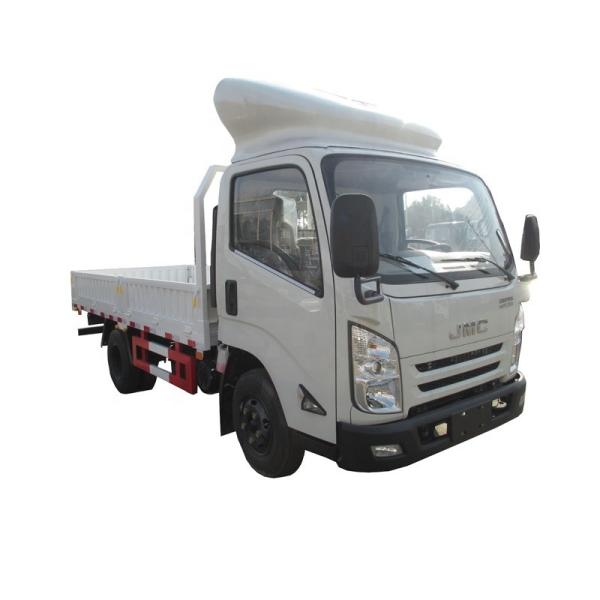

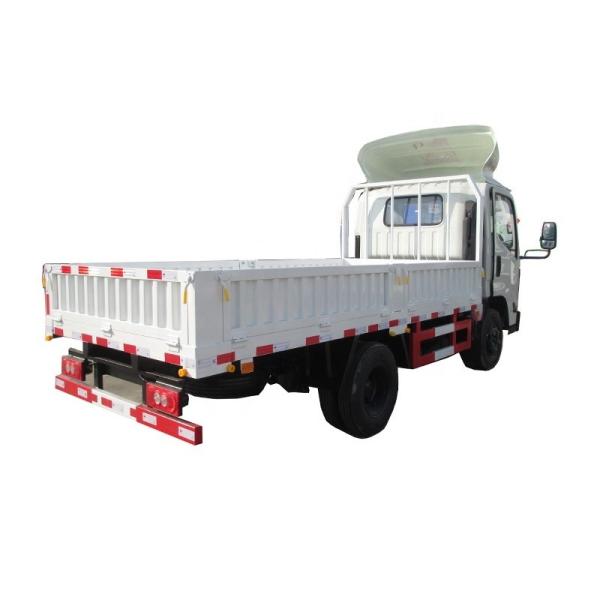

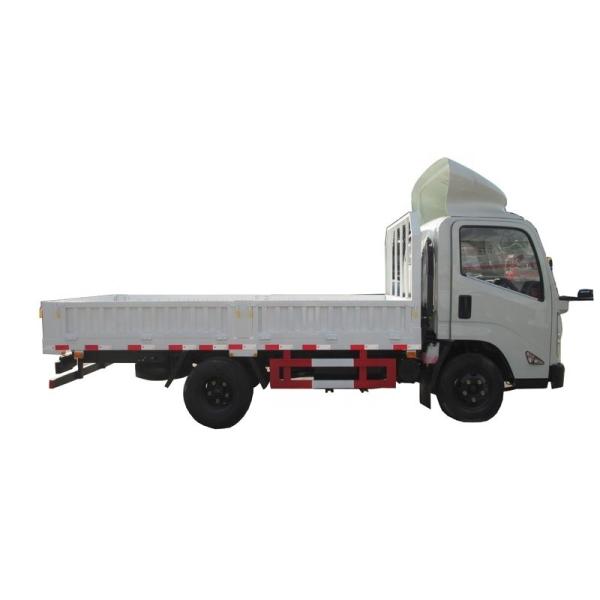

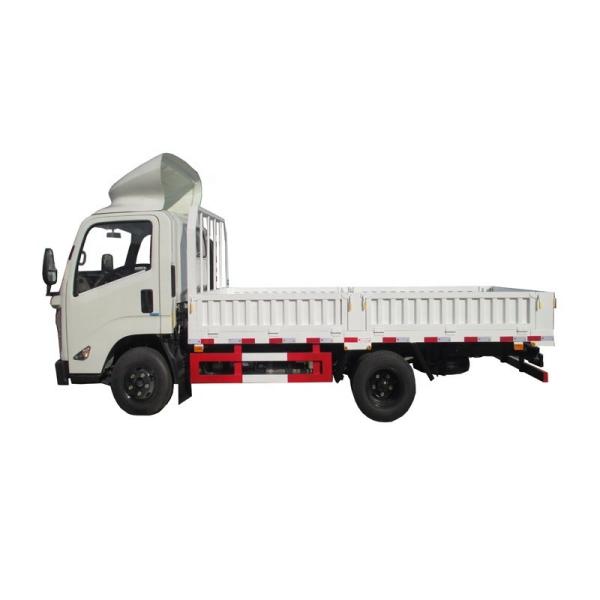

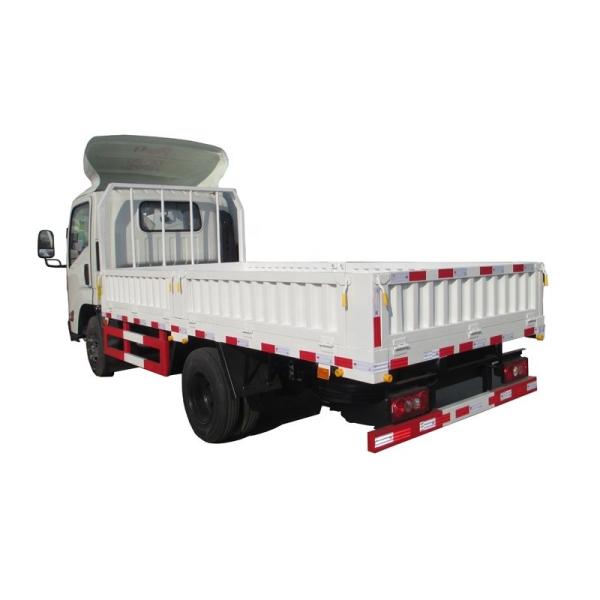

Detailed Images
