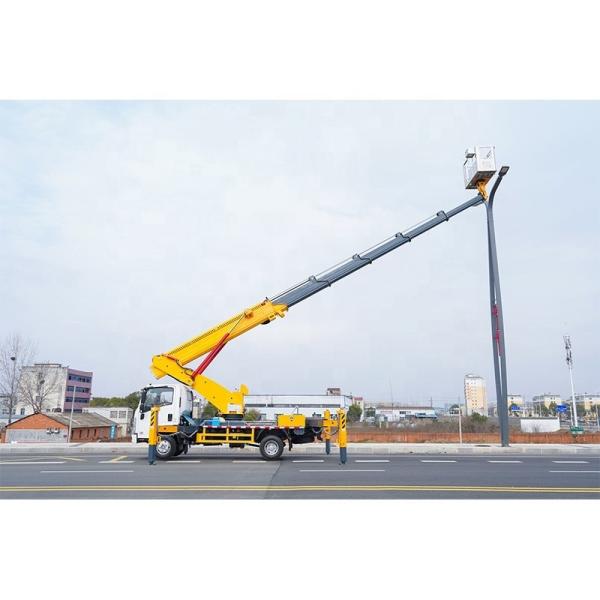

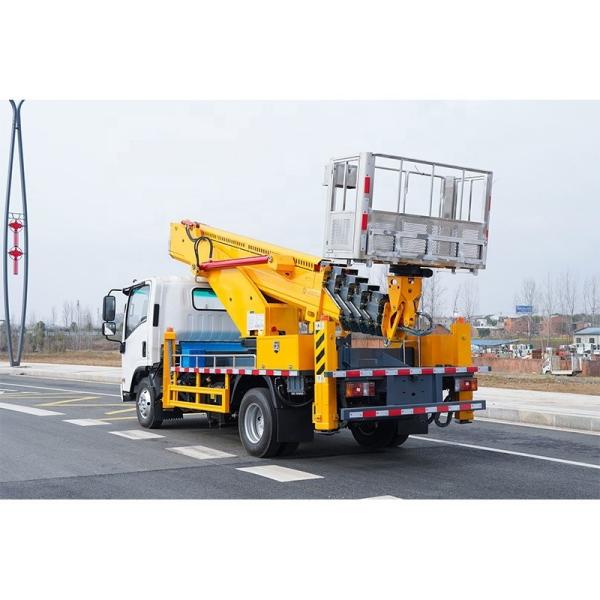

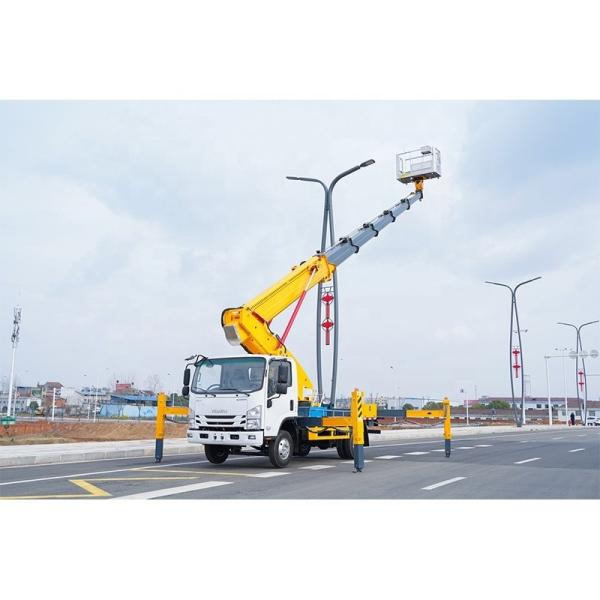

NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck
Specifications
Transmission Type :
Manual
Condition :
New
Emission Standard :
EURO 5
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
5995*1960*3000mm
Place of Origin :
Hubei, China
Brand Name :
SCS
After-sales Service Provided :
Onsite Installation, Field installation, commissioning and training, Field maintenance and repair service
Horsepower :
< 150hp
Engine Capacity :
4 - 6L
Fuel Tank Capacity :
100-200L
Control system :
Hydraulic Control Aerial Platform Truck
Drive type :
4*2 LHD/RHD
Bucket max height :
20.3m/34.3m/45.3m
Color :
Requirements
Vehicle name :
Aerial Operation Truck
Lift Mechanism :
Telescoping Lift
Outrigger Lateral span :
Front5500mm /back5500mm
Standing Legs :
Front V and rear V single leg
Degree of the overturn :
360°
Price :
CN¥133,767.95/units >=1 units
Description
Product Description

NMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform TruckNMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform TruckNMR KV100 NPR ISUZU 4x2 120HP 190HP 27 m 32 m 36 m Aerial Platform Truck

Vehicle information Items

Technical parameters

Chassis model

QL1040A6FAY

Brand of chassis

ISUZU 4x2

Hand driven

Left hand

Overall dimensions ( L * W * H)

5995×1960×3000m

Lifting height

27 meters

Lifting weight

200 KGS

Wheel base

2795 mm

Tire

6.50R16LT 10PR

(6+1 spare)

Engine

4KH1CN5LS

Emission Standard

Euro V

Transmission

MSB Five speed

Traction system

4x2

Number of axles

2

Electric system

24V

Displacement

72kw/2999ml

Engine horsepower

98 hp

Axle load

2.0tons (front)/4-4.8tons (rear)

Approach angle /Departure angle

20/12

Cabin seat

2

Max.speed

103 km/h

Operation control system

Steering wheel

Equipment

Air-condition/Radio/USB/Power steering

Standard Equipment

Equipped with engine device, emergence power units

Technical

parameters

Boom

Five hexagonal arms, synchronous telescopic

Max operation height

27 meters

Max operation rear

21 meters

Max lifting height side

18 meters

Working platform rating loading

200 kg

Working platform dimension

1600×650×1150mm

Degree of the overturn:

360°turning(left or right)

Standing Legs

Front V and rear V single leg

Leg span

Horizontal

5500 mm

vertical

5500 mm
