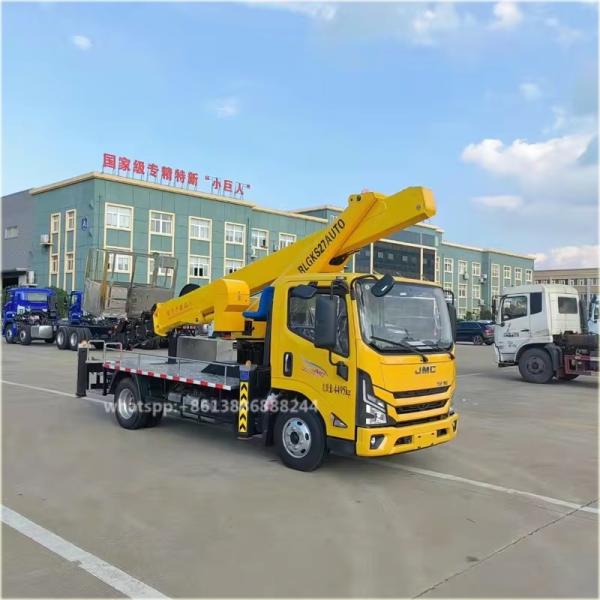

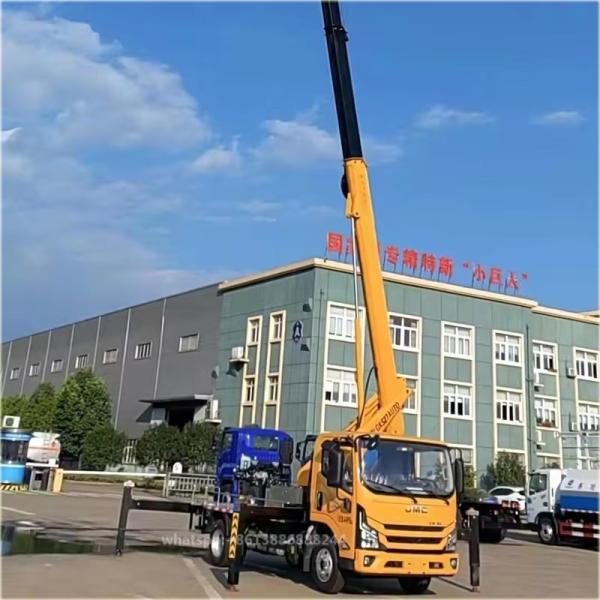

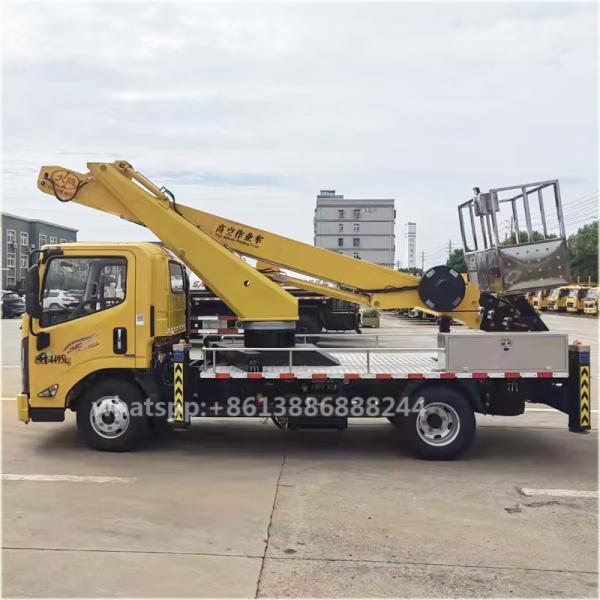

JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry
Specifications
Transmission Type :
Manual
Condition :
New
Emission Standard :
Euro 6
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
5998*2000*3000
Place of Origin :
Hubei, China
Brand Name :
JMC
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
Horsepower :
< 150hp
Engine Capacity :
< 4L
Fuel Tank Capacity :
≤100L
Control system :
Remote Control
COLOR :
Customer's Requirement
Working height :
8-45m Option
Cab :
Wide body cab
Price :
CN¥122,198.83/sets 1-17 sets
Description

JMC Single Row Wide Body Cab Telescopic Arm High-altitude Work Truck Hoisting Work Lorry

The configuration description mainly consists of configuration

The main components and configurations of SCS5041JGKJX6 high-altitude work vehicle

Component Name

Brief description

chassis

JMC JX1044TGA26 Class II chassis, power steering, air brake


engine


Jiangxi IsuzuJX493ZLQ6F engine, maximum power 95kw, 130 horsepower

Driver's cab

Single row seat, with 2 passengers allowed, and the driver's cabin equipped with air conditioning and storage systems

Fence and walkway board

Stainless steel toolbox, aluminum alloy anti slip walkway, stainless steel fence

Power take-off system

Pneumatic control, gear pump directly connected to power take-off

Work Platform

one thousand and four hundred × seven hundred × 1100 mm, rated load 200kg, double person steel work platform (expandable to 2 meters)

Arm form

Six hexagonal arms and five synchronous telescopic arms

Pipeline layout form

External drum


Rotating device

The turntable rotates continuously ± 360 °, and the worktable rotates ± 360 °

Outrigger

rear V-shaped, individually adjustable

operation

Rotary table hydraulic handle operation, standard wireless remote control operation, vehicle hydraulic handle operation, equipped with emergency electric hydraulic pump.

control system

Load sensitive electro-hydraulic proportional control, achieving stepless speed regulation

Leveling system


Hydrostatic leveling system

Basic functions and safety configuration

Basic functional safety configuration of SCS5046JGKEQ6 high-altitude work vehicle: The work vehicle can achieve high-altitude work with a platform load of 200kg, a maximum working height of 30m, and a maximum working amplitude of 14m for the boom. The work platform is automatically leveled.

name

Brief description

Automatic interlocking device for boarding and alighting

Used for interlocking boarding and alighting, to prevent danger from accidental operation

Emergency electric hydraulic pump

When the chassis engine or hydraulic main pump malfunctions, operating the electric pump can send the workers back to the ground

Emergency stop device


Used for emergency stop operations

Spirit level

Can detect the tilting status of the entire vehicle in both horizontal and vertical directions

Engine ignition and shutdown

Engine ignition and shutdown control can be performed at both the turntable and remote control

Compound action

It can freely move in any action group, while achieving extension/contraction, amplitude rise/fall, turntable rotation, and worktable rotation.

Remote control (wireless)

Can perform wireless remote control operations over a wide range
