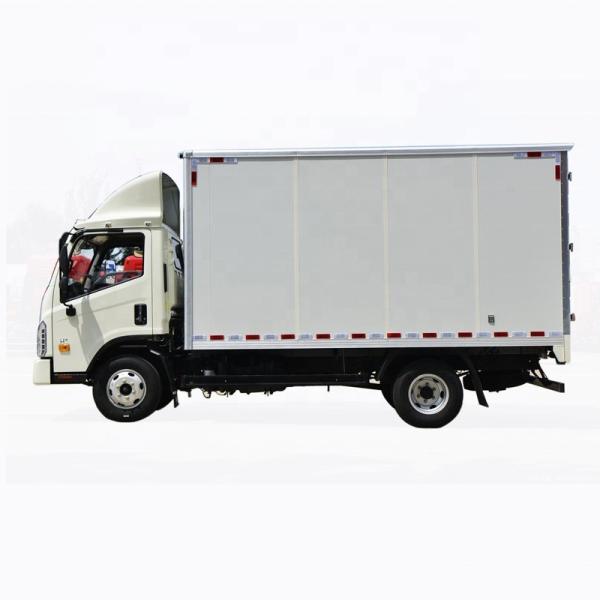

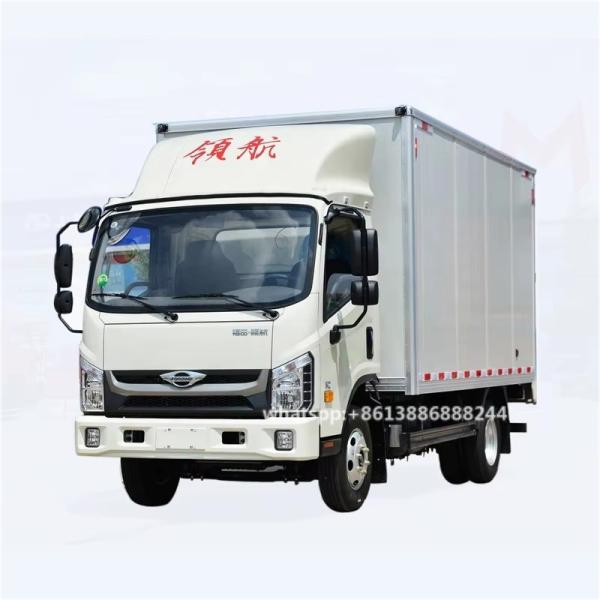

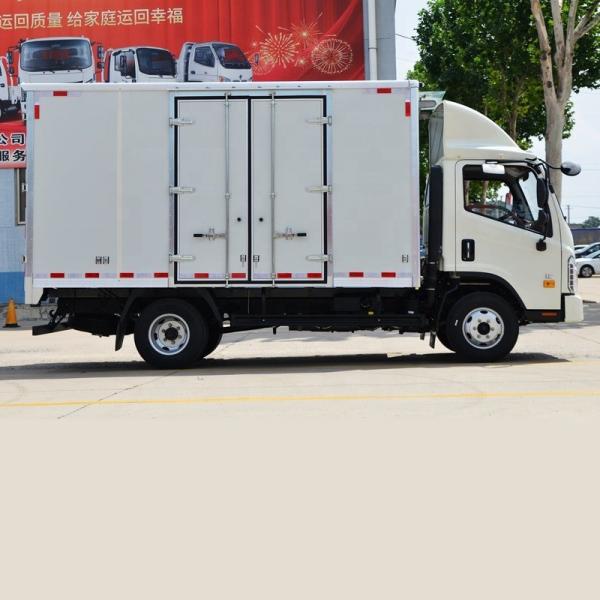

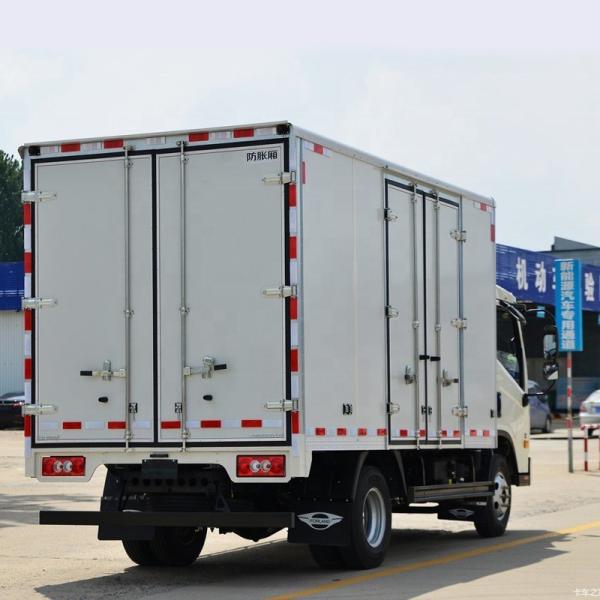

FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler
Specifications
Brand Name :
Foton
Place of Origin :
Hubei, China
Price :
CN¥86,768.40/sets 1-17 sets
Condition :
New
Steering :
Left
Emission Standard :
Euro 6
Segement :
Light truck
Market Segement :
Logistics transportation
Fuel Type :
Diesel
Engine Capacity :
< 4L
Cylinders :
4
Horsepower :
< 150hp
Transmission Type :
Manual
Forward Shift Number :
5
Reverse Shift Number :
1
Maximum Torque(Nm) :
≤500Nm
Cargo Tank Dimension :
4.15*2.3*2.3
Cargo Tank length :
≤4.2m
Cargo Tank Type :
Van
Gross Vehicle Weight :
<=5000 kg
Capacity (Load) :
1 - 10t
Fuel Tank Capacity :
≤100L
Drive Wheel :
4X2
Passengers :
3
Driver's Seat :
Normal
Seat Rows :
Single row
Rear Camera :
Camera
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
Yes
Window :
Automatic
Tire Number :
6
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
Color :
Customer's Request
Description

FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler

FOTON Single Row Cargo Van Truck Light Dry Van Truck 95KM/H 6 Wheeler

Announcement model: BJ5046XXY9JDA-51
Type: A van
Driving form: 4X2
Wheelbase: 3360mm
Case length level: 4.2 m
Engine: Full Chai Q23-115E60
Gearbox: Wan Li Yang WLY5TS32
Rear axle speed ratio: 4.875
Body length: 5.995 meters
Body width: 2.245/2.445 m
Body height: 3.15/3.35m
Front wheel base: 1550mm
Rear wheel base: 1485mm
Vehicle weight: 2.805 tons
Rated load: 1.495 tons
Total mass: 4.495 tons
Maximum speed: 95KM/h
Tonnage class: Light truck
Approach Angle: Twenty-one degree
Departure Angle: 16 degrees
Front/rear overhang: 1.13/1.505 m
Engine type: Full Chai Q23-115E60
Engine brand: Whole wood
Engine commonly known as: All wood 2.3L
Number of cylinders: 4-cylinder
Fuel Type: Diesel oil
Cylinder arrangement: orthostitial
Displacement: 2.3 L
Emission standard: e
Maximum output power: 85kw
Maximum horsepower: 115 horsepower
Maximum torque: 320N·m
Maximum torque speed: 2000RPM
Rated speed: 3000RPM
Engine form: In-line four-cylinder, water-cooled, four-stroke, supercharged intercooled, high pressure common rail
Container form: Van type
Container length: 4.15 m
Container width: 2.1/2.3 m
Container height: 2.1/2.3 m
Cab: Flat roof
Cab width: 1850mm
Number of permitted passengers: Three people
Number of seats: Single row
Transmission model: Wan Li Yang WLY5TS32
Shift mode: Manual operation
Forward gear: Fifth gear
Number of reversals: one
Tank capacity: 70L
Front axle allowable load: 1800KG
Frame size: 170 * 55 * 4.5 mm
Rear axle description: NPR
Rear axle allowable load: 2695KG
Speed Ratio: 4.875
Number of spring pieces: 3/6 + 6
Tire Specifications: 7.00R16LT 8PR
Number of tires: six
