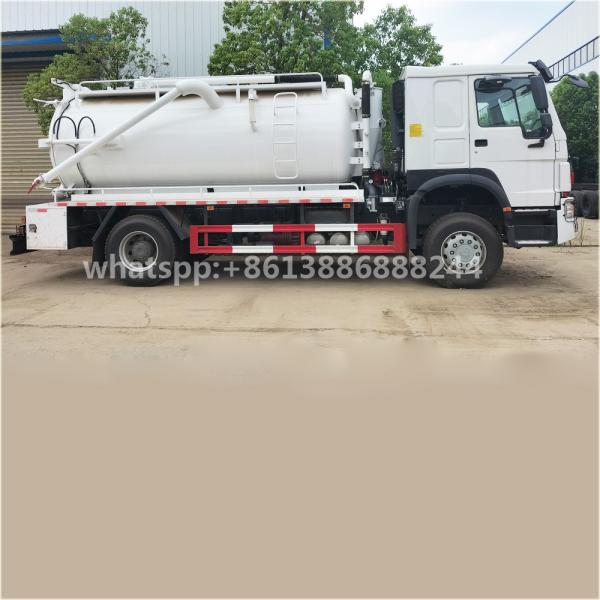

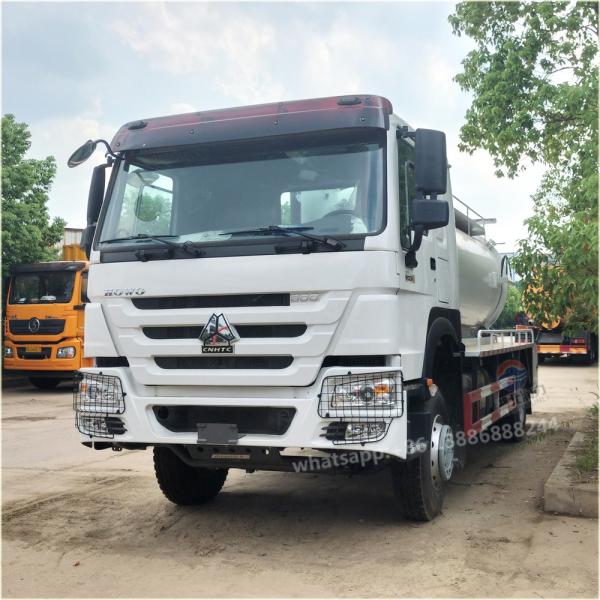

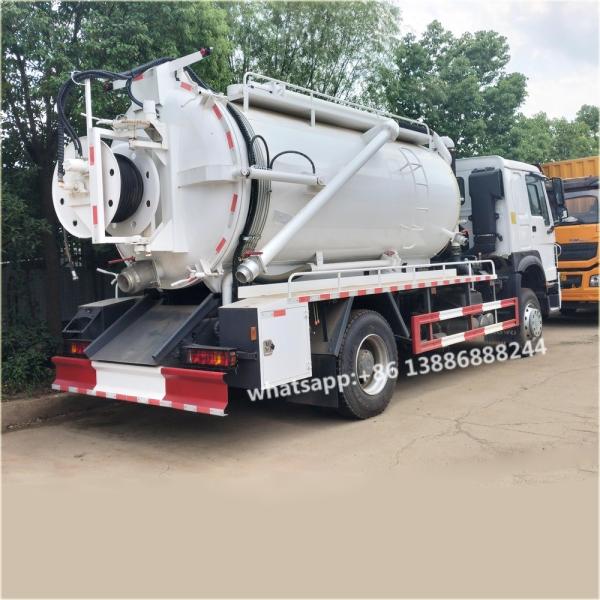

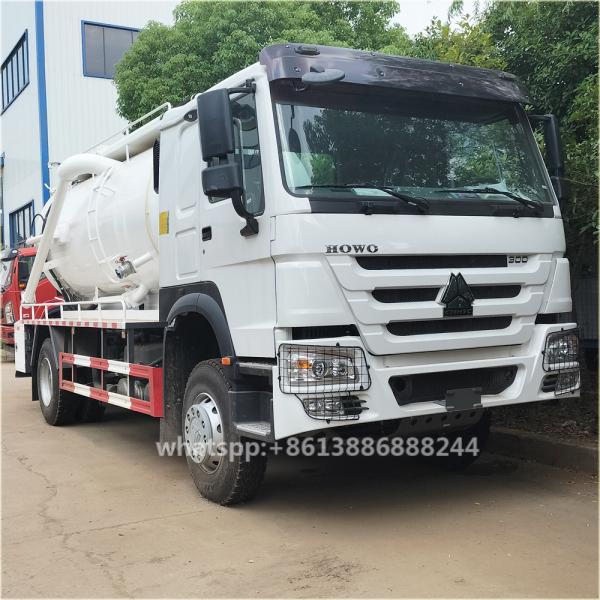

Product name | HOWO sewage suction truck |
Function | suction dirt, self-suction, self-drainage, direct irrigation |
Tank volume (m3) | `15 |
Total weight (Kg) | 18000 |
Rated load weight (Kg) | 8590 |
Curb weight (Kg) | 9280 |
Cab capacity (persons) | 5 |
Overall dimensions (mm) | 8050 *2500 *3600mm |
Maximum speed (Km/h) | 89-103 |
Wheelbase (mm) | 4600 |
Engine brand | Weichai |
Power (Kw)/ horsepower (PS) | 220/300 |
Discharge basis standard | EuroII |
gearbox | 8speed transmission |
Tyre type | 10.00R20 |
High pressure pump | 300 |
Top standard configuration | The tank body is made of Q235 high-quality carbon steel plate, circular tank body and dish-shaped head. The special part is composed of force extraction device, transmission shaft, vacuum suction pump, pressure tank body (using national standard 6mm thick carbon steel plate), hydraulic part, pipe network system, vacuum pressure gauge, fecal window, liquid level alarm device, hand washing device, etc. |
