5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
5000 Liters Mini Water Fire tank Truck
Specifications
Drive Wheel :
4X2
Type :
Pumper
Transmission Type :
Manual
Condition :
New
Horsepower :
< 150hp
Tank Capacity :
3001 - 5000L
Emission Standard :
Euro 3
Fuel Type :
Diesel
Max. Work Height :
45 - 60
Size :
5950*1950*2150
Place of Origin :
Hubei, China
Brand Name :
Dongfeng
color :
optional
skype :
kilen.automobile
Chassis brand :
Dongfeng Foton Forland Howo Faw
Fire Engines box volume :
5cbm
Weight of Fire truck :
6T
Tank material :
Carbon Steel. Stainless Steel
Tank :
Water Tank 5000L
Steering wheel :
LHD RHD
Other name :
DONGFENG Fire Escape Truck
Product Name :
Fire Fighting Truck Water Pump
Packaging Details :
Standard export package
Port :
Shanghai
Supply Ability :
500 Set/Sets per Month
Price :
CN¥83,153.05-97,614.45/sets
Description

5000 liters mini water fire tank truck

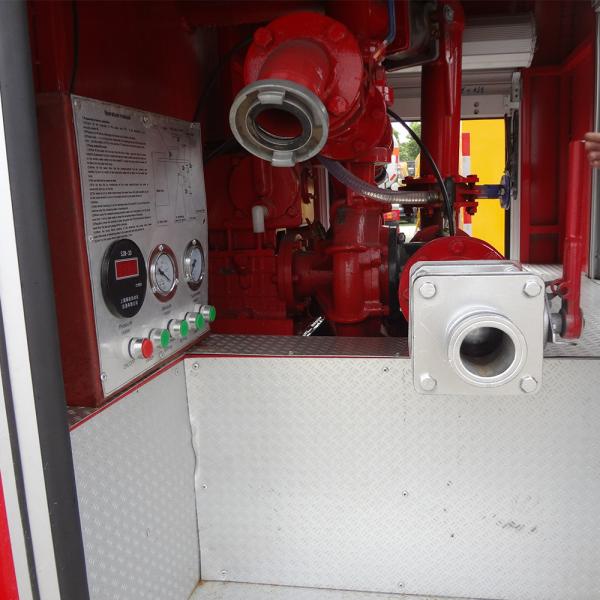

Type of fire pump : Centrifugal pump

Minimum fire pressure : 1.0MPa

Minimum fire pump capacity : 30L/s

Fire fighting pump suction depth > 7m

Fire fighting pump suction time < 35s

Delivery outlet (B/S) type : 65mm (21/2 inch)

Fire fighting nozzle range > 55m

Rotation angle of fire fighting: 360

Turret nozzle

Pipe line (inlet) : 4”one on both side 2

Pipe line (outlet) : 2½”two on both side 2

Vehicle Main Parameters:

Main technical parameter

Truck origin

Hubei Runli special automobile Co.,Ltd.

Truck name

5000 liters mini water fire tank truck

Product No.

Max. Total mass(kg)

6495

Tank capacity(M3)

5 CBM

Rated Loading mass(kg)

3000

External dimensions (L×W×H)(mm)

5950×1950×2150

Kerb mass(kg)

3300

Cargo dimensions

(L×W×H)(mm)

Cab seats

3

Loading mass Utilization factor

Approach/departure angle

14/13

F/R overhang

1032/1618

Number of axles

2

Wheelbase(mm)

3300

Axle loading(kg)

2845/3650

Max speed(km/h)

80

chassis technical parameter

Chassis model

EQ1060

Chassis name

brand

Dongfeng

Fuel of type

Diesel

Emission standards

GB3847-2005,GB17691-2005

Engine model

manufacture

Displacement(ml)

SD4BW70-3R

Jiangsu Sida Machine group

2545ml/70kw

Site photos

5000 Liters Mini Water Fire tank Truck5000 Liters Mini Water Fire tank Truck5000 Liters Mini Water Fire tank Truck

5000 Liters Mini Water Fire tank Truck

5000 Liters Mini Water Fire tank Truck

Factory ability show

Factory Ability Show

5000 Liters Mini Water Fire tank Truck

Different Fire Truck Series

5000 Liters Mini Water Fire tank Truck

Water/Foam Fire Truck Tools and Accessories:

5000 Liters Mini Water Fire tank Truck

Our Services

Our products scope:

1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery.

We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..

If you have more requirment ,please kindly let Kilen Chen know

Contact information

HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD was founded in 1997, covers an area of 1400 square meter, which is the first domestic private enterprises entering the special automobile industry. The company has focused on all kinds of special automobile R & D, manufacturing, sales and service, two special automobile production lines of the company has the most advanced tank trucks and multi-function rescue fire trucks.
The company is special automobile production base of Dongfeng, Jiefang, Foton, Sino truck, Shanxi Auto etc, and is the strategic partners with the Sinopec and PetroChina.

If you have any questions or need much more information, pls do not hesitate to contact with me.

More specs , photos, price, delivery time and other need,

please contact with Kilen.

Hotline: 0086 155 8688 7678

QQ number: 676459215 Skype:kilen.automobile

Welcome to visit our company! Suizhou city, Hubei Province.
