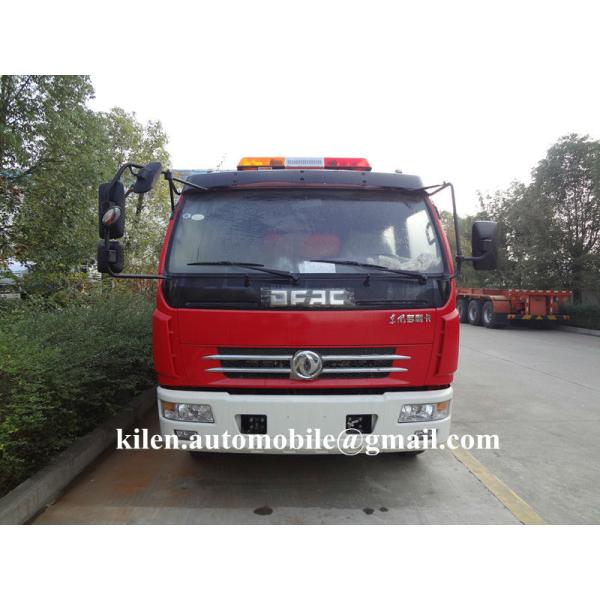

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel
Specifications
Place of Origin :
Hubei, China
Brand Name :
Dongfeng
Model Number :
EQ1060
Packaging Details :
Standard export package
Supply Ability :
500 Set/Sets per Month
Price :
CN¥148,229.35-151,844.70/sets
Drive Wheel :
4X2
Type :
Pumper
Transmission Type :
Manual
Condition :
New
Horsepower :
< 150hp
Tank Capacity :
3001 - 5000L
Emission Standard :
Euro 2
Fuel Type :
Diesel
Size :
8370*2470*3150
color :
optional
skype :
kilen.automobile
Port :
Shanghai
Description

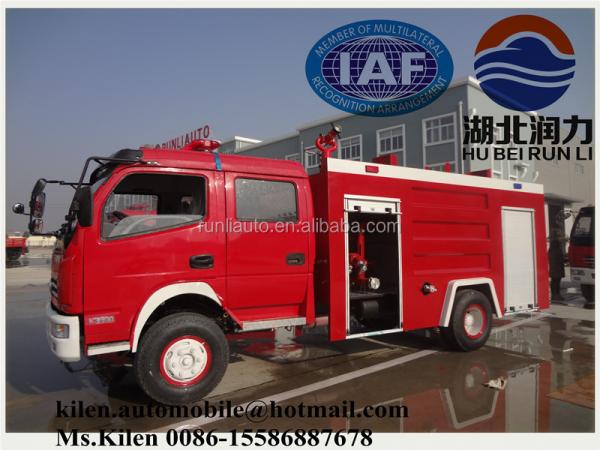

Dongfeng EQ1090 Fire fighting truck with water tank

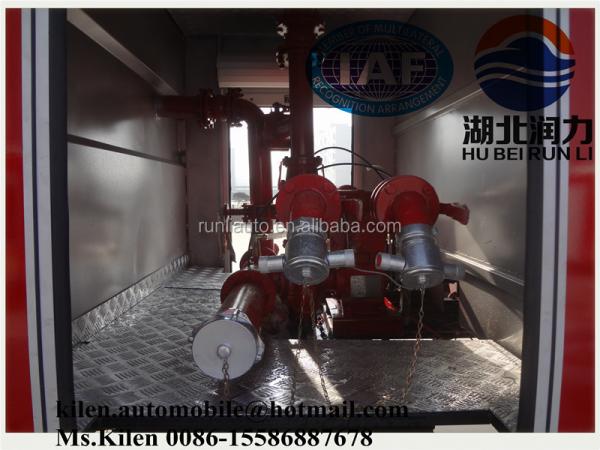

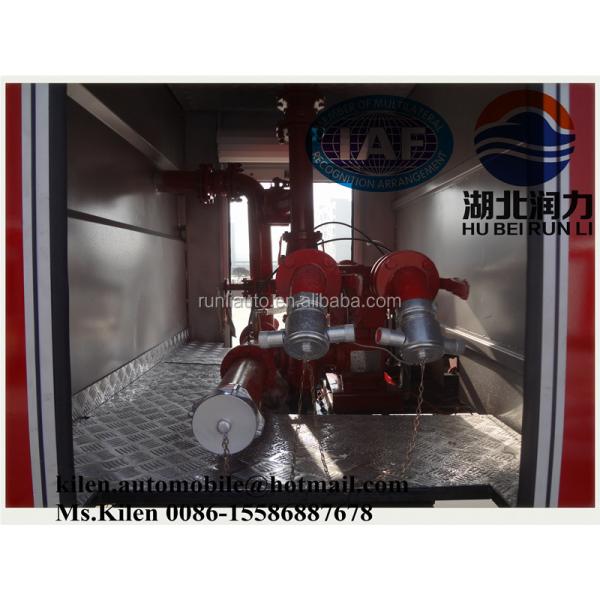

Type of fire pump : Centrifugal pump

Minimum fire pressure : 1.0MPa

Minimum fire pump capacity : 30L/s

Fire fighting pump suction depth > 7m

Fire fighting pump suction time < 35s

Delivery outlet (B/S) type : 65mm (21/2 inch)

Fire fighting nozzle range > 55m

Rotation angle of fire fighting: 360

Turret nozzle

Pipe line (inlet) : 4”one on both side 2

Pipe line (outlet) : 2½”two on both side 2

Vehicle Main Parameters:

Main technical parameter

Truck origin

Hubei Runli special automobile Co.,Ltd.

Truck name

fire fighting truck with water tank

Product No.

Max. Total mass(kg)

6495

Tank capacity(M3)

4.5

Rated Loading mass(kg)

3000

External dimensions (L×W×H)(mm)

5950×1950×2150

Kerb mass(kg)

3300

Cargo dimensions

(L×W×H)(mm)

Cab seats

3

Loading mass Utilization factor

Approach/departure angle

14/13

F/R overhang

1032/1618

Number of axles

2

Wheelbase(mm)

3300

Axle loading(kg)

2845/3650

Max speed(km/h)

80

chassis technical parameter

Chassis model

EQ1060

Chassis name

brand

Dongfeng

Fuel of type

Diesel

Emission standards

GB3847-2005,GB17691-2005

Engine model

manufacture

Displacement(ml)

SD4BW70-3R

Jiangsu Sida Machine group

2545ml/70kw

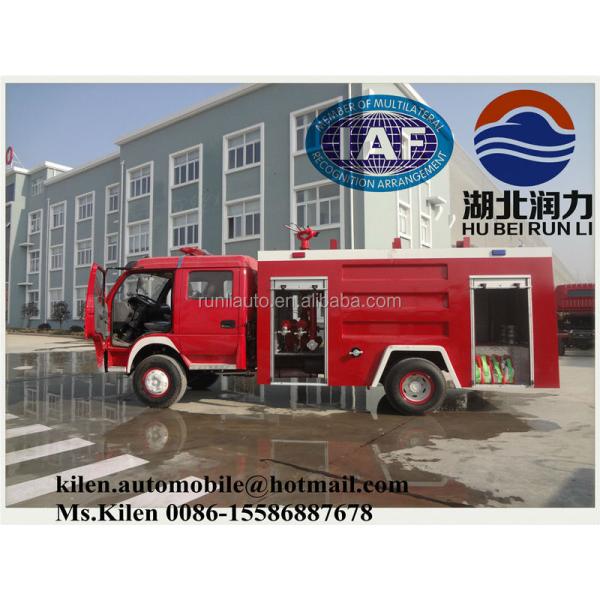

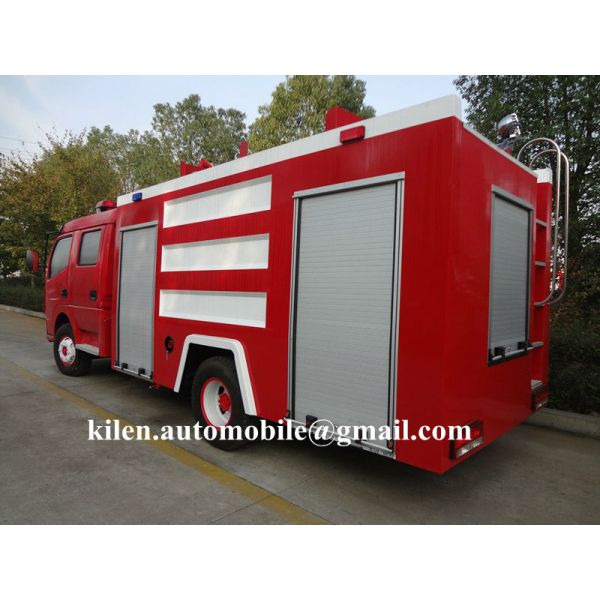

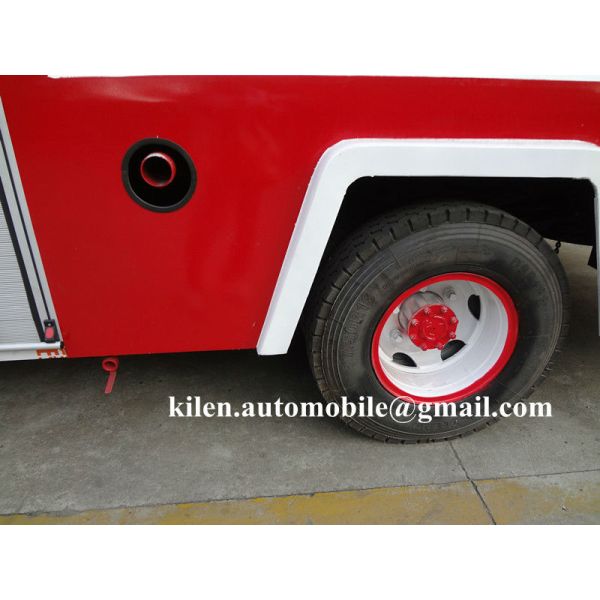

Site photos

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive WheelDongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive WheelDongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive WheelDongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive WheelDongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Company certification

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Customers visiting & Canton Fair

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

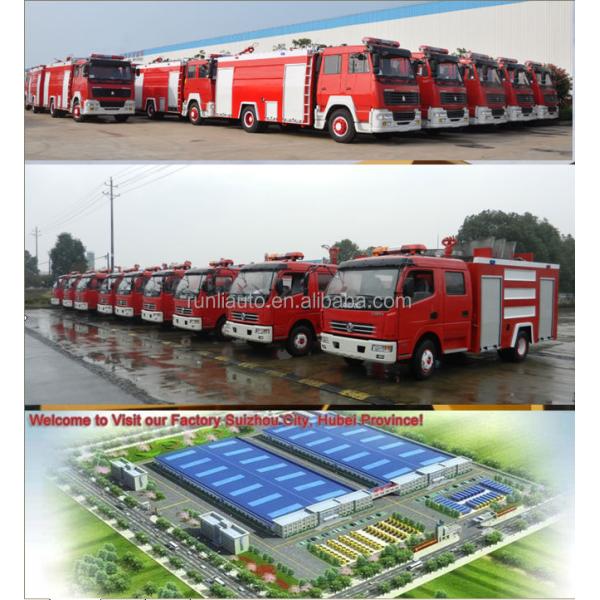

Factory Ability Show

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Different Fire Truck Series

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

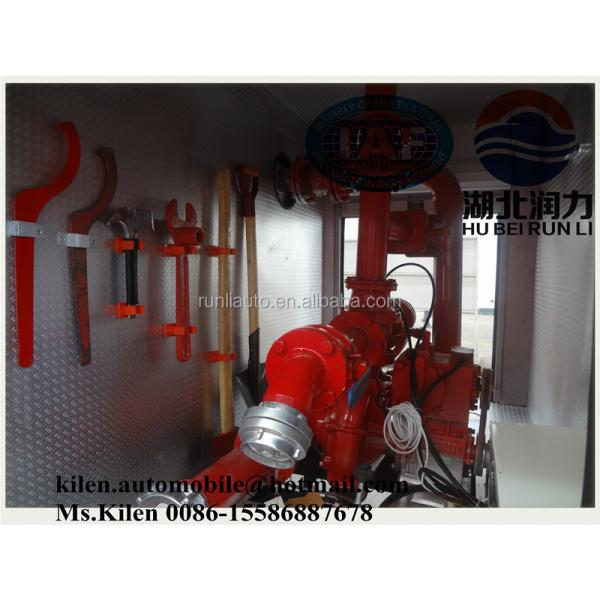

Water/Foam Fire Truck Tools and Accessories:

Dongfeng EQ1090 Fire Fighting Truck With Water Tank Euro 2 4X2 Drive Wheel

Our products scope:

1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery.

We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..

If you have more requirment ,please kindly let Kilen Chen know
