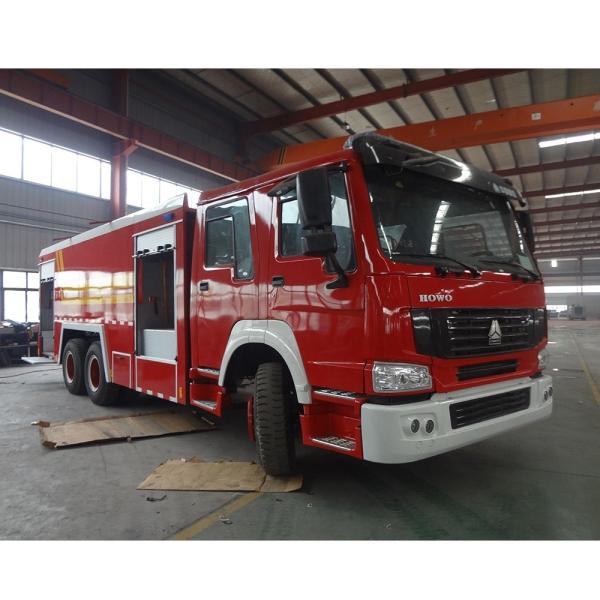

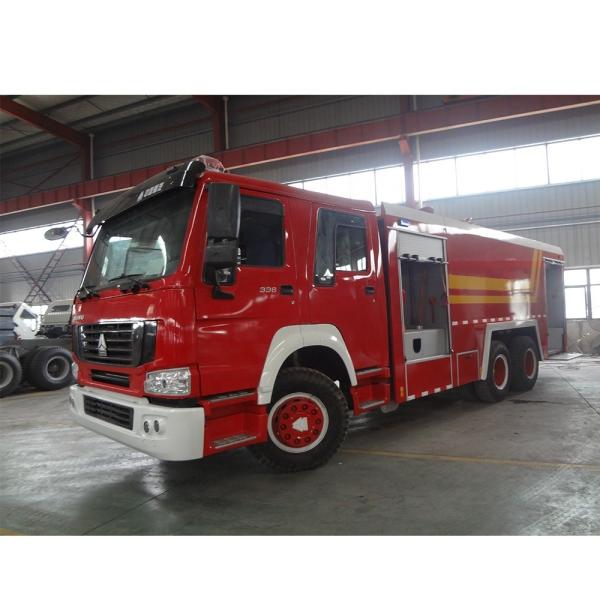

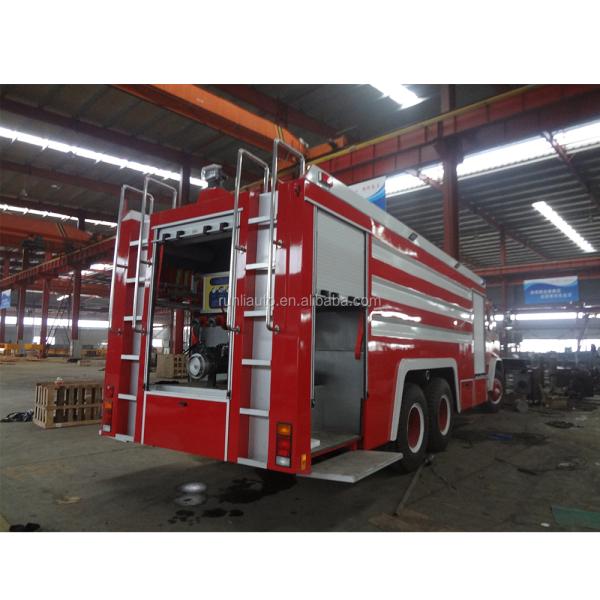

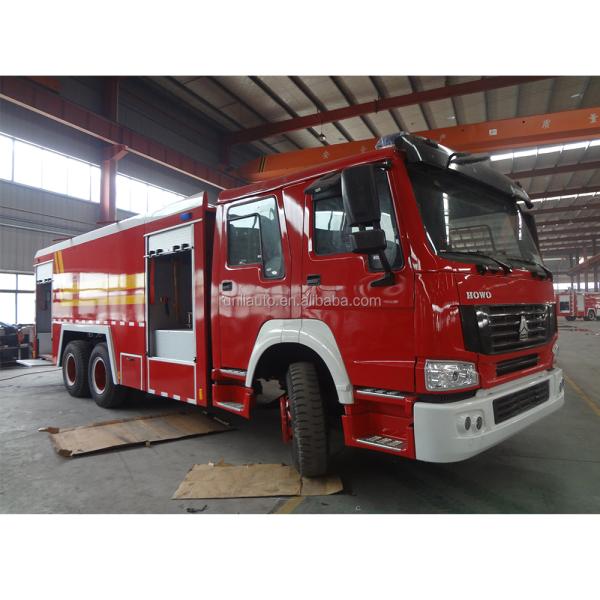

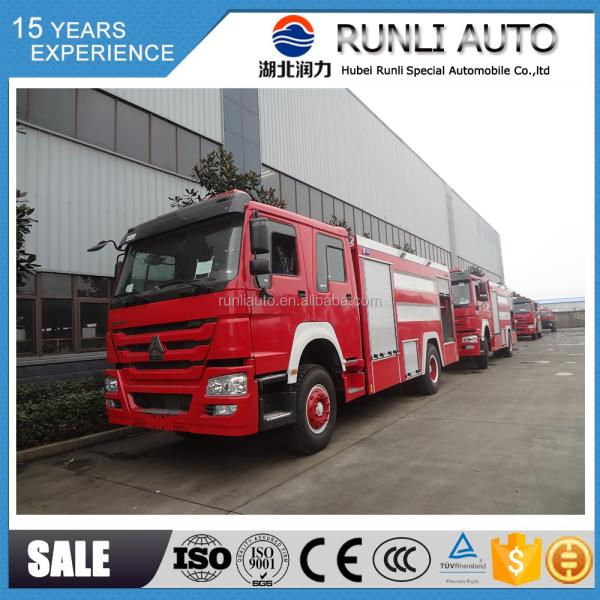

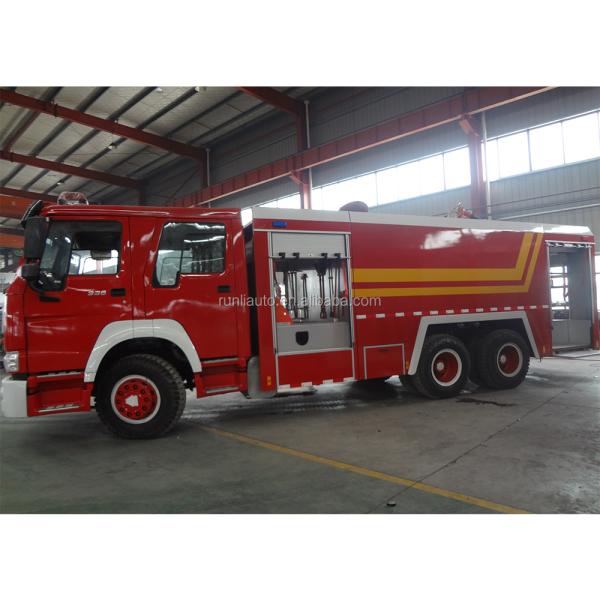

Manufacture SINOTRUK fire truck 4x2 8000L double cab fire truck

Chassis

Model:ZZ1257

Driving system : 6x4

Wheel base : 4600mm+1350mm

Max speed: >90km/h

Engine: WD615.92E(266HP)—China National Heavy Duty Truck Group Co.,ltd

Emission standard: Euro 3

Overall dimension: 10025x2500x3600mm

Cabin

1, Right hand driving ,single cabin

2, Seats:7 persons including driver

3, Inner equipments; except the original equipment, we installed PTO switch, alarm switch, light switch. 4, Transmission: 8 forwards with 1 reverse. 8T front axle, 16T double rear axles. 11.00 nylon tire, chassis frame cross section 280mm double layer frame. Both major and minor spring are N type spring, with air brake, exhaust brake, power assistant, and air conditioner.

liquid tank

1, Total volume: 12000L. water tank 8000L, foam tank 2000L, dry powder tank 2000L

2, Material; high-quality and carbon steel, with anti-corrosion treatment.

3, configuration: steel welded, inner have baffle, foam tank have anti-corrosion treatment.

4. Other equipment; manhole, with quick lock and quick open device.

Anti-over-filled equipment

Vehicle Main Parameters:

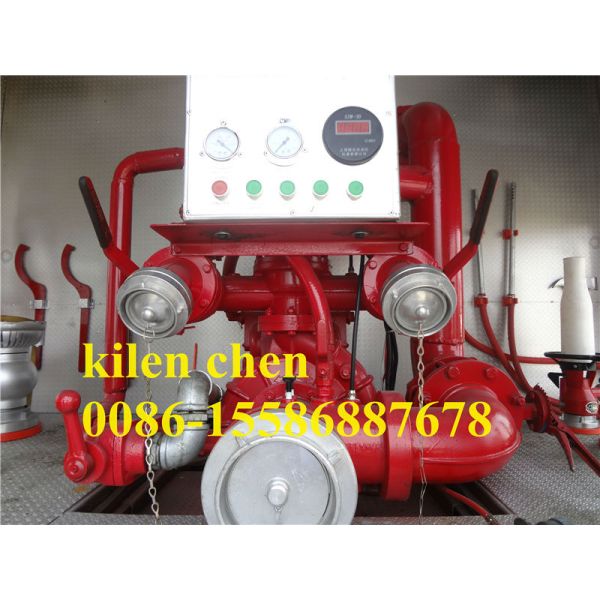

1, CB10/60 common pressure pump

Flow: low pressure 60L/s (medium pressure 20L/s)

Pressure; low pressure

1.0Mpa (medium pressure 2.0Mpa)

2900r/min. Revolution speed; 2900r/min

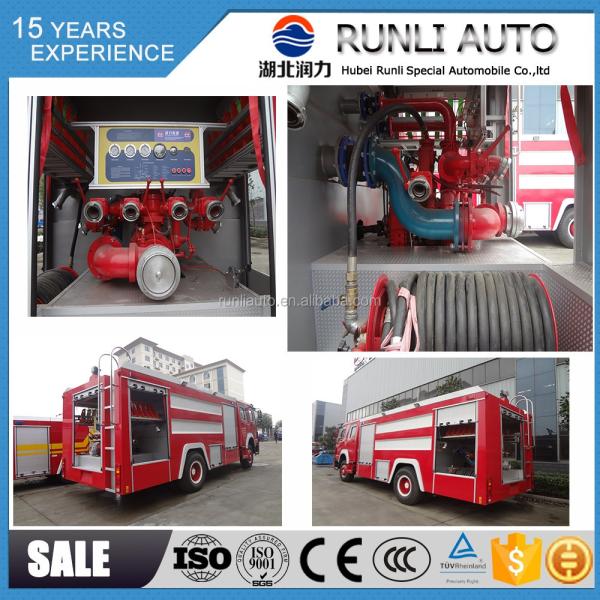

2, instation: rear of the truck

Water suction line; water pump with 125mm intake valve, can intake water from natural source or other liquid tanks.

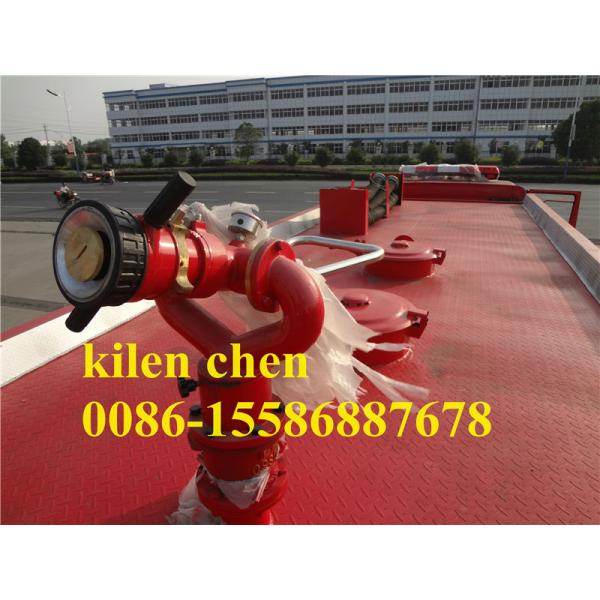

Outlet waterline: both sides have one medium pressure water outlet, on top of the tank have one water deluge pipeline with diameter no less than 80mm.

Water intake line; at rear of the water tank, can pump water inside tank directly.

Release water line: all water pipe line equipped with release water line and ball valves to ensure the water tank not over filled, to protect water pump and other valves.

Site photos:

Customers Visiting & Canton Fair

Factory Ability Show :

Water/Foam Fire Truck Tools and Accessories:

Company Certification:

Our products scope:

1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery.

We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..

If you have more requirment ,please kindly let Kilen Chen know
