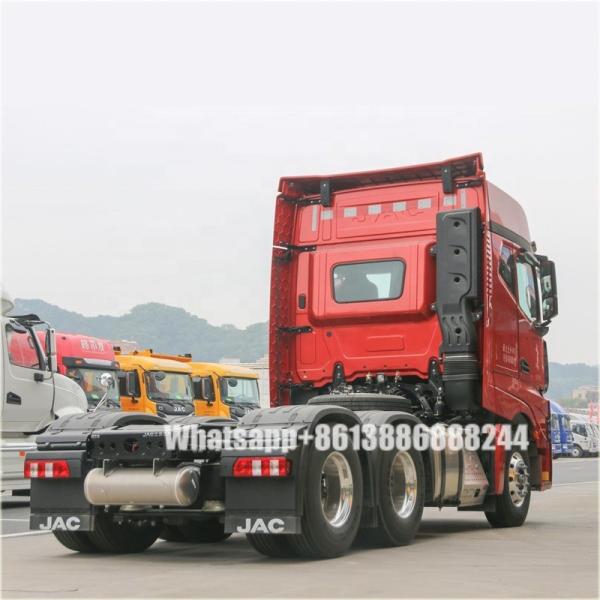

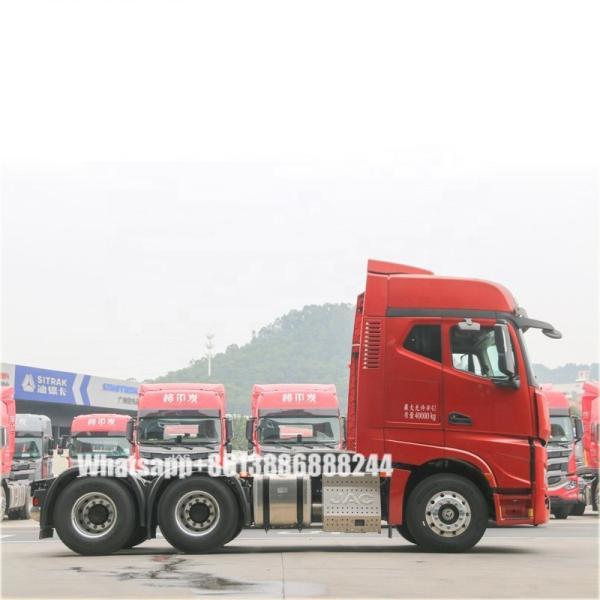

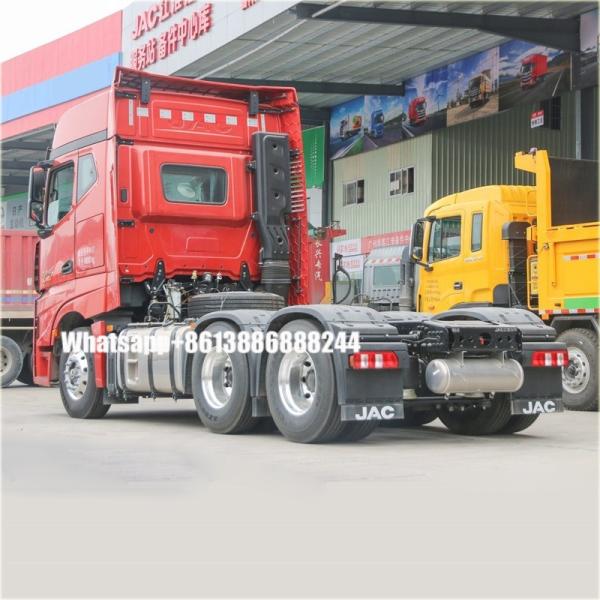

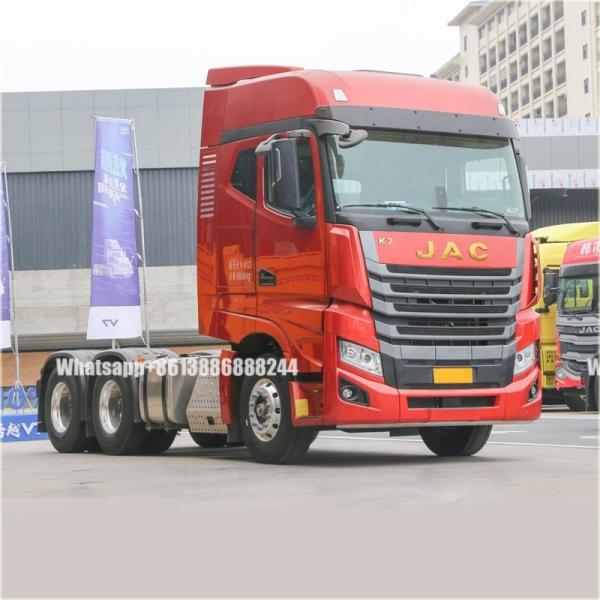

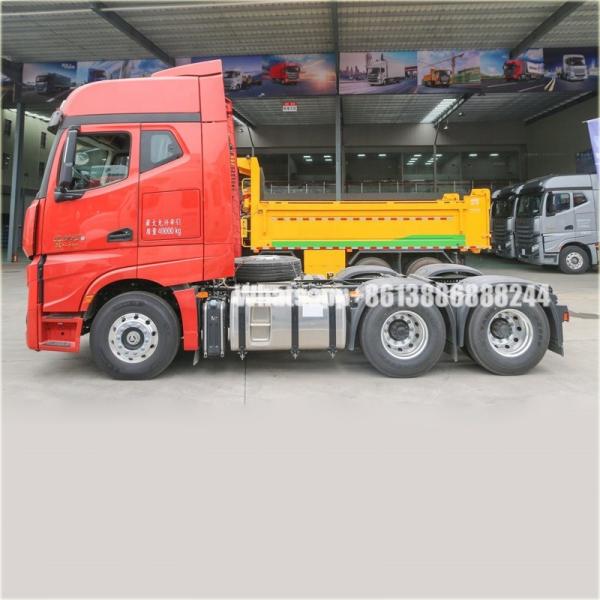

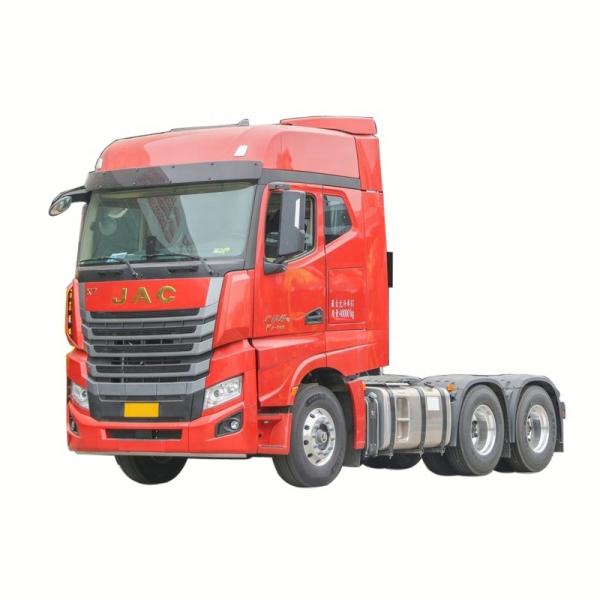

JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine
Specifications
Condition :
New
Steering :
Left
Horsepower :
> 450hp
Emission Standard :
Euro 6
Brand Name :
JAC
Segement :
Heavy truck
Market Segement :
Logistics transportation
Fuel Type :
Diesel
Cylinders :
6
Forward Shift Number :
12
Maximum Torque(Nm) :
1000-1500Nm
Gross Vehicle Weight :
>=30000 kg
Drive Wheel :
6x4
Passengers :
2
Seat Rows :
Half a row
Rear Camera :
Camera
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
Yes
Touch Screen :
None
Air Conditioner :
Automatic
Tire Number :
10
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
Color :
Customer's Requirement
Steering wheel position :
Customer's Requirement
MOQ :
2 units
Price :
CN¥253,074.50/units 2-17 units
Description

JAC 6X4 Automatic Traction Engine Tow Tractor Hauling Machine

Driving form: 6X4
Wheelbase: 3300+1350mm
Engine: Dongfeng Cummins Z14NS6B560
Gearbox: Zf 12TX2621TD
Rear axle speed ratio: 2.64
Body length: 7.18 m
Body width: 2.55 m
Body height: 3.98 m
Front wheel base: 2080mm
Rear wheel base: 1860/1860mm
Vehicle weight: 8.8 tons
Total mass: 25 tons
Total traction mass: 40 tons
Maximum speed: 100km/h
Minimum turning diameter: 18 meters
Market segments: Logistics distribution
Note: Lane departure warning, stability control, fatigue detection, electronic parking,
Engine type: Dongfeng Cummins Z14NS6B560
Engine brand: Dongfeng Cummins
Number of cylinders: 6-cylinder
Fuel Type: Diesel oil
Cylinder arrangement: orthostitial
Displacement: 13.48 L
Emission standard: euro6
Maximum horsepower: 560 horsepower
Maximum output power: 418kW
Maximum torque: 2650N·m
Maximum torque speed: 900-1400rpm
Rated speed: 1800rpm
Cab: High top and flat floor
Lower berth width: 880mm
Number of permitted passengers: Two people
Number of seats: Row half
Transmission model: Zf 12TX2621TD
Shift mode: AMT hands are one
Forward gear: 12th speed
Number of reversals: two
Front axle allowable load: 7000kg
Rear axle allowable load: 18000(two-axis group)kg
Speed Ratio: 2.64
Suspension form: Air suspension
Number of spring pieces: 2/2 + - + - / 2
Number of tires: ten
Tire Specifications: 295/80R22.5 18PR
ABS Anti-lock: Yes.
EBS Electronic Braking System: Yes.
